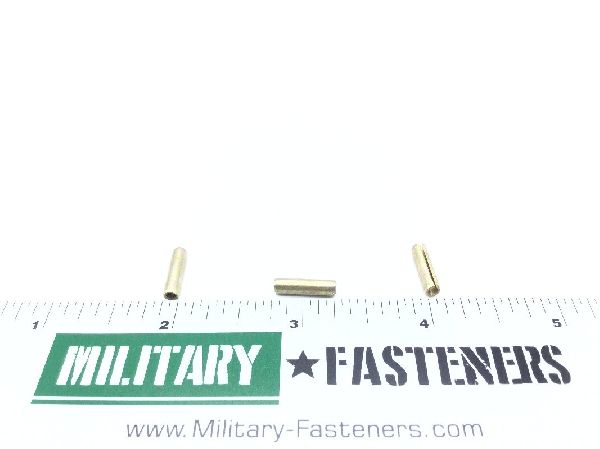

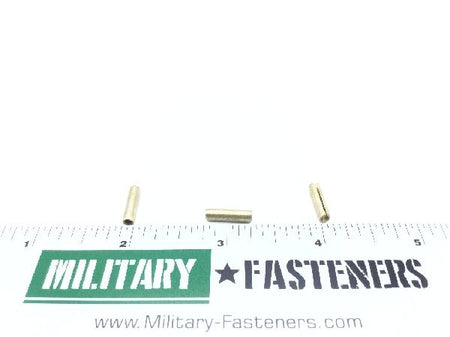

MS16562-33 Spring Pin

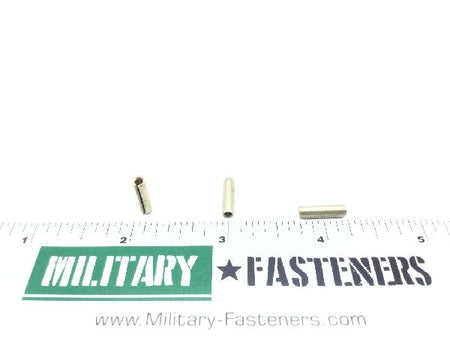

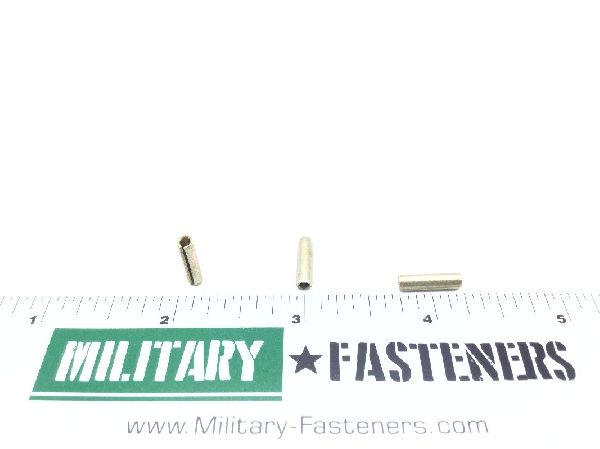

MS16562-33 Spring Pin (2)

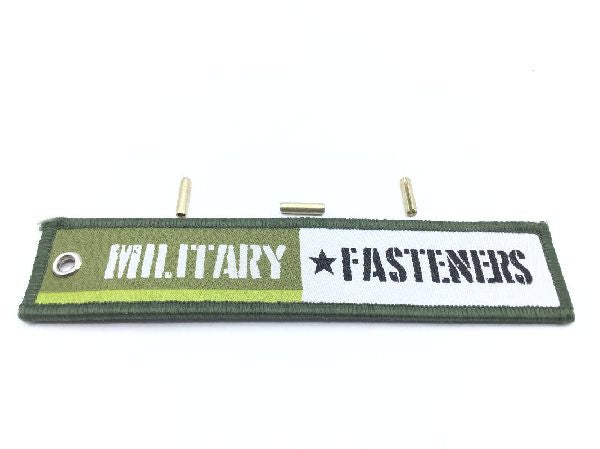

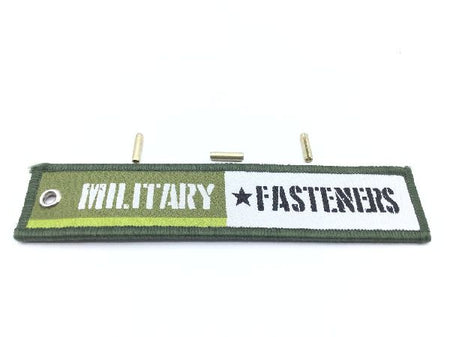

MS16562-33 Spring Pin (3)
MS16562-33 Spring Pin (4)

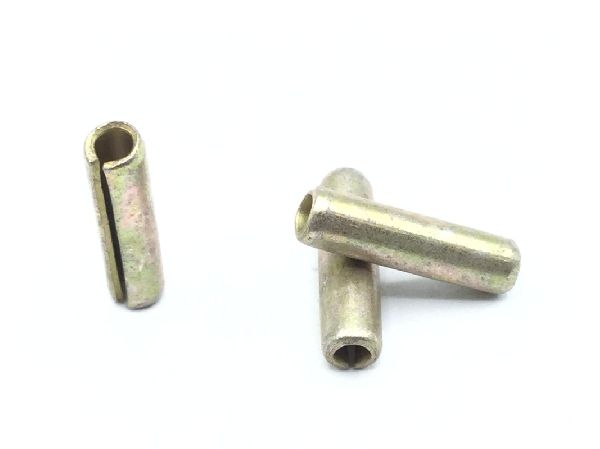

MS16562-33 Spring Pin (5)

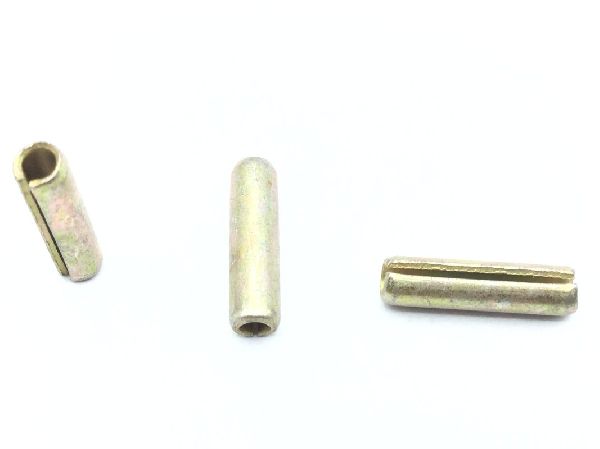

MS16562-33 Spring Pin (6)
MS16562-33 Spring Pin
MS16562-33 Spring Pin (2)
MS16562-33 Spring Pin (3)
MS16562-33 Spring Pin (4)
MS16562-33 Spring Pin (5)
MS16562-33 Spring Pin (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS16562-33 Spring Pin

Product Series
MS
ECCN
EAR99
Schedule
7320.20.5060
Price per Unit $1.11
Units per Pack 25
Price per Pack $27.75
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:
Total Packs 1
Total Price $27.75
Add item to quote
Material
Steel comp 1070 or steel comp 1074 or steel comp 1080 or steel comp 1086 or steel comp 1095
Overall Length
Between 0.485 inches and 0.515 inches
Surface Treatment
Ty2 cl2 federal specification single treatment response qq-p-416
Hardness Rating
46.0 rockwell c and 53.0 rockwell c
Material Specification
66 federal standard all material responses
Material Thickness
0.028 inches
Shear Strength
2100 double pound
Style Designator
Slotted
Diameter
Between 0.131 inches and 0.135 inches
