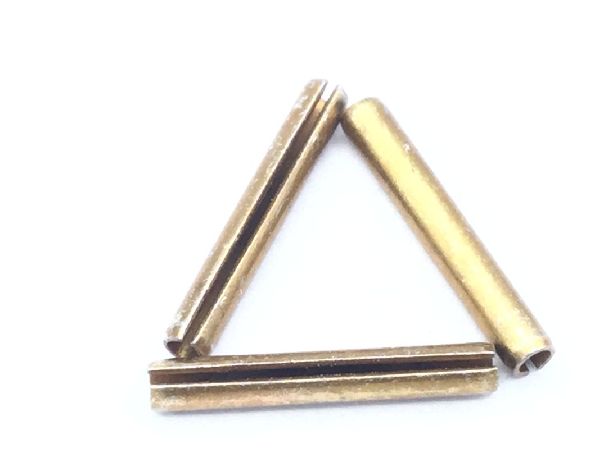

MS16562-5 Spring Pin
MS16562-5 Spring Pin (2)

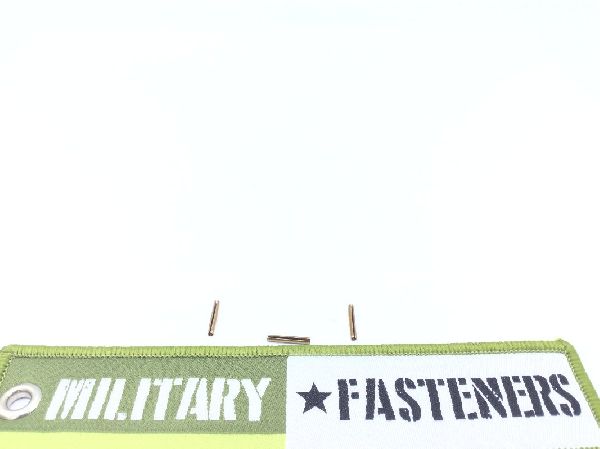

MS16562-5 Spring Pin (3)

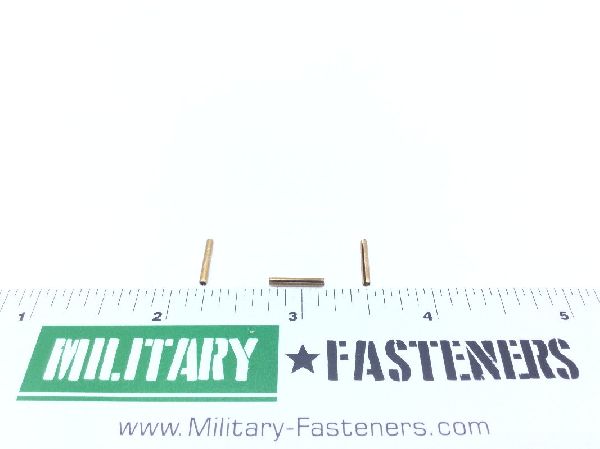

MS16562-5 Spring Pin (4)
MS16562-5 Spring Pin
MS16562-5 Spring Pin (2)
MS16562-5 Spring Pin (3)
MS16562-5 Spring Pin (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS16562-5 Spring Pin

Product Series
MS
ECCN
EAR99
Schedule
7318.29.0000
Price per Unit $0.39
Units per Pack 100
Price per Pack $39.00
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:
Total Packs 1
Total Price $39.00
Add item to quote
Material
Steel comp
Overall Length
Between 0.423 inches and 0.453 inches
Surface Treatment
Ty2 cl2 federal specification single treatment response qq-p-416
Hardness Rating
46.0 rockwell c and 53.0 rockwell c
Material Specification
66 federal standard all material responses
Material Thickness
0.012 inches
Shear Strength
425 double pound
Style Designator
Slotted
Diameter
0.062 inches
