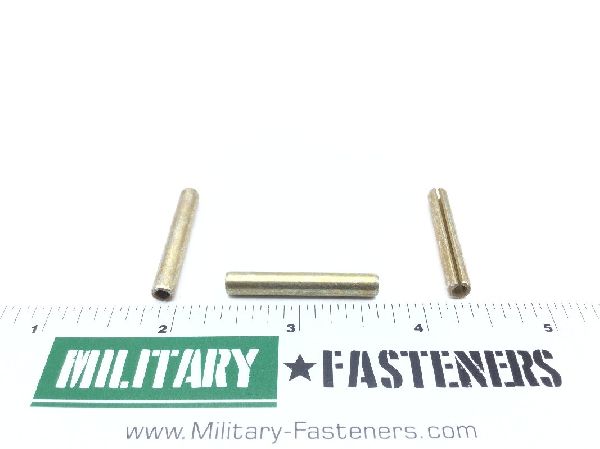

MS16562-51 Spring Pin

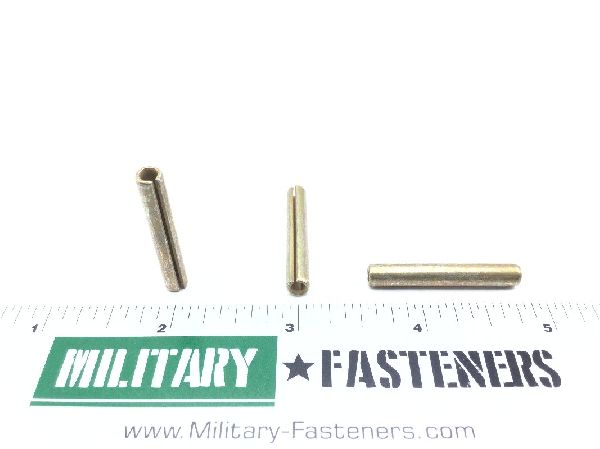

MS16562-51 Spring Pin (2)

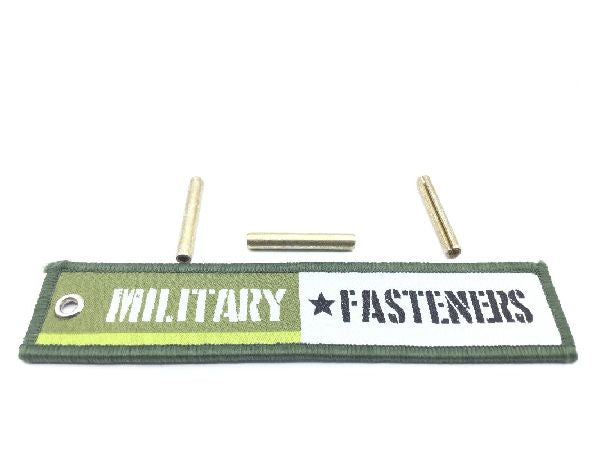

MS16562-51 Spring Pin (3)
MS16562-51 Spring Pin (4)

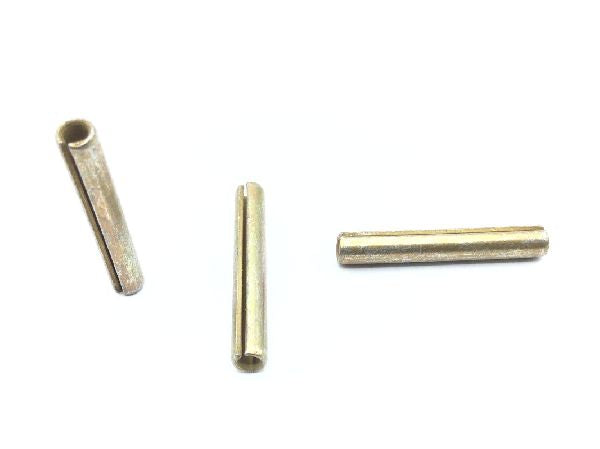

MS16562-51 Spring Pin (5)

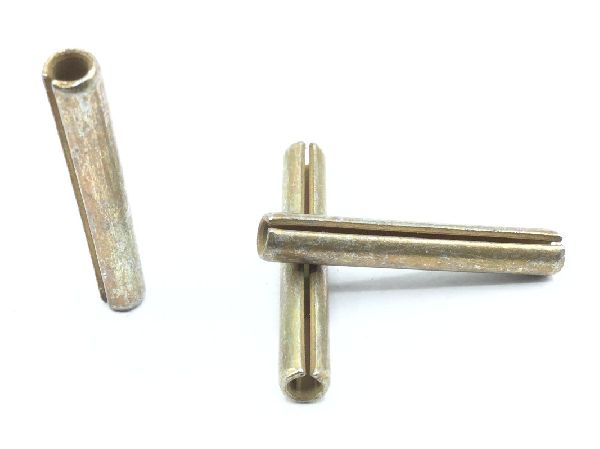

MS16562-51 Spring Pin (6)
MS16562-51 Spring Pin
MS16562-51 Spring Pin (2)
MS16562-51 Spring Pin (3)
MS16562-51 Spring Pin (4)
MS16562-51 Spring Pin (5)
MS16562-51 Spring Pin (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS16562-51 Spring Pin

Product Series
MS
ECCN
EAR99
Schedule
7318.29.0000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel
Overall Length
Between 1.230 inches and 1.270 inches
Hardness Rating
46.0 rockwell c and 53.0 rockwell c
Material Specification
Comp 1070 thru 1095 federal standard single material response 66
Material Thickness
0.040 inches
Style Designator
Slotted
Diameter
Between 0.194 inches and 0.199 inches
