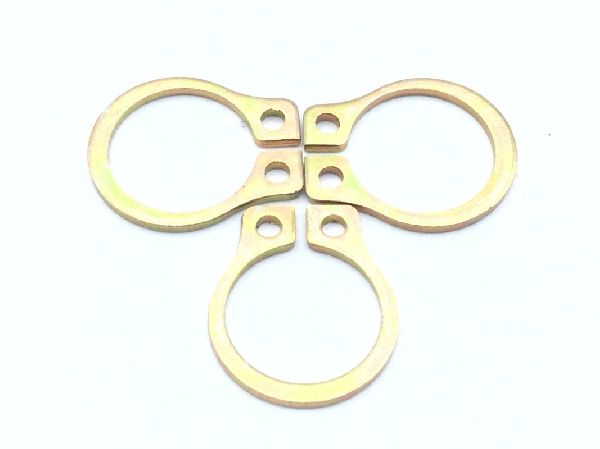

MS16624-1031 Retaining Ring

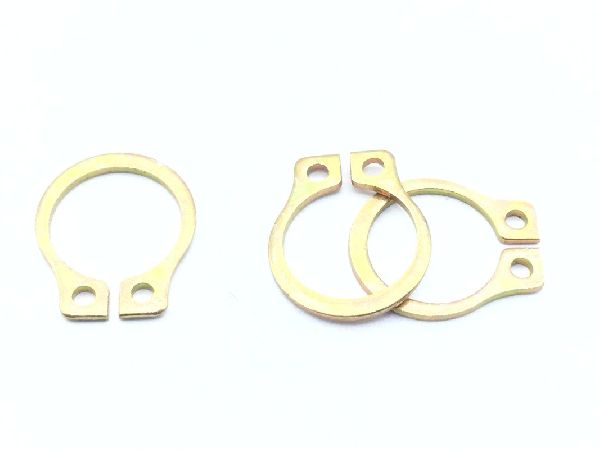

MS16624-1031 Retaining Ring (2)

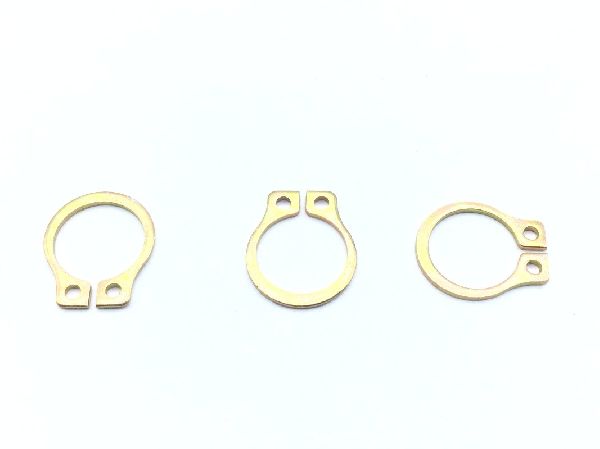

MS16624-1031 Retaining Ring (3)

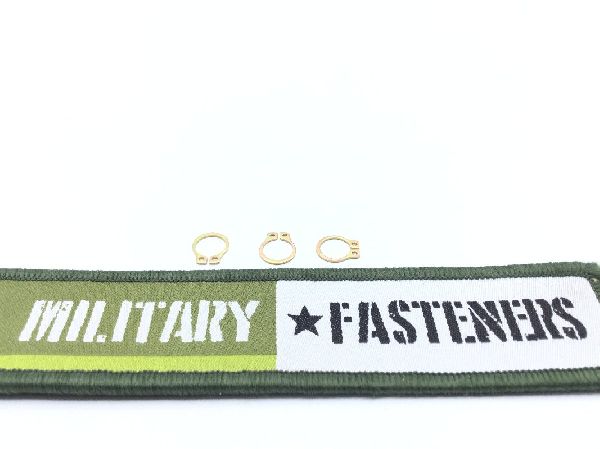

MS16624-1031 Retaining Ring (4)

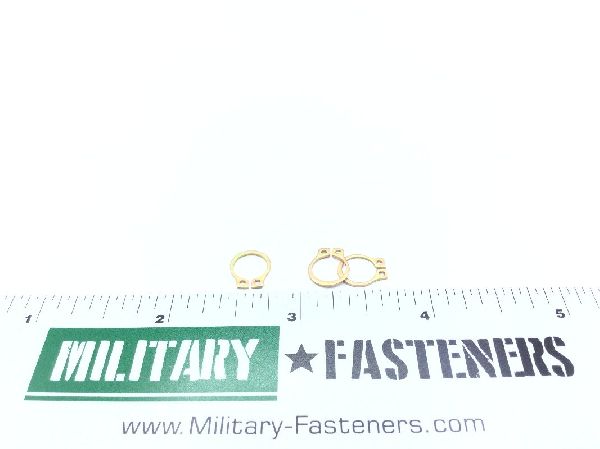

MS16624-1031 Retaining Ring (5)

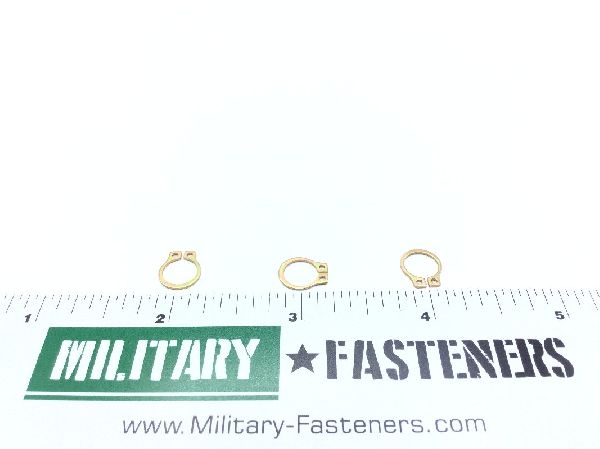

MS16624-1031 Retaining Ring (6)
MS16624-1031 Retaining Ring
MS16624-1031 Retaining Ring (2)
MS16624-1031 Retaining Ring (3)
MS16624-1031 Retaining Ring (4)
MS16624-1031 Retaining Ring (5)
MS16624-1031 Retaining Ring (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS16624-1031 Retaining Ring

NSN
5325-00-803-7313
Product Series
MS
ECCN
EAR99
Schedule
7318.24.0000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Fed standard 66 aisi 1066 or 1069 or 1070 or 1072 or 1074 or 1075 or 1078 or 1080 or 1084 or 1086 or 1090 steel
Casehardening Indicator
Not casehardened
Cross Sectional Shape
Rectangular
Inside Diameter
Between 0.276 inches and 0.283 inches
Major Thickness
Between 0.023 inches and 0.027 inches
Material Hardness Rating
Between 69.5 rockwell superficial 30-n and 73.0 rockwell superficial 30-n
Ring Style
External
Usage Design
External
