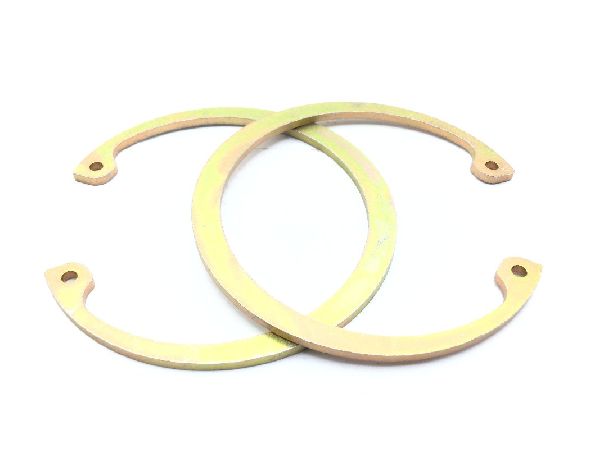

MS16625-1231 Retaining Ring

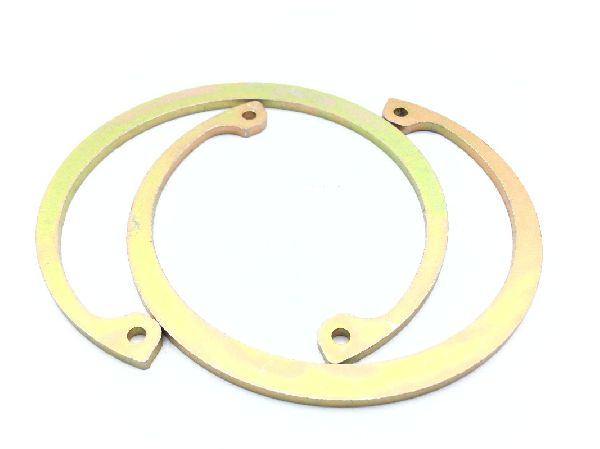

MS16625-1231 Retaining Ring (2)

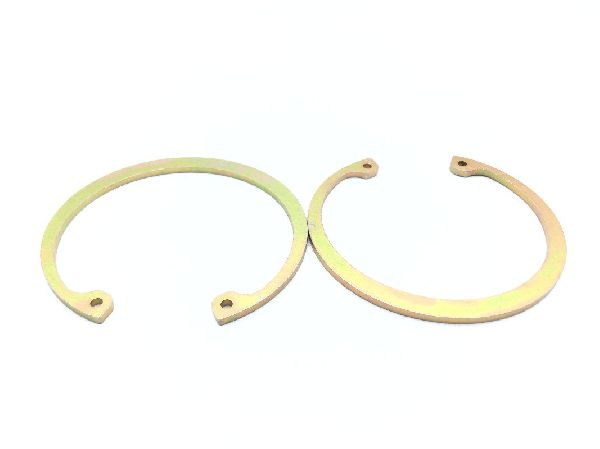

MS16625-1231 Retaining Ring (3)

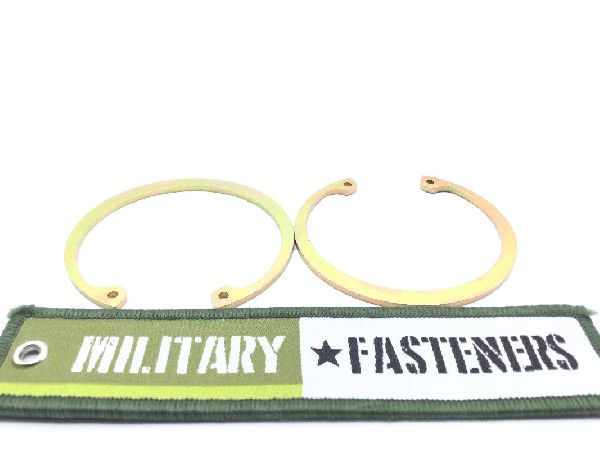

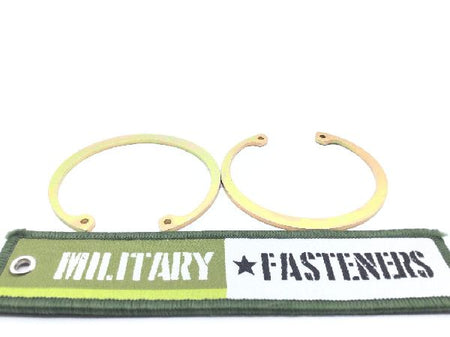

MS16625-1231 Retaining Ring (4)

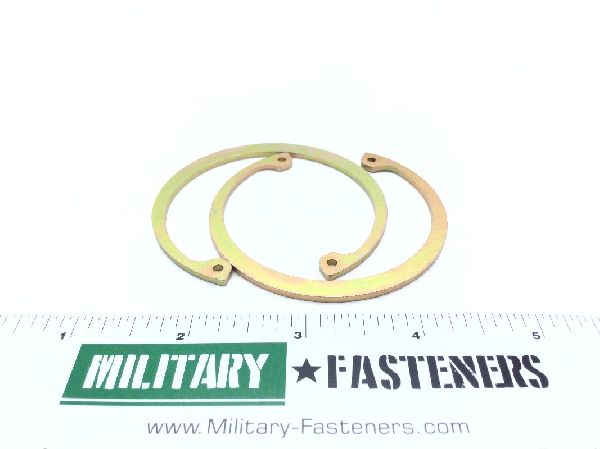

MS16625-1231 Retaining Ring (5)

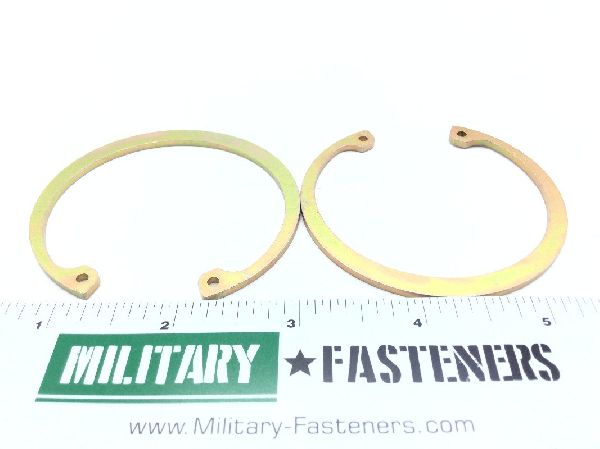

MS16625-1231 Retaining Ring (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS16625-1231 Retaining Ring

Product Series: MS
ECCN: EAR99
Schedule: 7318.24.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Fed standard 66 aisi 1066 or 1069 or 1070 or 1072 or 1074 or 1075 or 1078 or 1080 or 1084 or 1086 or 1090 steel

Casehardening Indicator: Not casehardened
Cross Sectional Shape: Rectangular
Major Thickness: Between 0.075 inches and 0.081 inches
Material Hardness Rating: Between 47.0 rockwell c and 52.0 rockwell c
Outside Diameter: Between 2.530 inches and 2.600 inches
Ring Style: Internal
Usage Design: Internal
