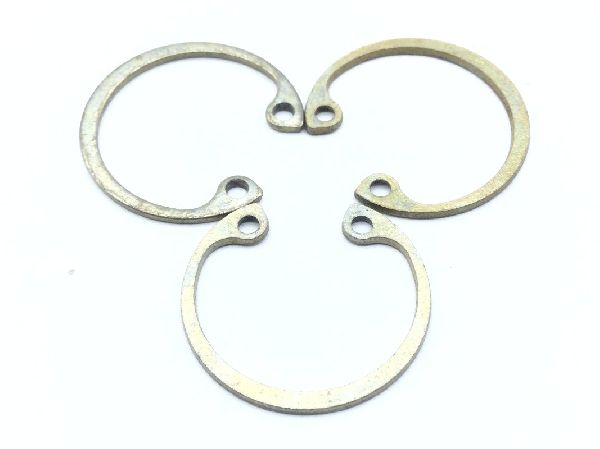

MS16625-2068 Retaining Ring

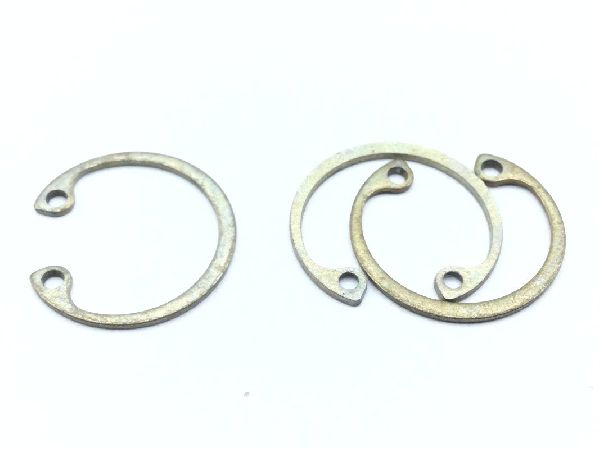

MS16625-2068 Retaining Ring (2)

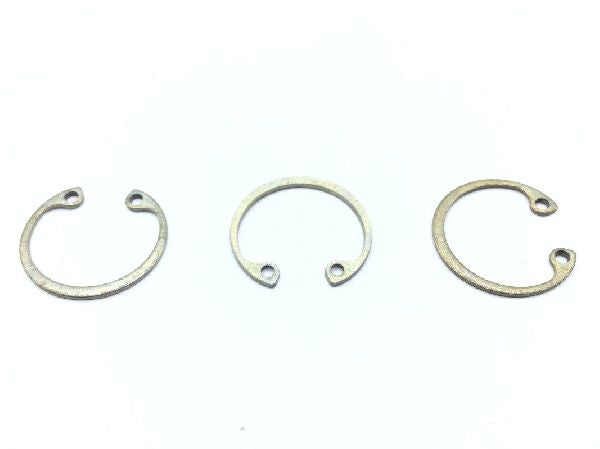

MS16625-2068 Retaining Ring (3)

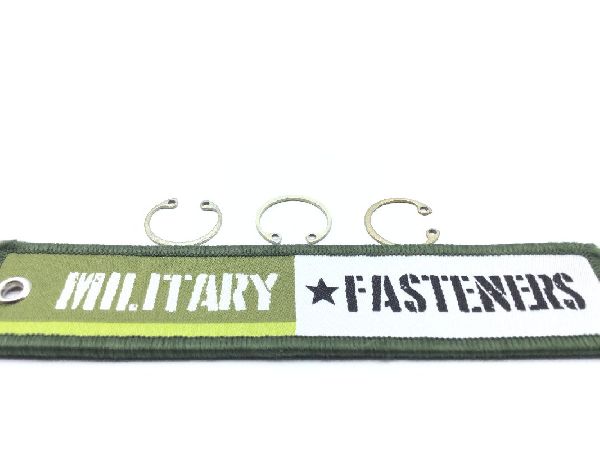

MS16625-2068 Retaining Ring (4)

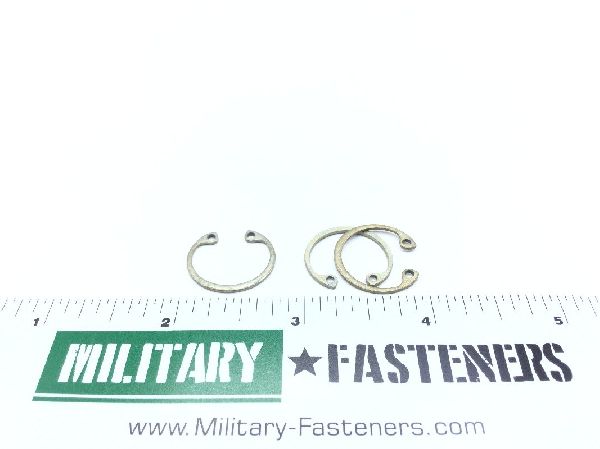

MS16625-2068 Retaining Ring (5)

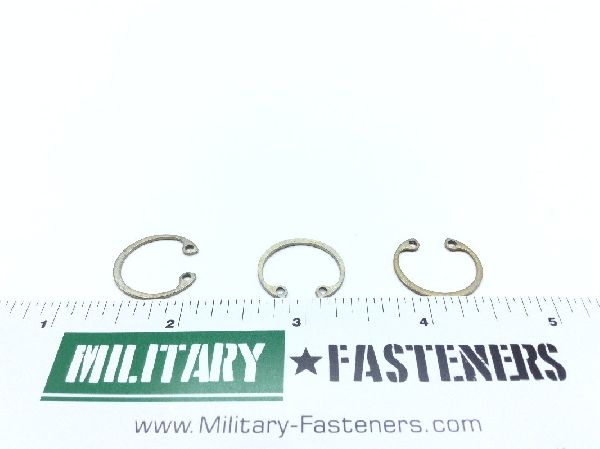

MS16625-2068 Retaining Ring (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS16625-2068 Retaining Ring

Product Series: MS
ECCN: EAR99
Schedule: 7318.24.0000

Price per Unit $0.42

Units per Pack 100

Price per Pack $42.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $42.00

Add item to quote

Material

comp 1090 federal standard 66 comp 1086 or steel federal standard 66 comp 1085 or steel federal standard 66 comp 1084 or steel federal standard 66 comp 1080 or steel federal standard 66 comp 1078 or steel federal standard 66 comp 1075 or

Casehardening Indicator: Not casehardened
Cross Sectional Shape: Rectangular
Major Thickness: Between 0.033 inches and 0.037 inches
Material Hardness Rating: Between 67.5 rockwell superficial 30-n and 72.0 rockwell superficial 30-n
Outside Diameter: Between 0.758 inches and 0.773 inches
Ring Style: Internal
Usage Design: Internal
