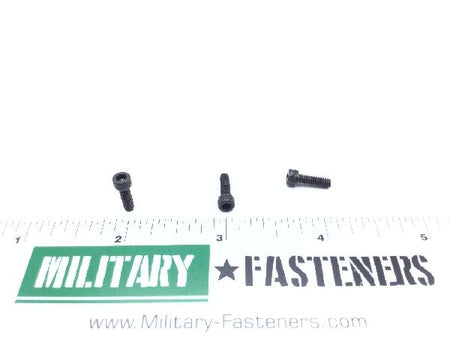

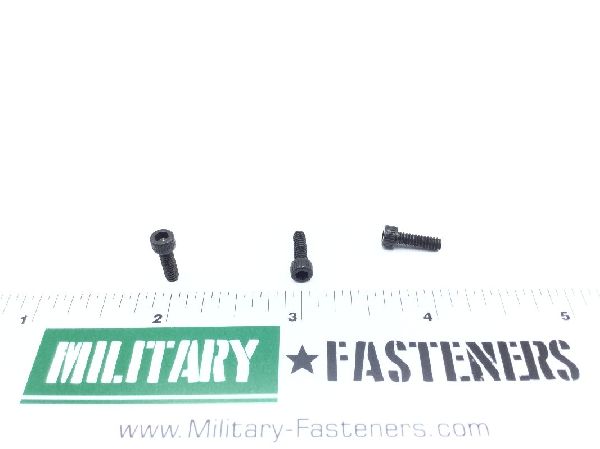

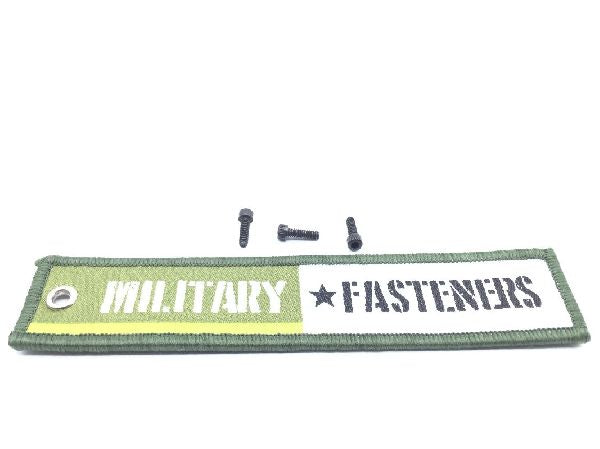

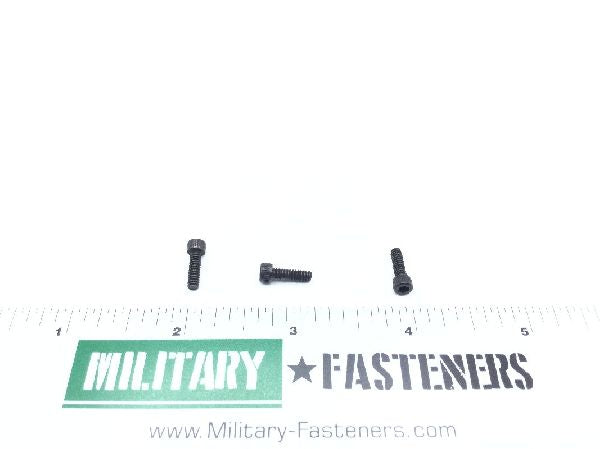

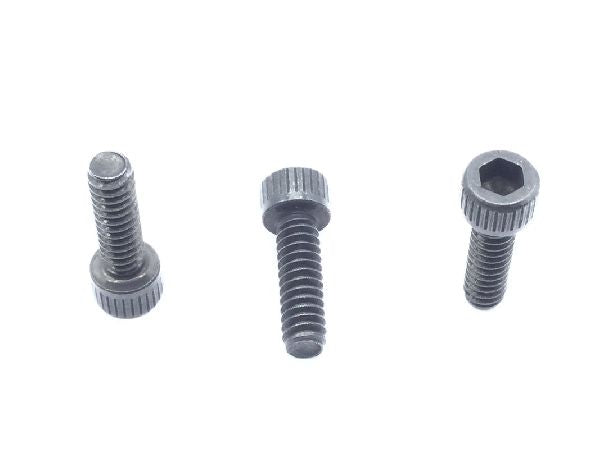

MS16995-10B Socket Head Cap Screws

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.62

Units per Pack 25

Price per Pack $40.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $40.50

Add item to quote

Head Style

Flat chamfer

Material

Steel

Surface Treatment

Type 4 military specification single treatment response mil-c-13924

Thread Class

Fastener Length: Between 0.345 inches and 0.375 inches
Hardness Rating: 80.0 rockwell b
Head Height: Between 0.108 inches and 0.112 inches
Internal Drive Style: Hexagon
Material Specification: 66 federal standard all material responses
Min. Tensile Strength (psi): 80000 pounds per square inch
Minimum Yield Strength: 30000 pounds per square inch
Nondefinitive Specification/std Data: 6 type
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.295 inches and 0.375 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unc (coarse thread)
Width Across Flats: Between 0.094 inches and 0.095 inches
Head Diameter: Between 0.176 inches and 0.183 inches
