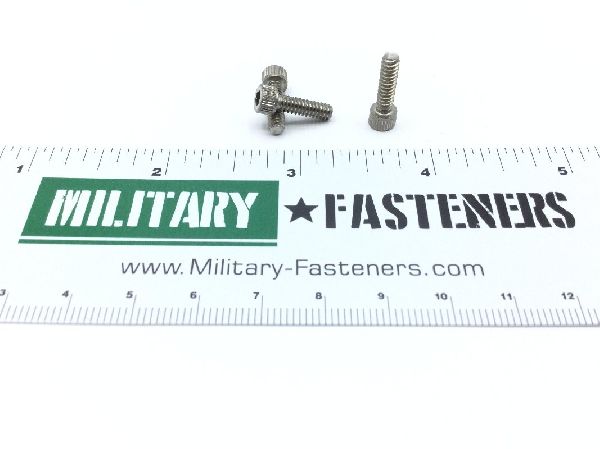

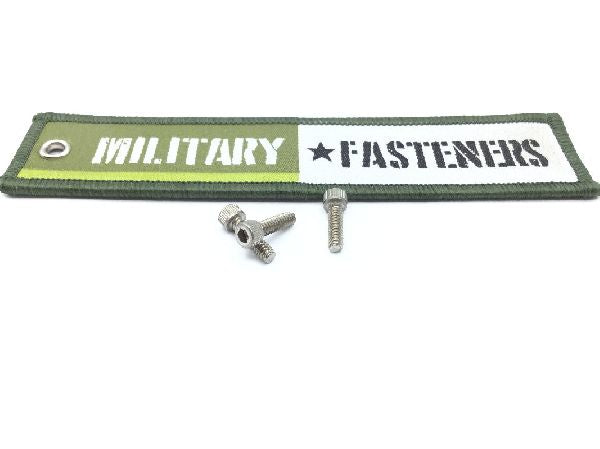

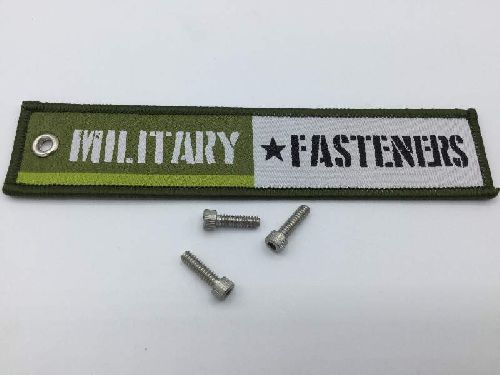

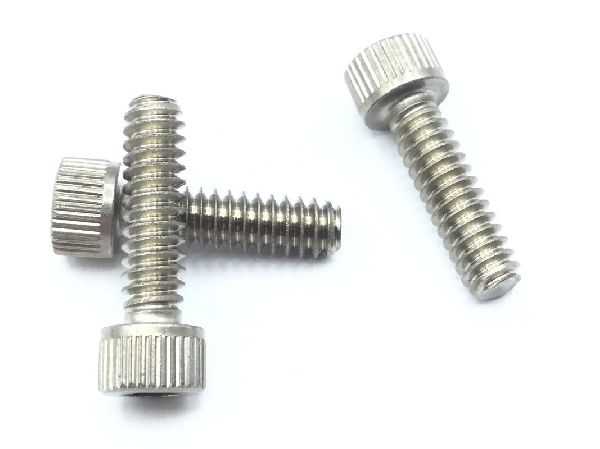

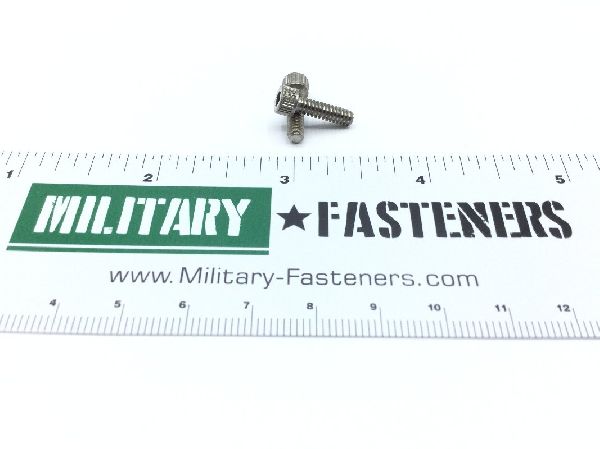

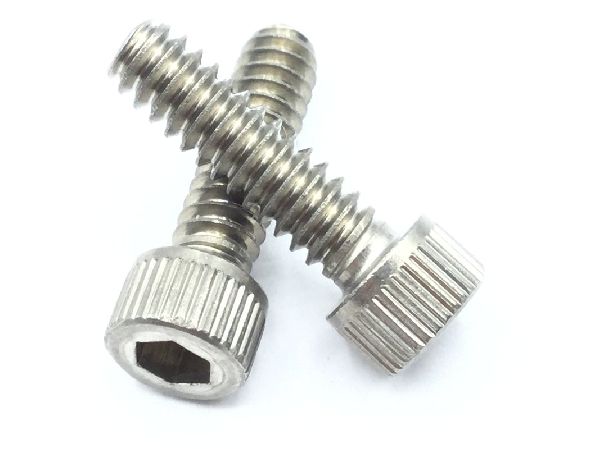

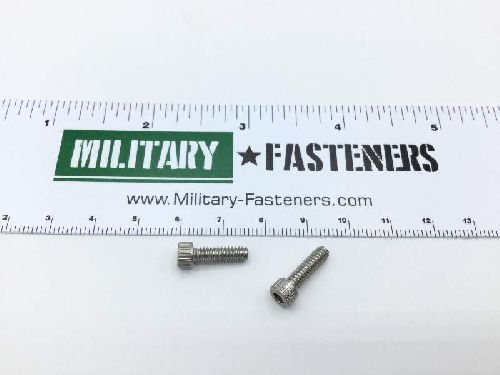

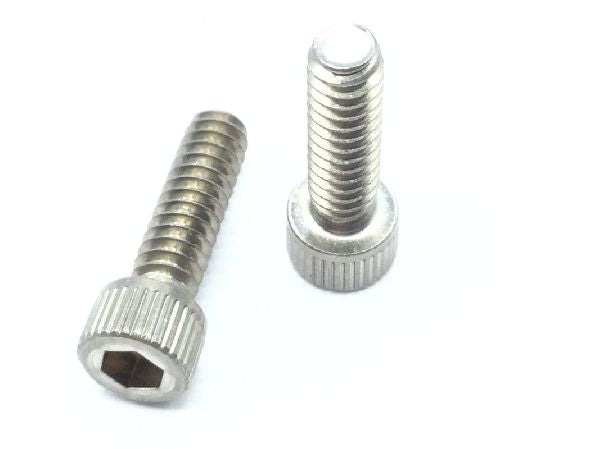

MS16995-18 Socket Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.38

Units per Pack 100

Price per Pack $38.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $38.00

Add item to quote

Head Style

Flat chamfer

Material

Steel comp 304

Thread Class

Thread Quantity Per Inch (tpi)

Departure From Cited Designator: As modified by condition a
Departure From Cited Document: As modified by material
Fastener Length: Between 0.47 inches and 0.50 inches
Hardness Rating: 35.0 rockwell c and 36.0 rockwell c
Head Height: Between 0.134 inches and 0.138 inches
Internal Drive Style: Hexagon
Material Specification: Qq-s-763 federal specification single material response
Min. Tensile Strength (psi): 80000 pounds per square inch
Minimum Yield Strength: 30000 pounds per square inch
Nondefinitive Specification/std Data: 6 type
Test Data Document: Etc.). individual manufactureer standards etc.). or 80205-ms16995-18 standard (includes industry or association standards
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 0.403 inches and 0.500 inches
Thread Series Designator: Unc (coarse thread)
Width Across Flats: Between 0.109 inches and 0.111 inches
Head Diameter: Between 0.218 inches and 0.226 inches
