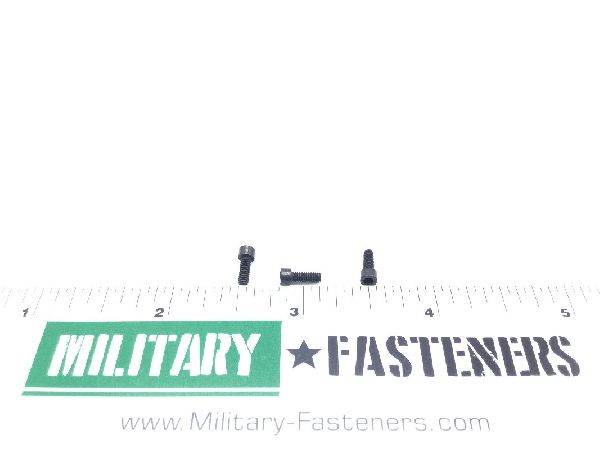

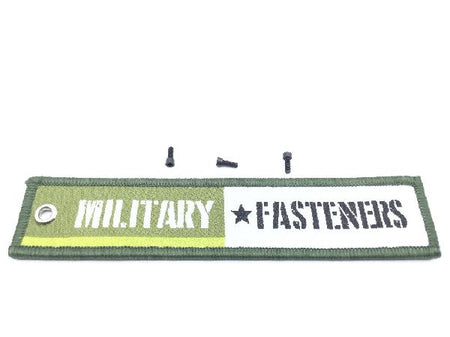

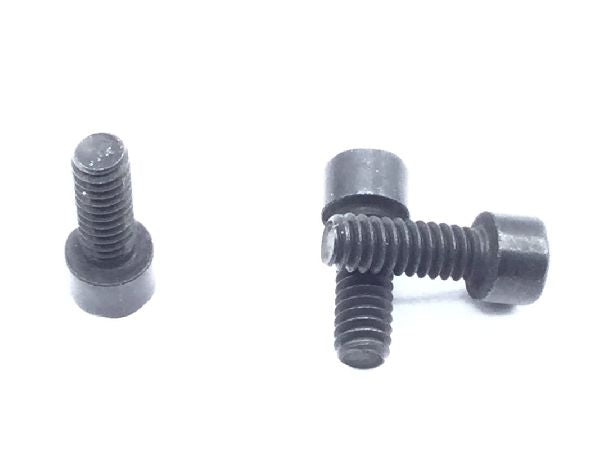

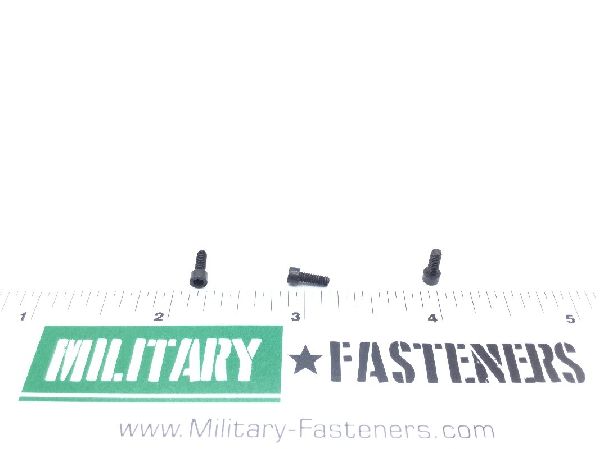

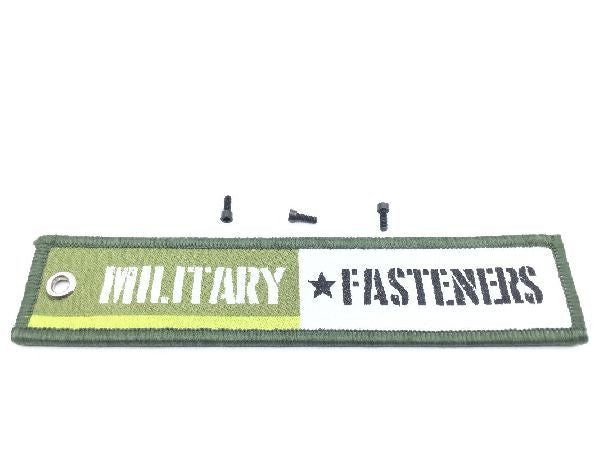

MS16995-2B Socket Head Cap Screw
MS16995-2B Socket Head Cap Screw (2)
MS16995-2B Socket Head Cap Screw (3)
MS16995-2B Socket Head Cap Screw (4)
MS16995-2B Socket Head Cap Screw (5)
MS16995-2B Socket Head Cap Screw (6)
MS16995-2B Socket Head Cap Screw
MS16995-2B Socket Head Cap Screw (2)
MS16995-2B Socket Head Cap Screw (3)
MS16995-2B Socket Head Cap Screw (4)
MS16995-2B Socket Head Cap Screw (5)
MS16995-2B Socket Head Cap Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS16995-2B Socket Head Cap Screw

Product Series
MS
ECCN
EAR99
Schedule
7318.15.2091
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Flat chamfer
Material
Steel comp 302 or steel comp 303 or steel comp 304 or steel comp 305 or steel comp 316
Surface Treatment
Cl 4 military specification single treatment response mil-c-13924
Thread Class
3a
Thread Quantity Per Inch (tpi)
56
Fastener Length
Between 0.220 inches and 0.250 inches
Hardness Rating
80.0 rockwell b
Head Height
Between 0.083 inches and 0.086 inches
Internal Drive Style
Hexagon
Material Specification
66 federal standard all material responses
Min. Tensile Strength (psi)
80000 pounds per square inch
Minimum Yield Strength
30000 pounds per square inch
Nondefinitive Specification/std Data
6 type
Special Features
Color black
Thread Diameter
0.086 inches
Thread Direction
Right-hand
Thread Length
Between 0.184 inches and 0.250 inches
Thread Series Designator
Unc (coarse thread)
Width Across Flats
Between 0.078 inches and 0.079 inches
Head Diameter
Between 0.134 inches and 0.140 inches
