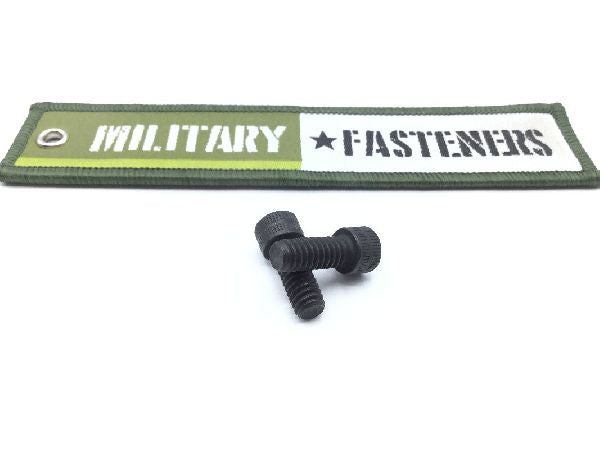

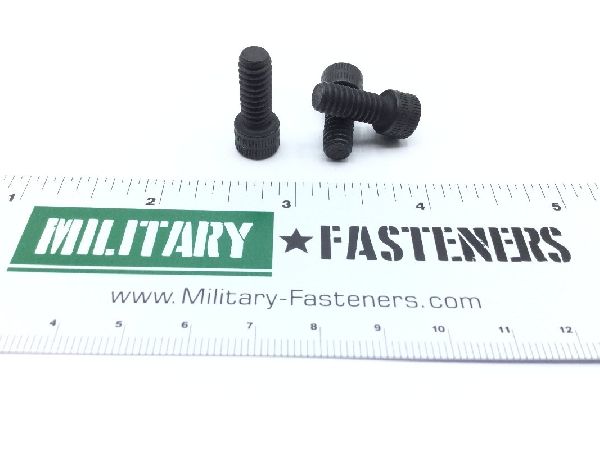

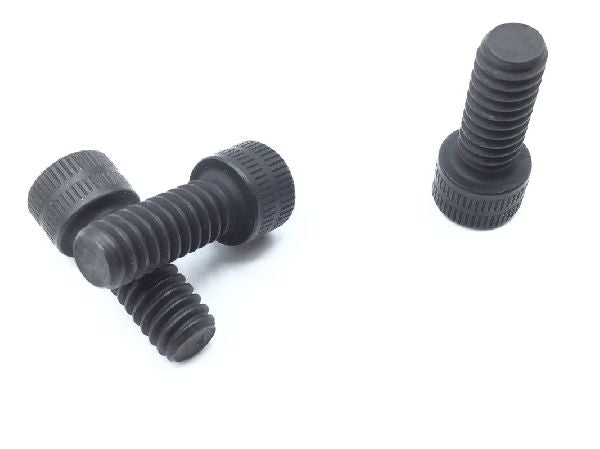

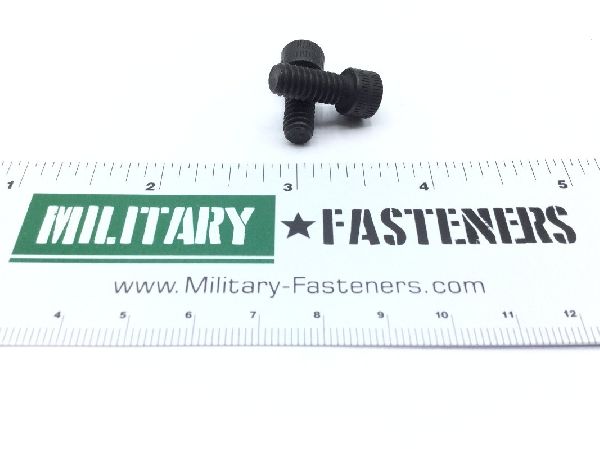

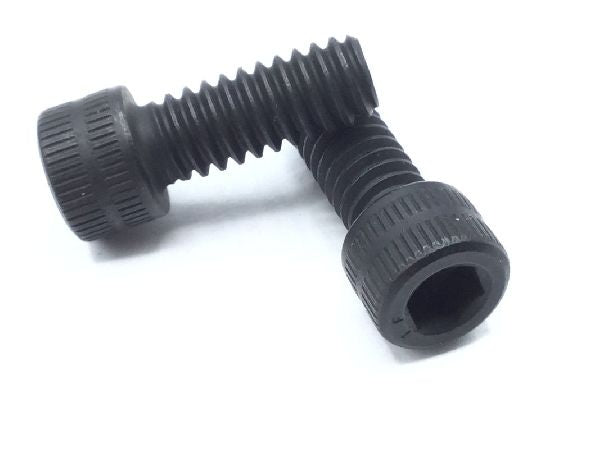

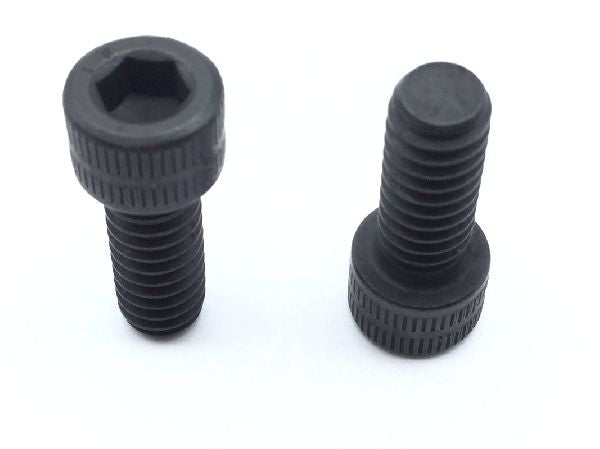

MS16995-49B Socket Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $9.01

Units per Pack 10

Price per Pack $90.10

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $90.10

Add item to quote

Head Style

Flat chamfer

Material

Steel comp 302 or steel comp 304 or steel comp 305 or steel comp 316 or steel comp 303 or steel comp 303se or steel comp 304l or steel comp 302b

Surface Treatment

Cl 4 military specification single treatment response mil-c-13924

Thread Class

Thread Quantity Per Inch (tpi)

Fastener Length: Between 0.595 inches and 0.625 inches
Hardness Rating: 80.0 rockwell b
Head Height: Between 0.244 inches and 0.250 inches
Internal Drive Style: Hexagon
Min. Tensile Strength (psi): 80000 pounds per square inch
Minimum Yield Strength: 30000 pounds per square inch
Nondefinitive Specification/std Data: 6 type
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.495 inches and 0.625 inches
Thread Series Designator: Unc (coarse thread)
Width Across Flats: Between 0.188 inches and 0.190 inches
Head Diameter: Between 0.365 inches and 0.375 inches
