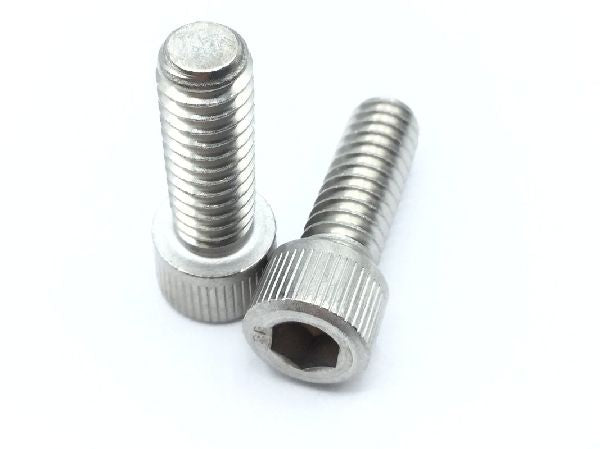

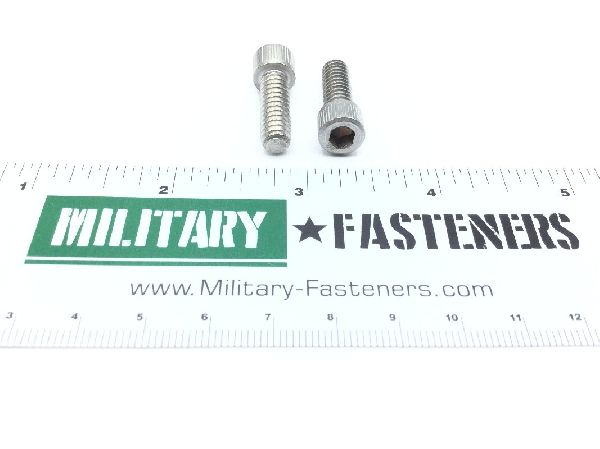

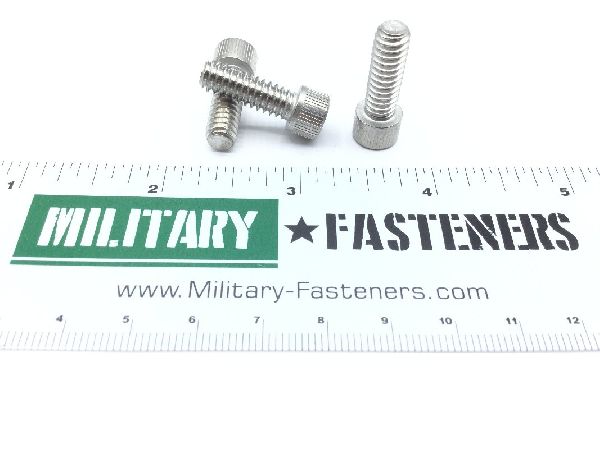

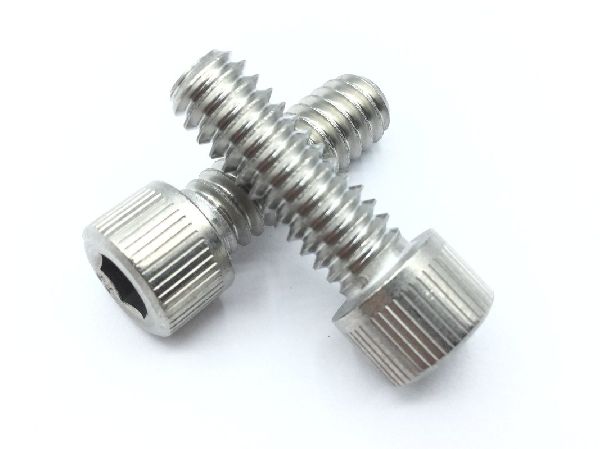

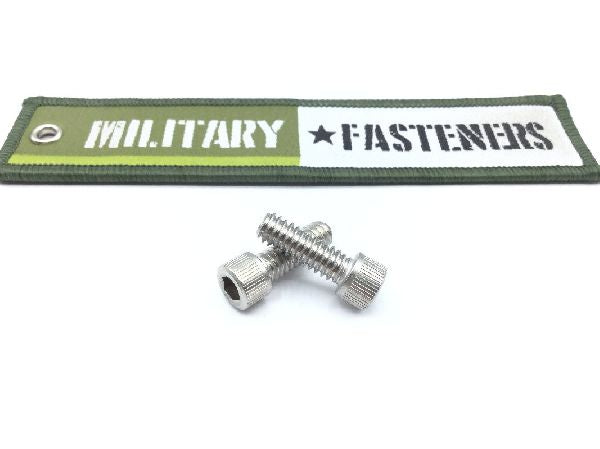

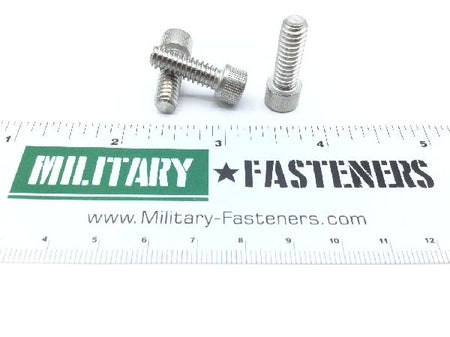

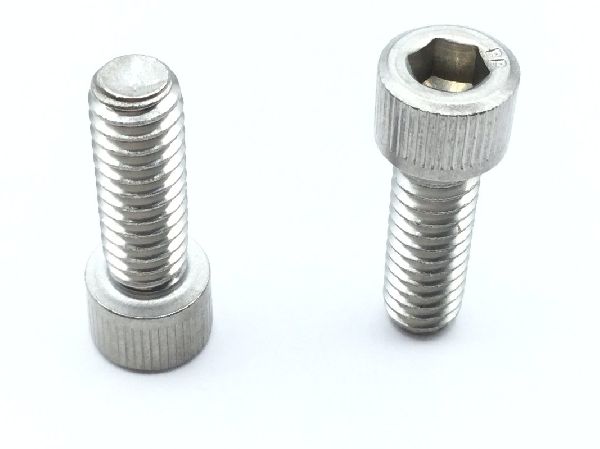

MS16995-50 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.58

Units per Pack 25

Price per Pack $39.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $39.50

Add item to quote

Head Style

Flat chamfer

Material

Steel

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Thread Quantity Per Inch (tpi)

End Application: Mrap rg-33 and rg-33 auv
Fastener Length: Between 0.720 inches and 0.750 inches
Hardness Rating: 80.0 rockwell b
Head Height: Between 0.244 inches and 0.250 inches
Internal Drive Style: Hexagon
Material Specification: 66 federal standard all material responses
Min. Tensile Strength (psi): 80000 pounds per square inch
Minimum Yield Strength: 30000 pounds per square inch
Nondefinitive Specification/std Data: 6 type
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.620 inches and 0.750 inches
Thread Series Designator: Unc (coarse thread)
Width Across Flats: Between 0.188 inches and 0.190 inches
Head Diameter: Between 0.365 inches and 0.375 inches
