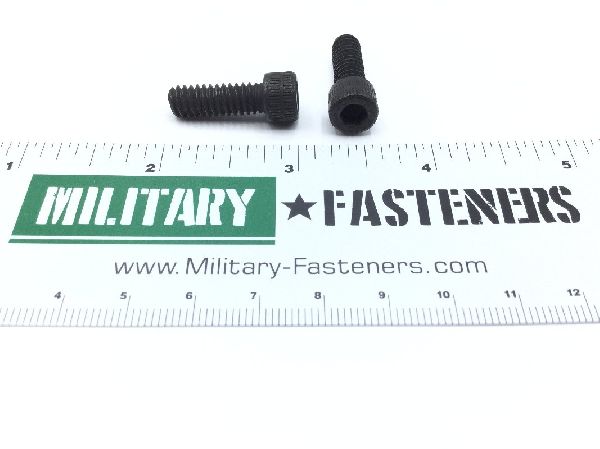

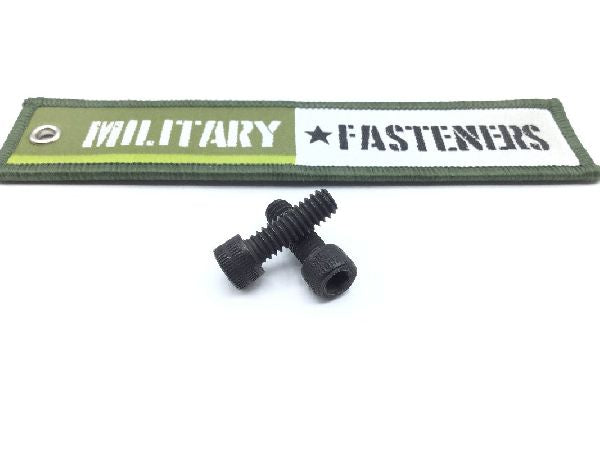

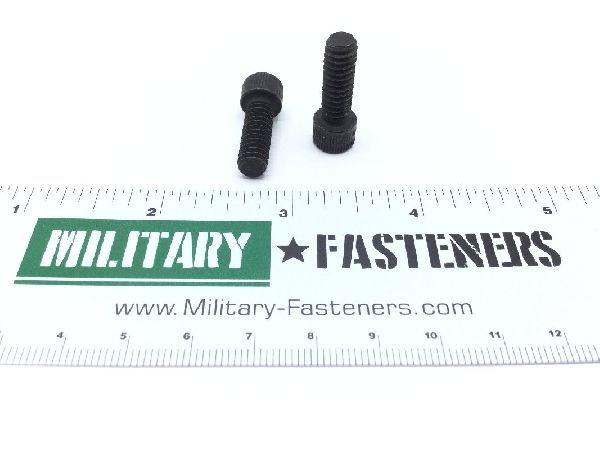

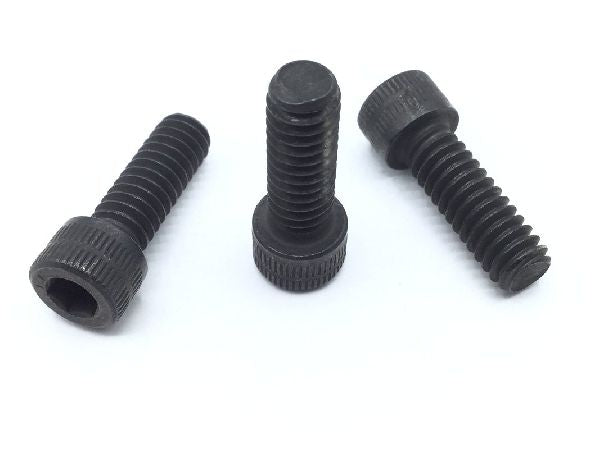

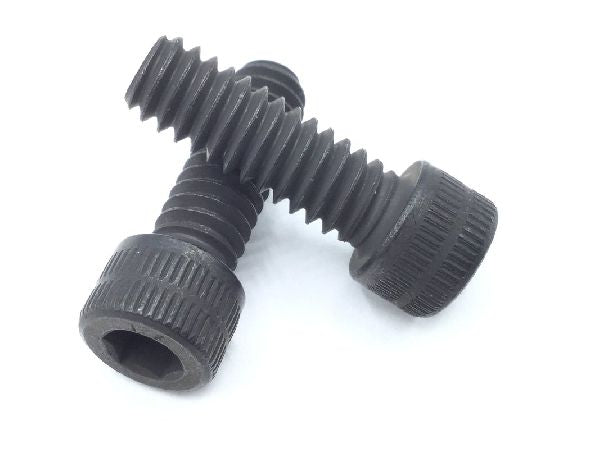

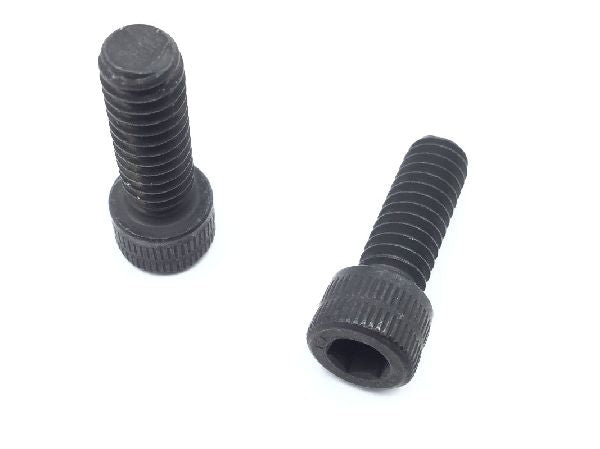

MS16995-50B Socket Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat chamfer

Material

Steel comp 302 or steel comp 303 or steel comp 304 or steel comp 305 or steel comp 316

Surface Treatment

Cl 4 military specification single treatment response mil-c-13924

Thread Class

Fastener Length: Between 0.720 inches and 0.750 inches
Hardness Rating: 80.0 rockwell b
Head Height: Between 0.244 inches and 0.250 inches
Internal Drive Style: Hexagon
Material Specification: 66 federal standard all material responses
Min. Tensile Strength (psi): 80000 pounds per square inch
Minimum Yield Strength: 30000 pounds per square inch
Nondefinitive Specification/std Data: 6 type
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.620 inches and 0.750 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unc (coarse thread)
Width Across Flats: Between 0.188 inches and 0.190 inches
Head Diameter: Between 0.365 inches and 0.375 inches
