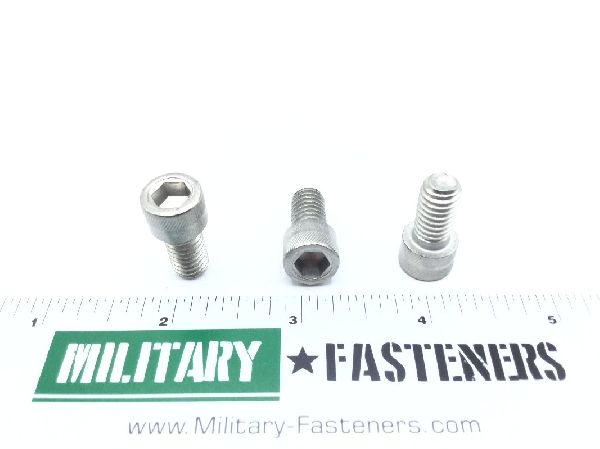

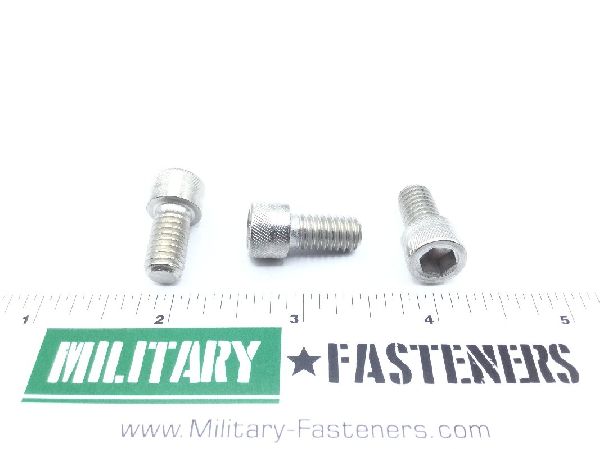

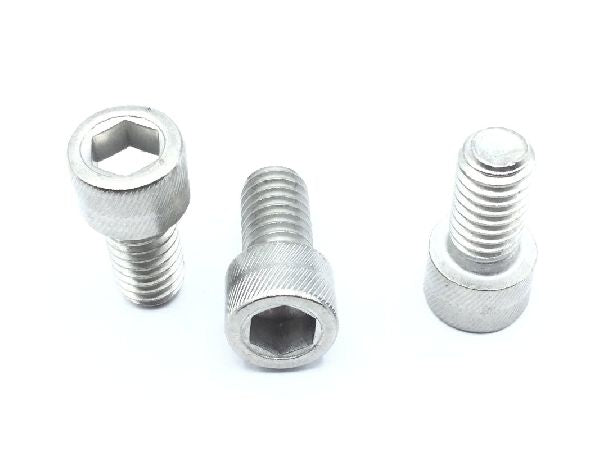

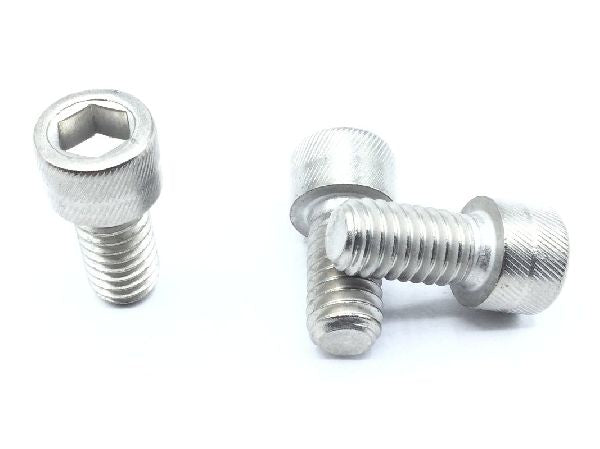

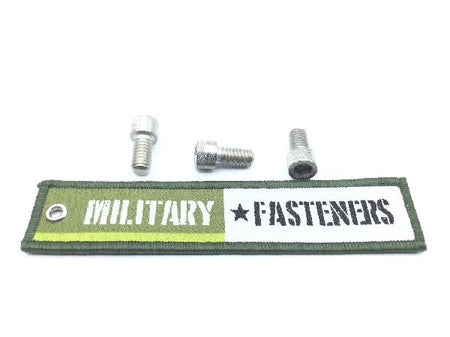

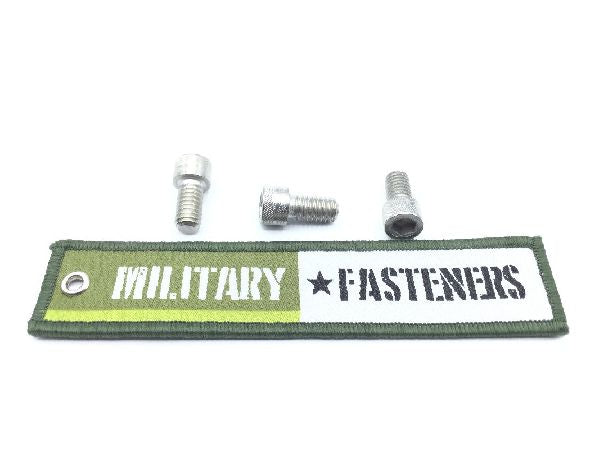

MS16995-63 Socket Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $2.62

Units per Pack 20

Price per Pack $52.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $52.40

Add item to quote

Head Style

Flat chamfer

Material

Steel comp 302 or steel comp 303 or steel comp 304 or steel comp 305 or steel comp 316

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 0.595 inches and 0.625 inches
Hardness Rating: 80 rockwell b
Head Height: Between 0.306 inches and 0.312 inches
Internal Drive Style: Hexagon
Material Specification: 66 federal standard single material response
Min. Tensile Strength (psi): 80000 pounds per square inch
Minimum Yield Strength: 30000 pounds per square inch
Nondefinitive Specification/std Data: 6 type
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.484 inches and 0.625 inches
Thread Qty Per Inch (tpi): 18
Thread Series Designator: Unc (coarse thread)
Width Across Flats: Between 0.250 inches and 0.253 inches
Head Diameter: Between 0.457 inches and 0.469 inches
