Home » MS16995-78 Socket Head Cap Screw

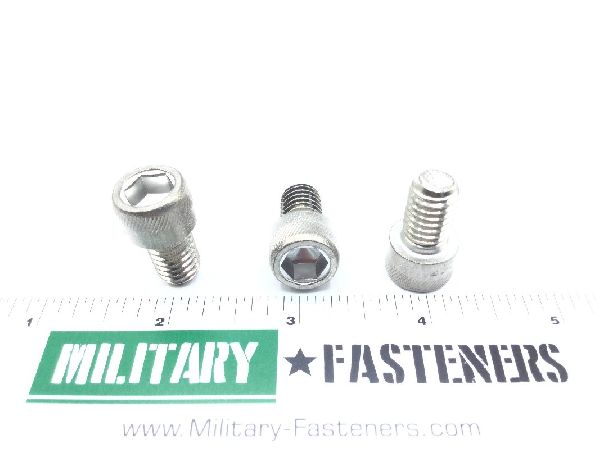

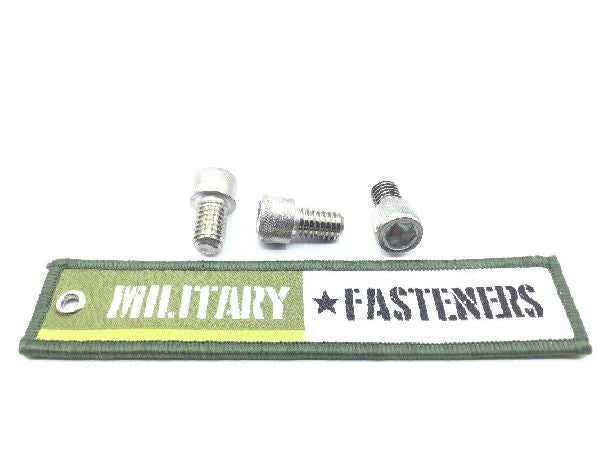

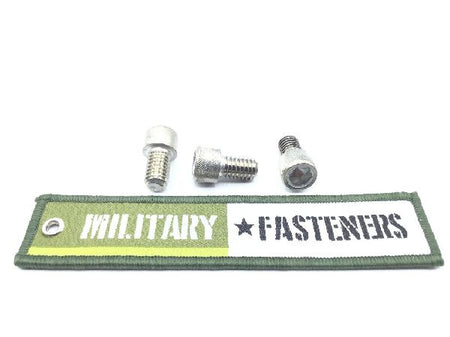

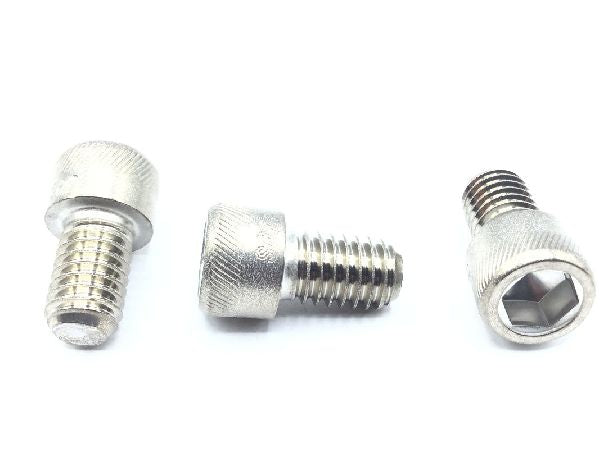

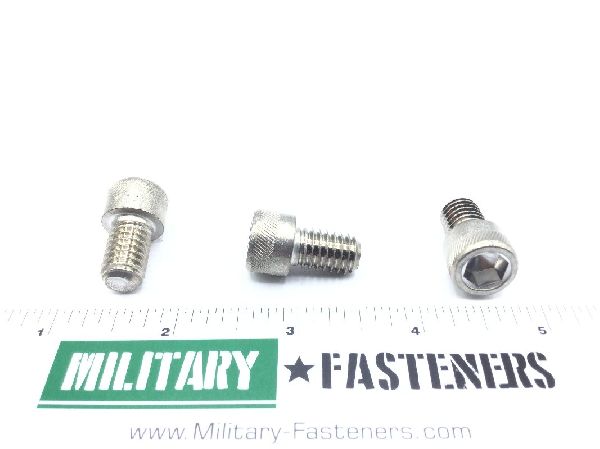

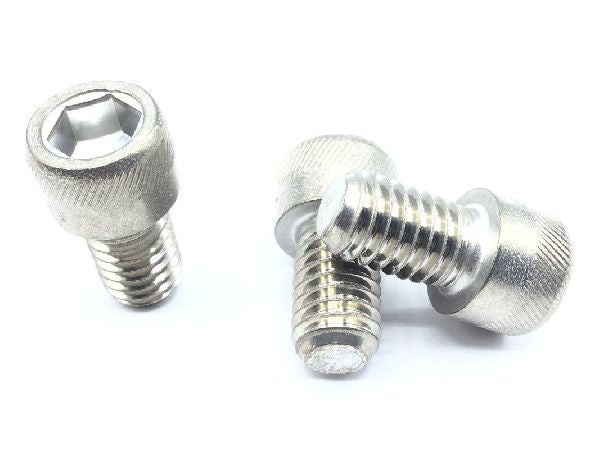

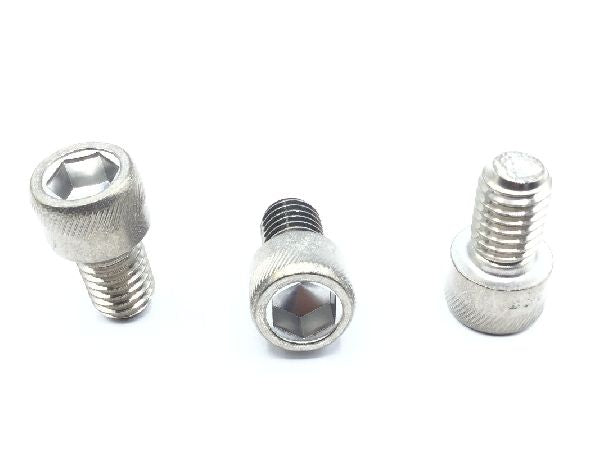

MS16995-78 Socket Head Cap Screw
MS16995-78 Socket Head Cap Screw (2)
MS16995-78 Socket Head Cap Screw (3)
MS16995-78 Socket Head Cap Screw (4)
MS16995-78 Socket Head Cap Screw (5)
MS16995-78 Socket Head Cap Screw (6)
MS16995-78 Socket Head Cap Screw
MS16995-78 Socket Head Cap Screw (2)
MS16995-78 Socket Head Cap Screw (3)
MS16995-78 Socket Head Cap Screw (4)
MS16995-78 Socket Head Cap Screw (5)
MS16995-78 Socket Head Cap Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS16995-78 Socket Head Cap Screw

Product Series
MS
ECCN
EAR99
Schedule
7318.15.2091
Price per Unit $16.56
Units per Pack 5
Price per Pack $82.80
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:
Total Packs 1
Total Price $82.80
Add item to quote
Head Style
Flat chamfer
Material
Steel comp 302 or steel comp 303 or steel comp 304 or steel comp 305 or steel comp 316
Surface Treatment
Qq-p-35 federal specification single treatment response
Thread Class
3a
Fastener Length
Between 0.595 inches and 0.625 inches
Hardness Rating
80.0 rockwell b
Head Height
Between 0.368 inches and 0.375 inches
Internal Drive Style
Hexagon
Material Specification
66 federal standard all material responses
Min. Tensile Strength (psi)
80000 pounds per square inch
Minimum Yield Strength
30000 pounds per square inch
Nondefinitive Specification/std Data
6 type
Thread Diameter
0.375 inches
Thread Direction
Right-hand
Thread Length
Between 0.470 inches and 0.625 inches
Thread Qty Per Inch (tpi)
16
Thread Series Designator
Unc (coarse thread)
Width Across Flats
Between 0.312 inches and 0.316 inches
Head Diameter
Between 0.550 inches and 0.563 inches
