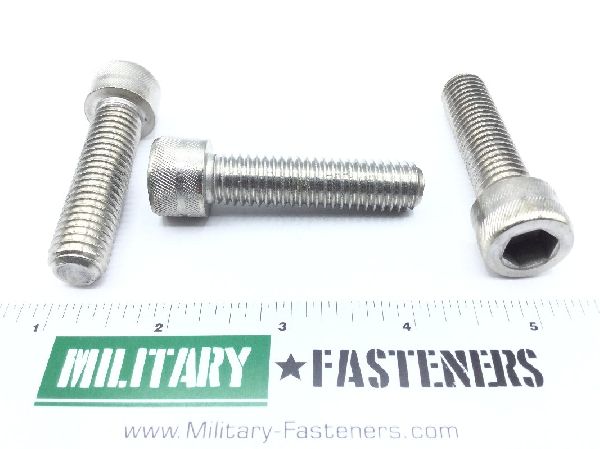

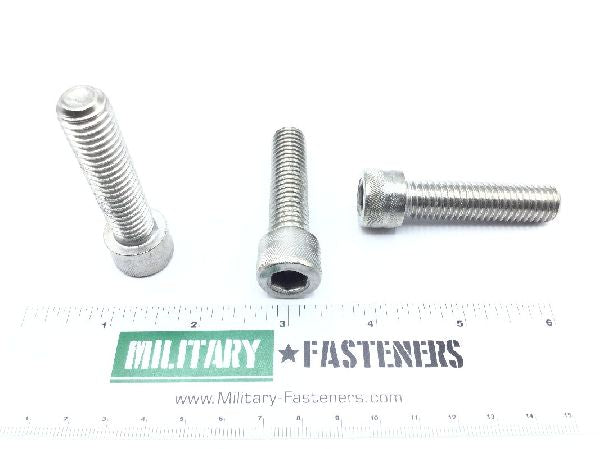

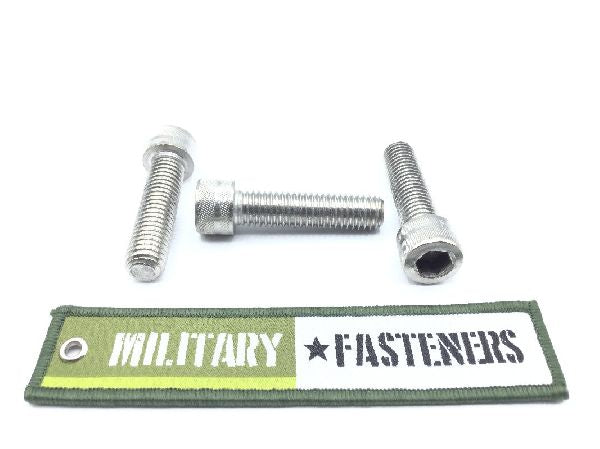

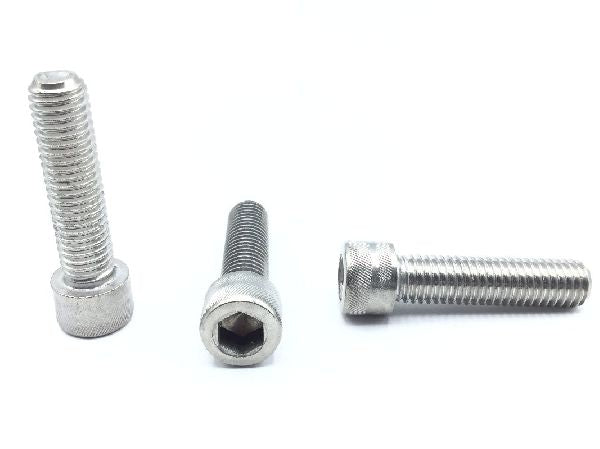

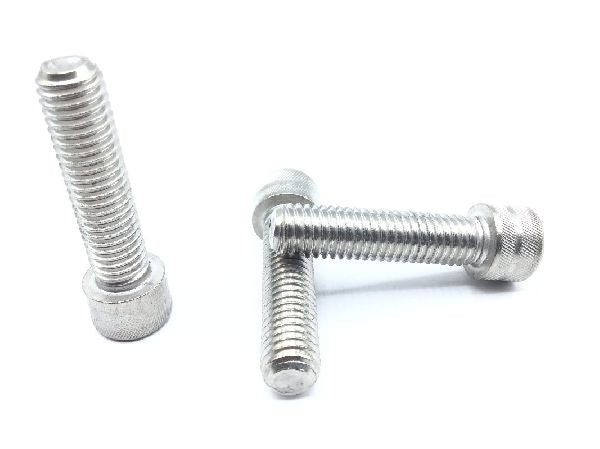

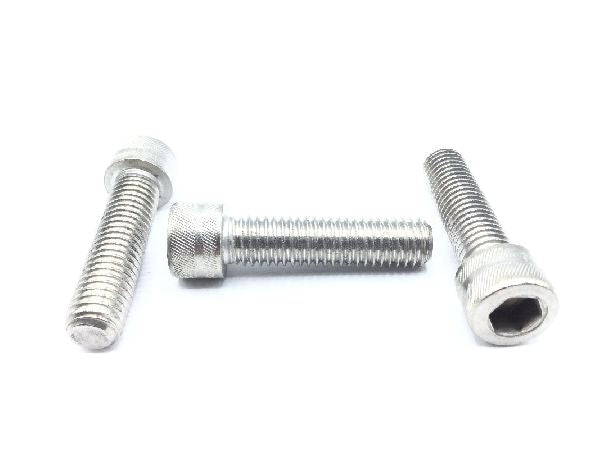

MS16995-98 Socket Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat chamfer

Material

Steel

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Thread Quantity Per Inch (tpi)

Fastener Length: 2.000 inches
Hardness Rating: 80.0 rockwell b
Head Height: Between 0.492 inches and 0.500 inches
Internal Drive Style: Hexagon
Material Specification: 66 federal standard all material responses
Min. Tensile Strength (psi): 80000 pounds per square inch
Minimum Yield Strength: 30000 pounds per square inch
Thread Diameter: 0.500 inches
Thread Direction: Right-hand
Thread Length: 1.862 inches
Thread Series Designator: Unc (coarse thread)
Width Across Flats: Between 0.375 inches and 0.379 inches
Head Diameter: Between 0.735 inches and 0.750 inches
