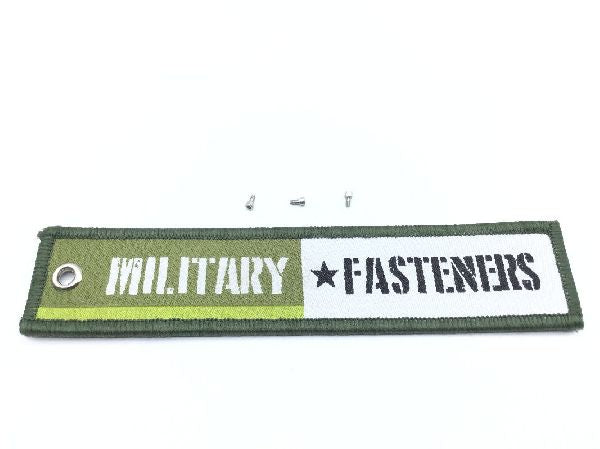

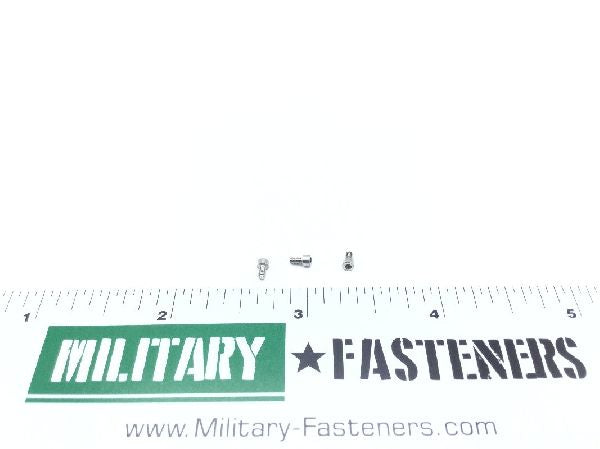

MS16996-1 Socket Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.42

Units per Pack 100

Price per Pack $42.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $42.00

Add item to quote

Head Style

Flat chamfer

Material

Stainless Steel

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 0.109 inches and 0.141 inches
Hardness Rating: 80.0 rockwell b
Head Height: Between 0.057 inches and 0.060 inches
Internal Drive Style: Hexagon
Material Specification: 66 federal standard single material response
Min. Tensile Strength (psi): 80000 pounds per square inch
Minimum Yield Strength: 30000 pounds per square inch
Thread Diameter: 0.060 inches
Thread Direction: Right-hand
Thread Length: Between 0.109 inches and 0.141 inches
Thread Qty Per Inch (tpi): 80
Thread Series Designator: Unf (fine thread)
Width Across Flats: Between 0.050 inches and 0.051 inches
Head Diameter: Between 0.091 inches and 0.096 inches
