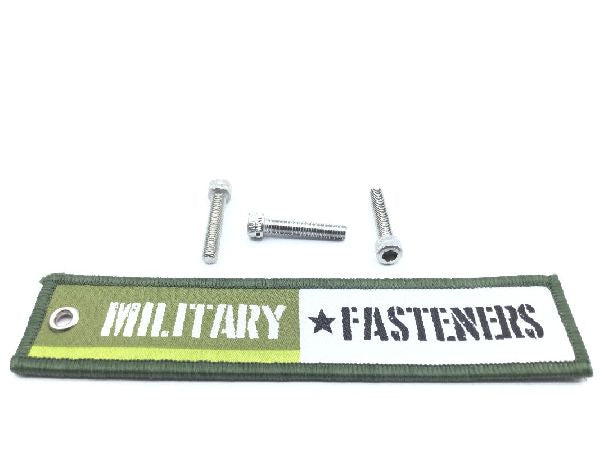

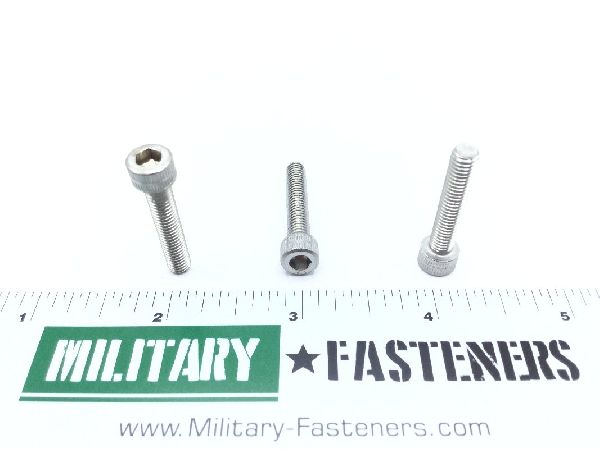

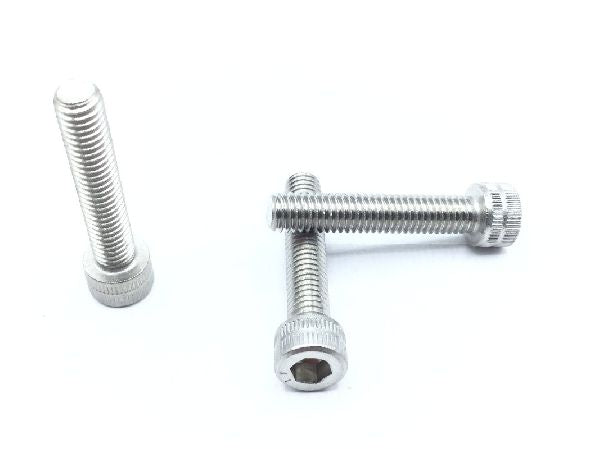

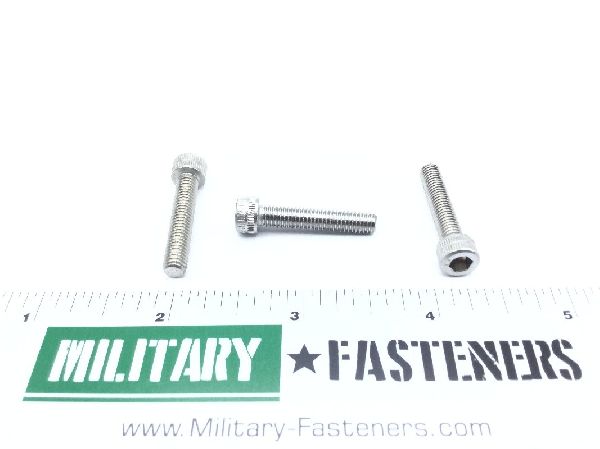

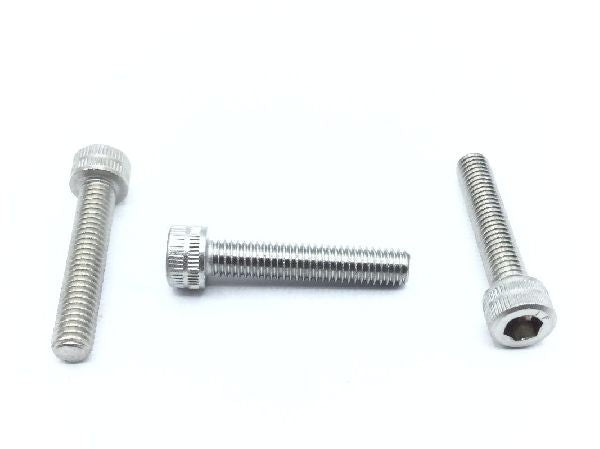

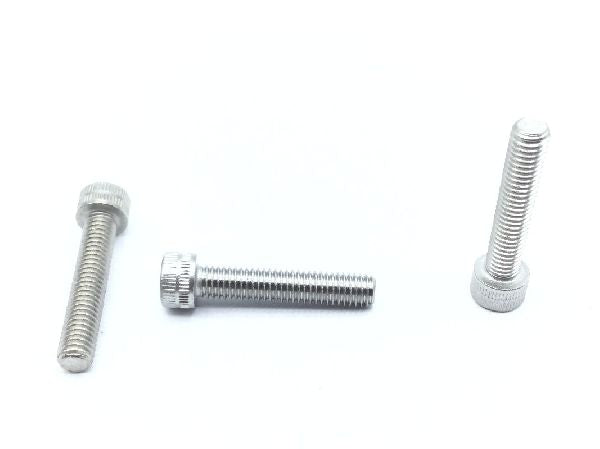

MS16996-14 Socket Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.50

Units per Pack 100

Price per Pack $50.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $50.00

Add item to quote

Head Style

Flat chamfer

Material

Stainless Steel

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Thread Quantity Per Inch (tpi)

Fastener Length: Between 0.984 inches and 1.016 inches
Hardness Rating: 80.0 rockwell b
Head Height: Between 0.185 inches and 0.190 inches
Internal Drive Style: Hexagon
Material Specification: 66 federal standard single material response
Min. Tensile Strength (psi): 80000 pounds per square inch
Minimum Yield Strength: 30000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.922 inches and 0.954 inches
Thread Series Designator: Unf (fine thread)
Width Across Flats: Between 0.156 inches and 0.158 inches
Head Diameter: Between 0.303 inches and 0.312 inches
