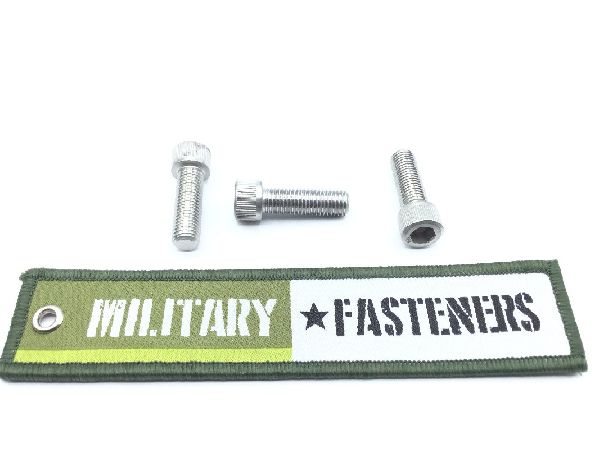

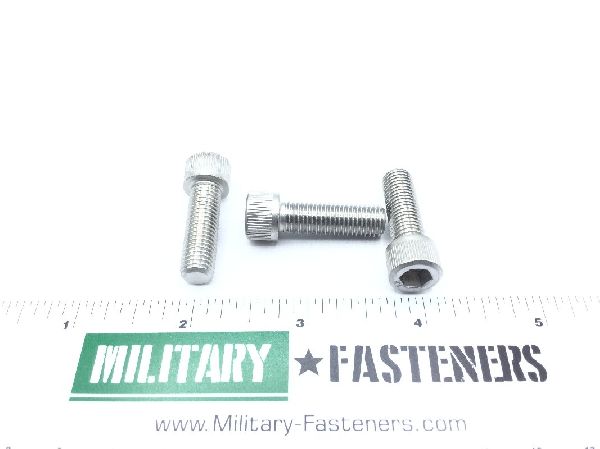

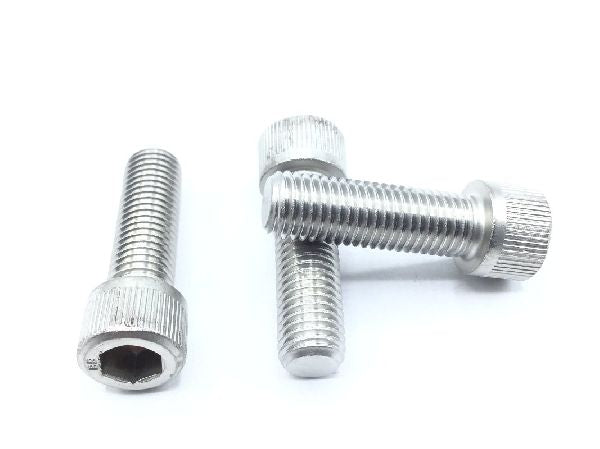

MS16996-32 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat chamfer

Material

Steel comp 302 or steel comp 303 or steel comp 304 or steel comp 305 or steel comp 316

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Thread Quantity Per Inch (tpi)

Fastener Length: 1 inch
Hardness Rating: 80.0 rockwell b
Head Height: Between 0.306 inches and 0.313 inches
Internal Drive Style: Hexagon
Material Specification: 66 federal standard all material responses
Min. Tensile Strength (psi): 80000 pounds per square inch
Minimum Yield Strength: 30000 pounds per square inch
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: 0.933 inches
Thread Series Designator: Unf (fine thread)
Width Across Flats: Between 0.250 inches and 0.253 inches
Head Diameter: Between 0.457 inches and 0.469 inches
