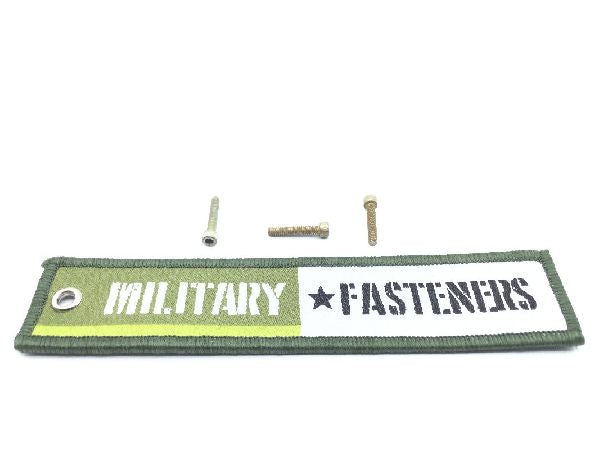

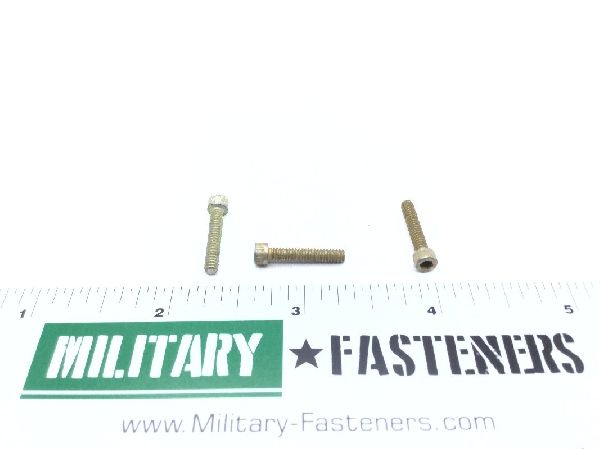

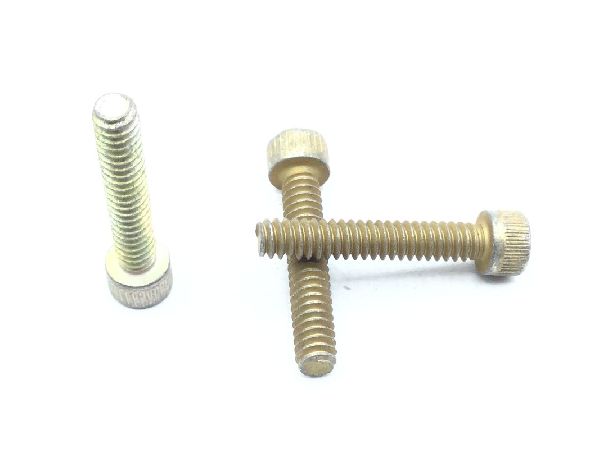

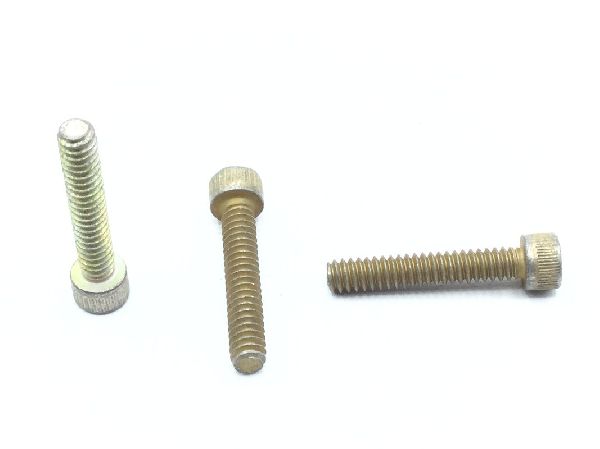

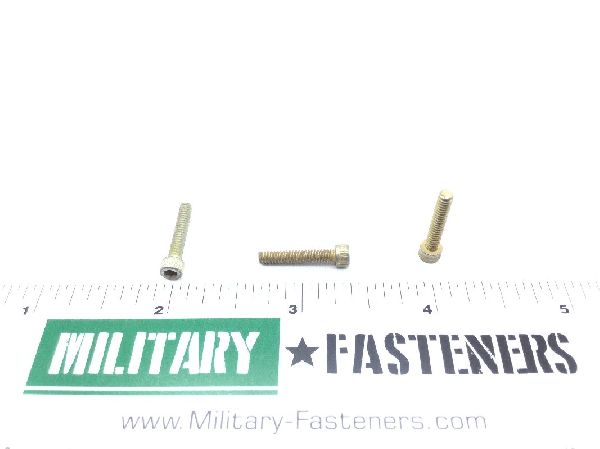

MS16997-12 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.50

Units per Pack 25

Price per Pack $37.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $37.50

Add item to quote

Head Style

Flat chamfer

Material

Steel

Surface Treatment

Cl 3 federal specification all treatment responses type 2 qq-p-416

Thread Class

Fastener Length: Between 0.609 inches and 0.641 inches
Hardness Rating: 36.0 rockwell c and 45.0 rockwell c
Head Height: Between 0.108 inches and 0.112 inches
Internal Drive Style: Hexagon
Min. Tensile Strength (psi): 160000 pounds per square inch
Minimum Yield Strength: 130000 pounds per square inch
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.609 inches and 0.641 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unc (coarse thread)
Width Across Flats: Between 0.093 inches and 0.095 inches
Head Diameter: Between 0.176 inches and 0.183 inches
