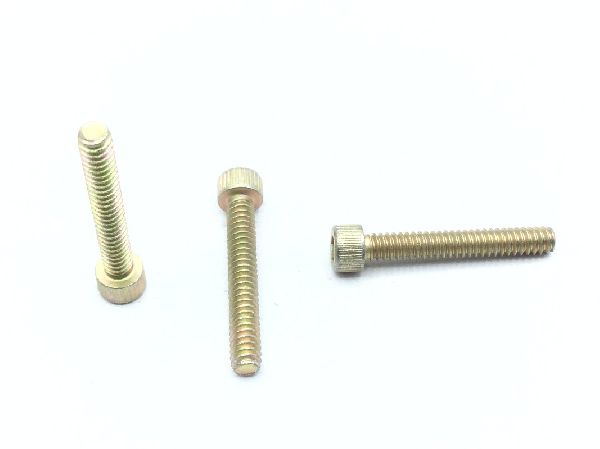

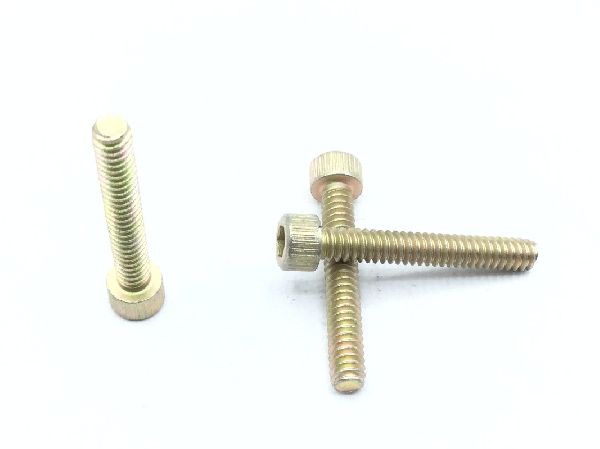

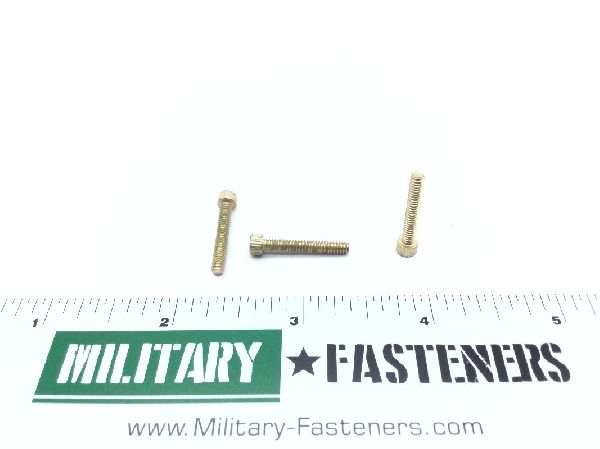

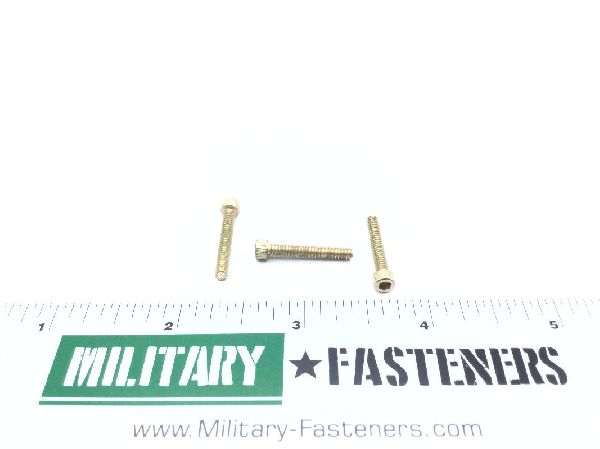

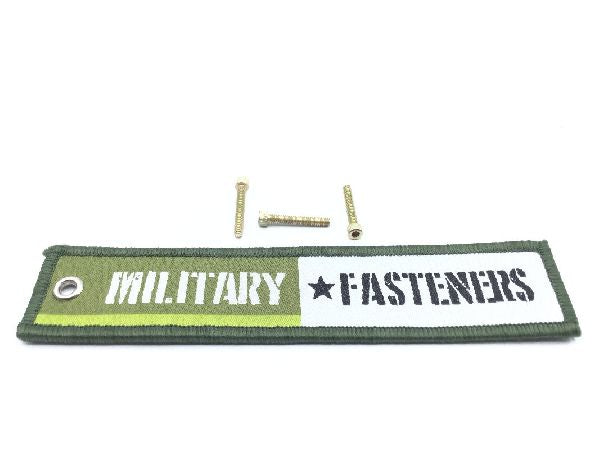

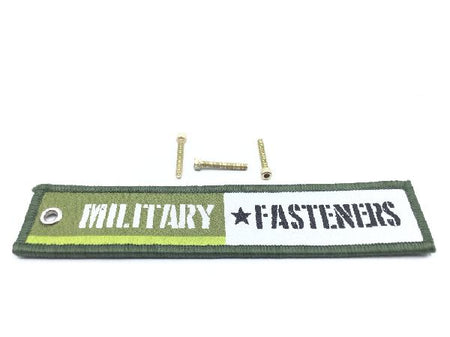

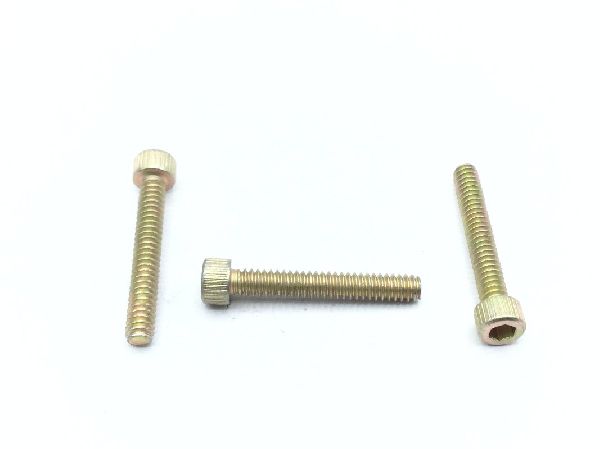

MS16997-13 Socket Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $1.66

Units per Pack 25

Price per Pack $41.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $41.50

Add item to quote

Head Style

Flat chamfer

Thread Class

Fastener Length: Between 0.734 inches and 0.766 inches
Hardness Rating: Between 36 rockwell c and 45 rockwell c
Head Height: Between 0.108 inches and 0.112 inches
Internal Drive Style: Err-090
Min. Tensile Strength (psi): 160000 pounds per square inch
Screw Material: Steel
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Type 2 cl 3 federal specification all treatment responses qq-p-416
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.734 inches and 0.766 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.093 inches and 0.095 inches
Head Diameter: Between 0.176 inches and 0.183 inches
