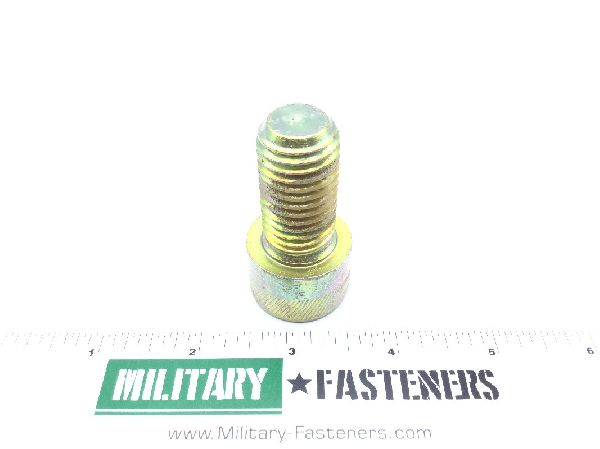

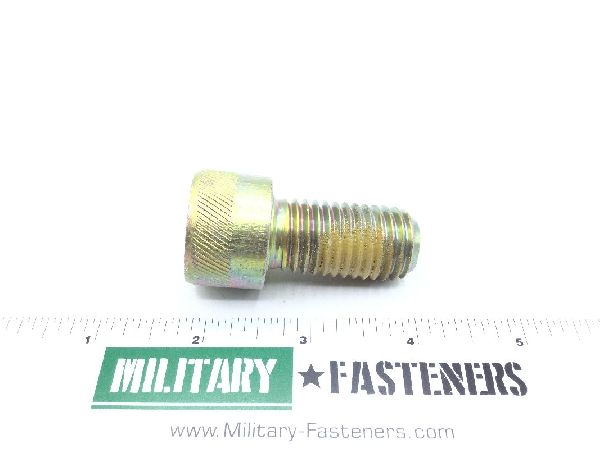

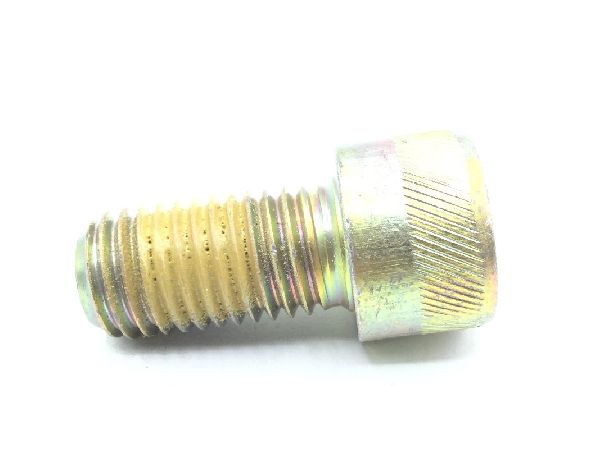

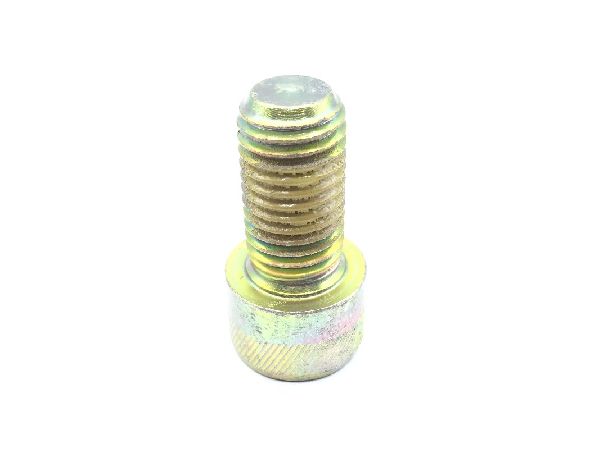

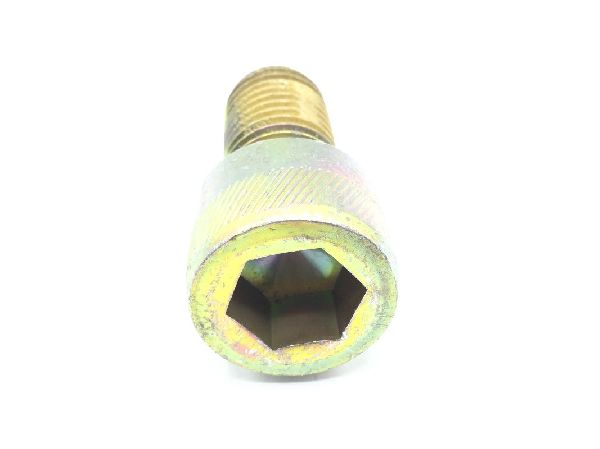

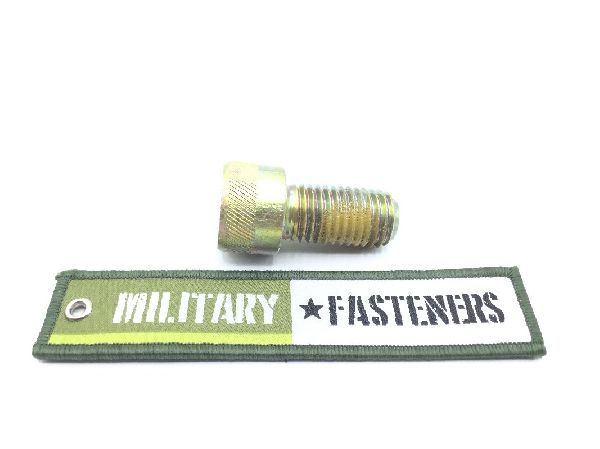

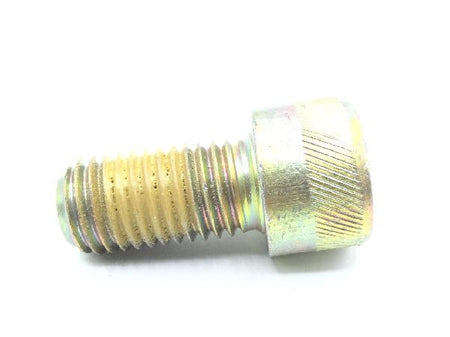

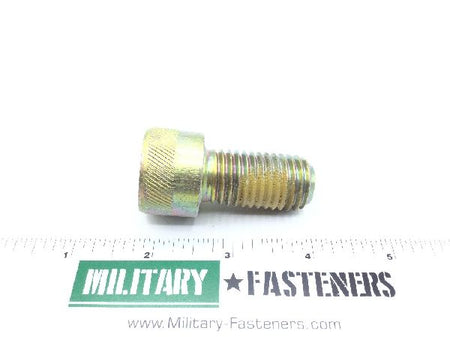

MS16997-188L Socket Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $36.73

Units per Pack 1

Price per Pack $36.73

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $36.73

Add item to quote

Head Style

Flat chamfer

Material

Plastic polyamide locking feature

Surface Treatment

Ty2cl2 federal specification single treatment response fastener or mil-c-815622 military specification single treatment response fastener qq-p-416

Thread Class

Fastener Length: Between 1.440 inches and 1.500 inches
Head Height: Between 0.740 inches and 0.750 inches
Internal Drive Style: Hexagon
Locking Feature: Patch threads or pellet threads or strip threads
Material Specification: Astm a574 assn standard single material response fastener
Min. Tensile Strength (psi): 160000 pounds per square inch
Special Features: Black oxide surface treatment
Thread Diameter: 0.750 inches
Thread Direction: Right-hand
Thread Length: 1.500 inches
Thread Qty Per Inch (tpi): 10
Thread Series Designator: Unrc
Width Across Flats: Between 0.625 inches and 0.631 inches
Head Diameter: Between 1.107 inches and 1.125 inches
