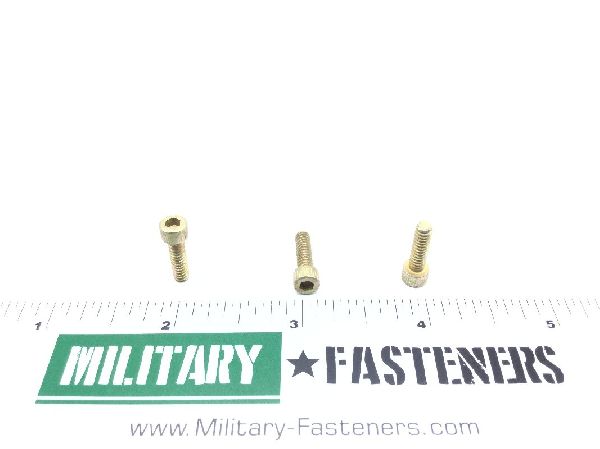

MS16997-20 Socket Head Cap Screw
MS16997-20 Socket Head Cap Screw (2)

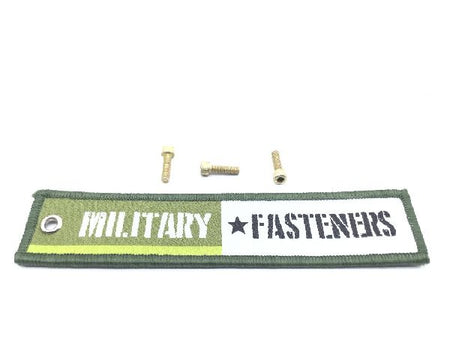

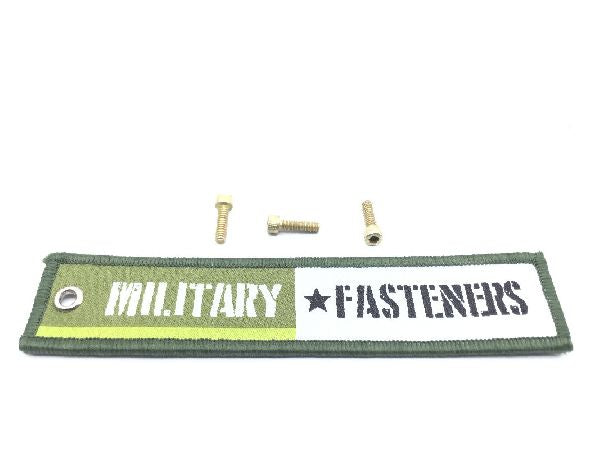

MS16997-20 Socket Head Cap Screw (3)
MS16997-20 Socket Head Cap Screw (4)

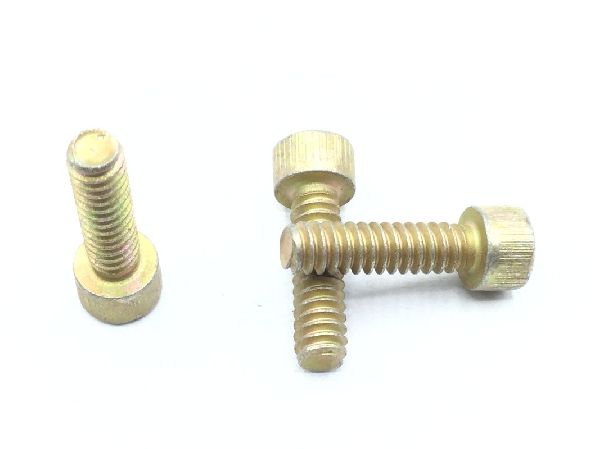

MS16997-20 Socket Head Cap Screw (5)

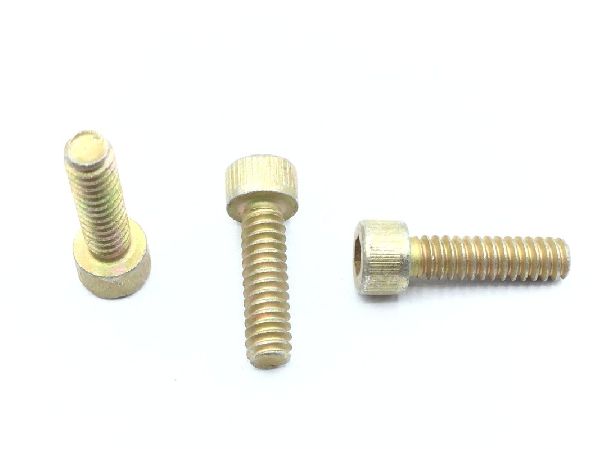

MS16997-20 Socket Head Cap Screw
MS16997-20 Socket Head Cap Screw (2)
MS16997-20 Socket Head Cap Screw (3)
MS16997-20 Socket Head Cap Screw (4)
MS16997-20 Socket Head Cap Screw (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS16997-20 Socket Head Cap Screw

Product Series
MS
ECCN
EAR99
Schedule
7318.15.2091
Price per Unit $1.84
Units per Pack 20
Price per Pack $36.80
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:
Total Packs 1
Total Price $36.80
Add item to quote
Head Style
Flat chamfer
Thread Class
3a
Fastener Length
Between 0.469 inches and 0.500 inches
Head Height
Between 0.134 inches and 0.138 inches
Internal Drive Style
Err-090
Min. Tensile Strength (psi)
160000 pounds per square inch
Screw Material
Steel uns k03104
Screw Material Specification
Astm a574 assn standard single material response
Screw Surface Treatment
Cadmium and chromate
Screw Surface Treatment Specification
Qq-p-416 type 2 class 3 federal specification all treatment responses or mil-c-81562 type 2 cl 6 military specification all treatment responses
Thread Diameter
0.138 inches
Thread Direction
Right-hand
Thread Length
0.500 inches
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unc (coarse thread)
Width Between Flats
Between 0.1094 inches and 0.1111 inches
Head Diameter
Between 0.218 inches and 0.226 inches
