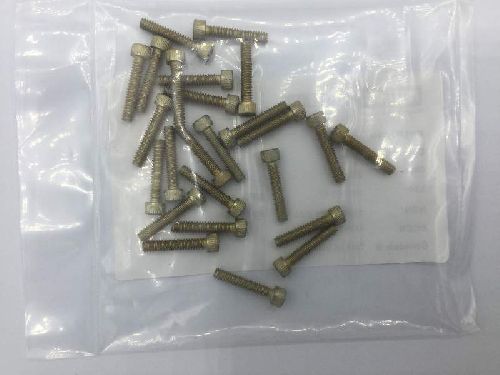

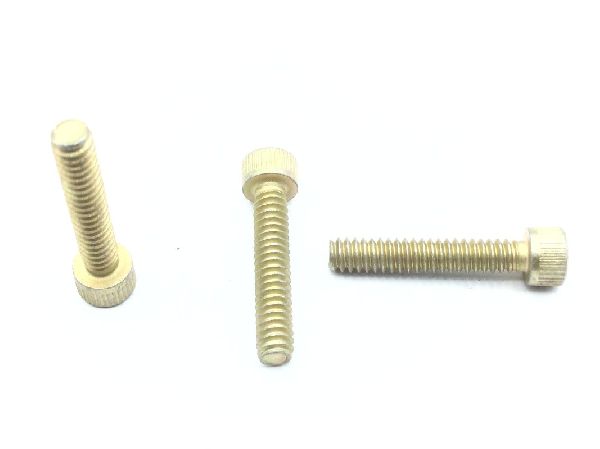

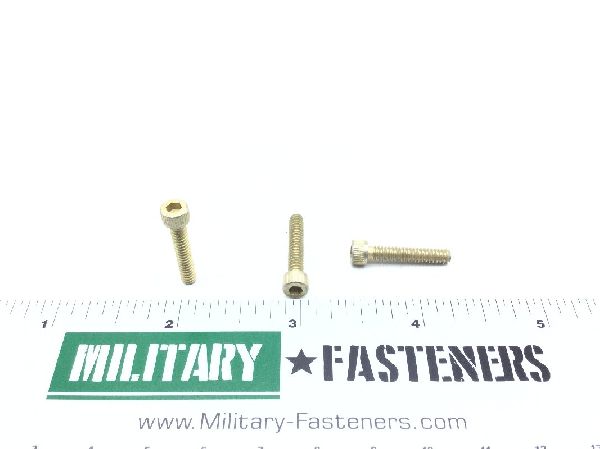

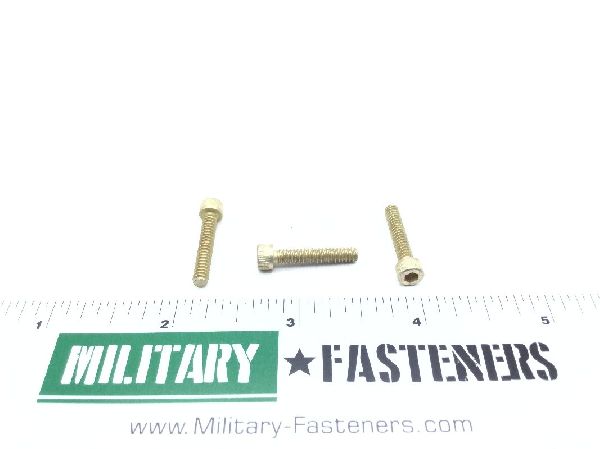

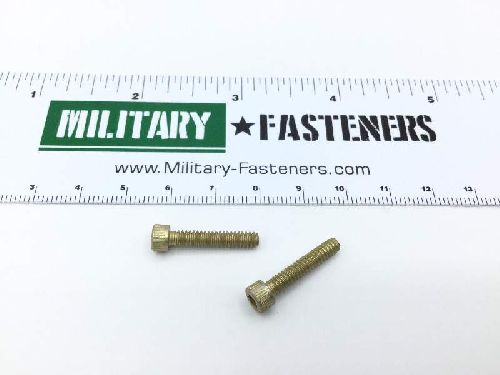

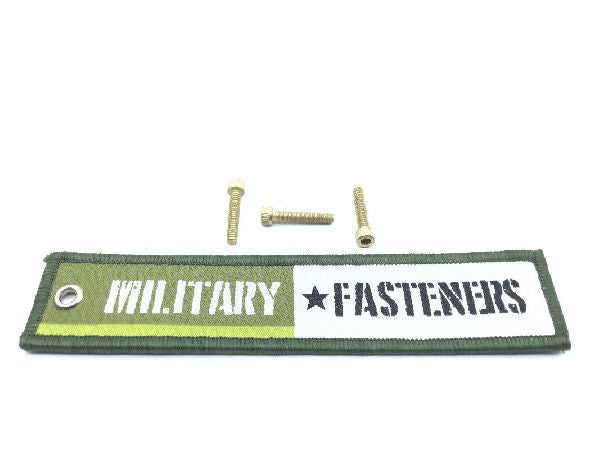

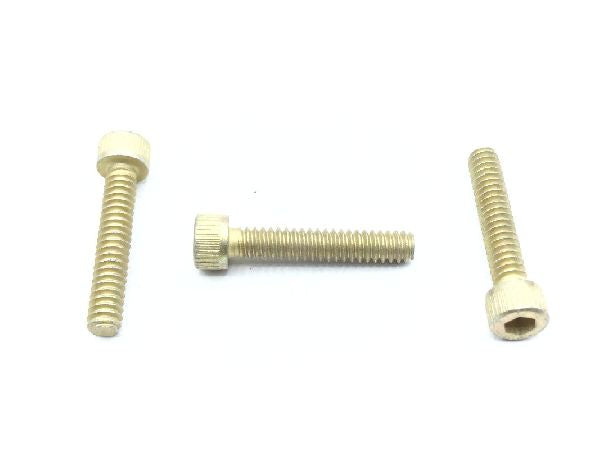

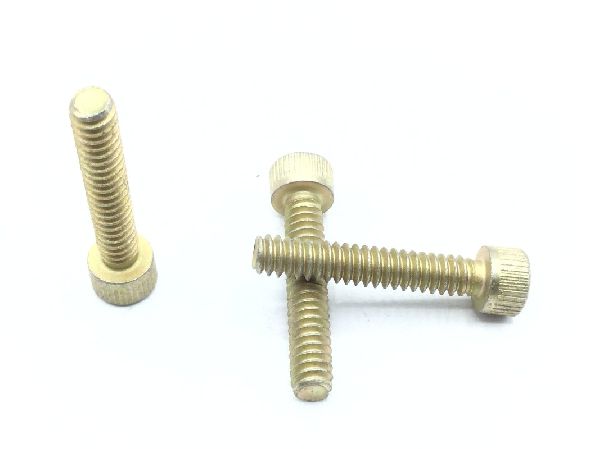

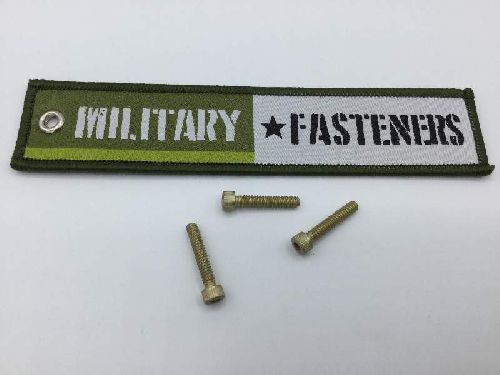

MS16997-22 Machine Screw

Product Series: MS
ECCN: 9A991
Schedule: 7318.15.2091

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat chamfer

Material

Steel

Surface Treatment

Cl 3 federal specification all treatment responses type 2 qq-p-416

Thread Class

Fastener Length: Between 0.734 inches and 0.766 inches
Hardness Rating: 36.0 rockwell c and 45.0 rockwell c
Head Height: Between 0.134 inches and 0.138 inches
Internal Drive Style: Hexagon
Min. Tensile Strength (psi): 160000 pounds per square inch
Minimum Yield Strength: 130000 pounds per square inch
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 0.734 inches and 0.766 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Width Across Flats: Between 0.109 inches and 0.111 inches
Head Diameter: Between 0.218 inches and 0.226 inches
