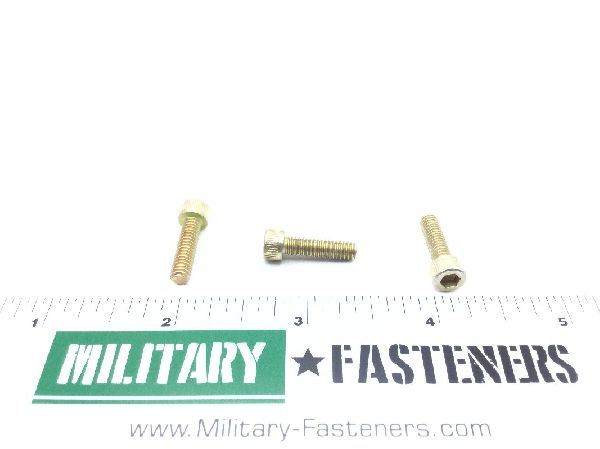

MS16997-33 Socket Head Cap Screw

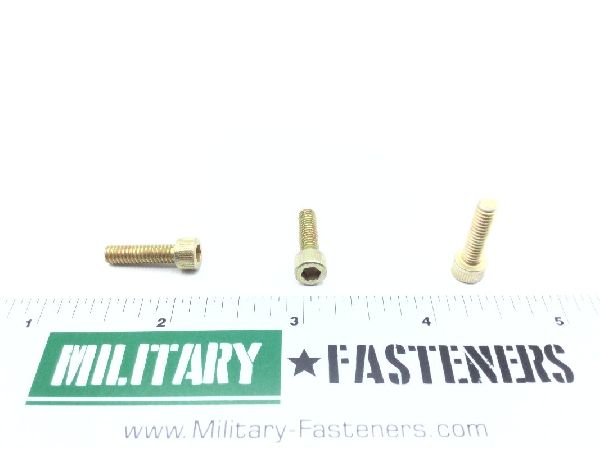

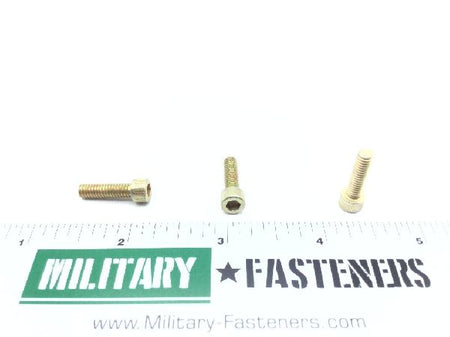

MS16997-33 Socket Head Cap Screw (2)

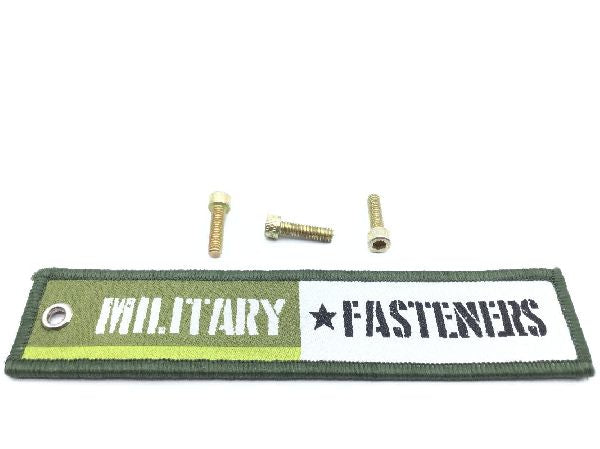

MS16997-33 Socket Head Cap Screw (3)

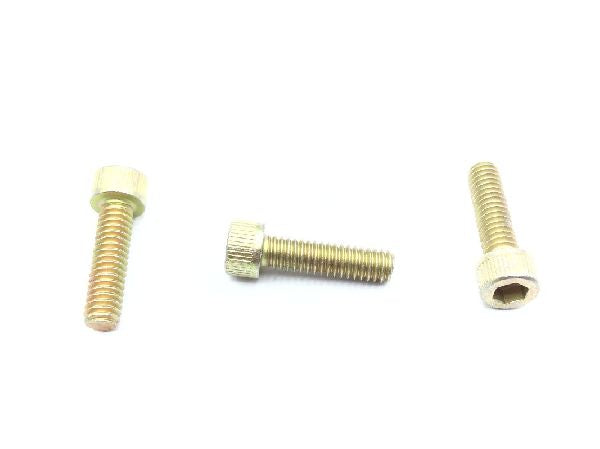

MS16997-33 Socket Head Cap Screw (4)

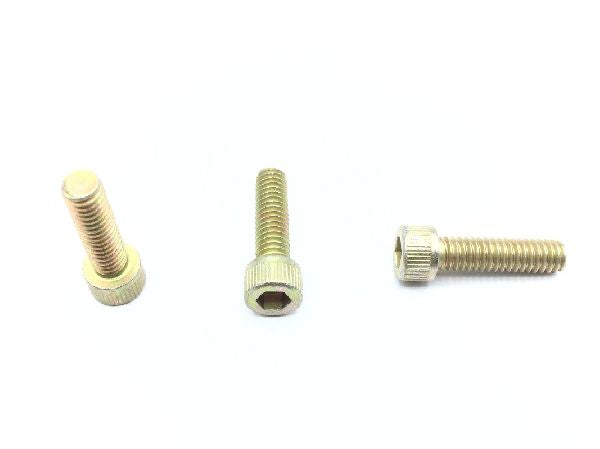

MS16997-33 Socket Head Cap Screw (5)

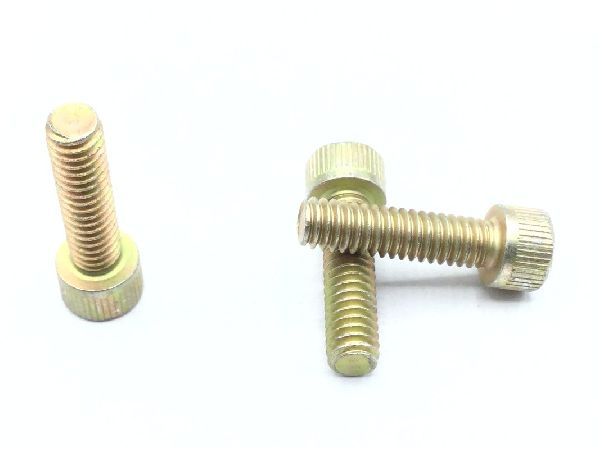

MS16997-33 Socket Head Cap Screw (6)
MS16997-33 Socket Head Cap Screw
MS16997-33 Socket Head Cap Screw (2)
MS16997-33 Socket Head Cap Screw (3)
MS16997-33 Socket Head Cap Screw (4)
MS16997-33 Socket Head Cap Screw (5)
MS16997-33 Socket Head Cap Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS16997-33 Socket Head Cap Screw

Product Series
MS
ECCN
EAR99
Schedule
7318.15.2091
Price per Unit $1.62
Units per Pack 25
Price per Pack $40.50
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:
Total Packs 1
Total Price $40.50
Add item to quote
Head Style
Flat chamfer
Material
Steel
Surface Treatment
Cl 3 federal specification all treatment responses type 2 qq-p-416
Thread Class
3a
Fastener Length
Between 0.594 inches and 0.625 inches
Hardness Rating
36.0 rockwell c and 45.0 rockwell c
Head Height
Between 0.159 inches and 0.164 inches
Internal Drive Style
Hexagon
Material Specification
66 federal standard single material response
Min. Tensile Strength (psi)
160000 pounds per square inch
Minimum Yield Strength
130000 pounds per square inch
Thread Diameter
0.164 inches
Thread Direction
Right-hand
Thread Length
Between 0.532 inches and 0.594 inches
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unc (coarse thread)
Width Across Flats
Between 0.140 inches and 0.142 inches
Head Diameter
Between 0.262 inches and 0.270 inches
