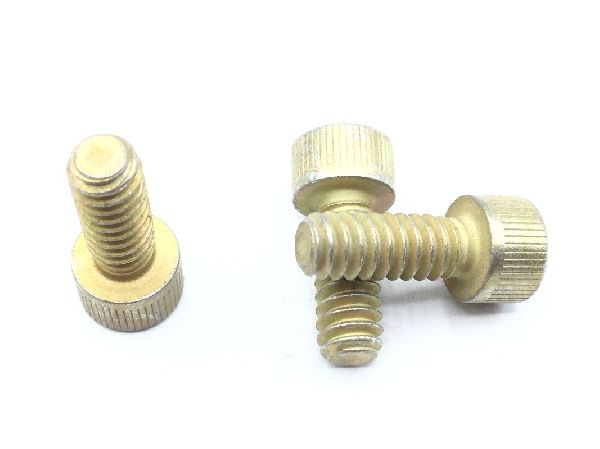

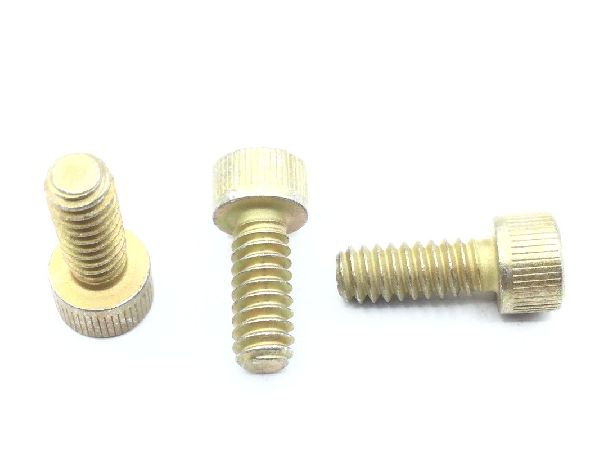

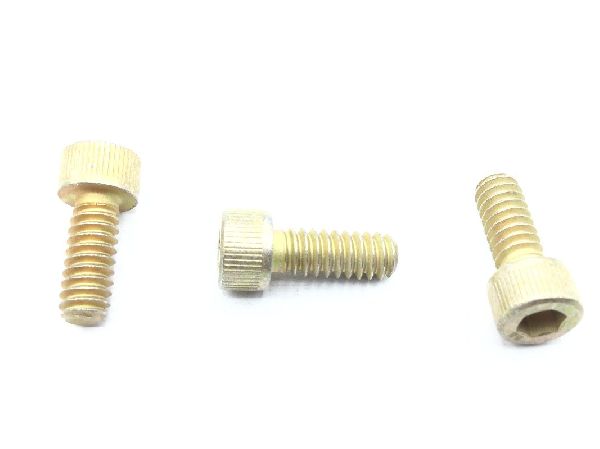

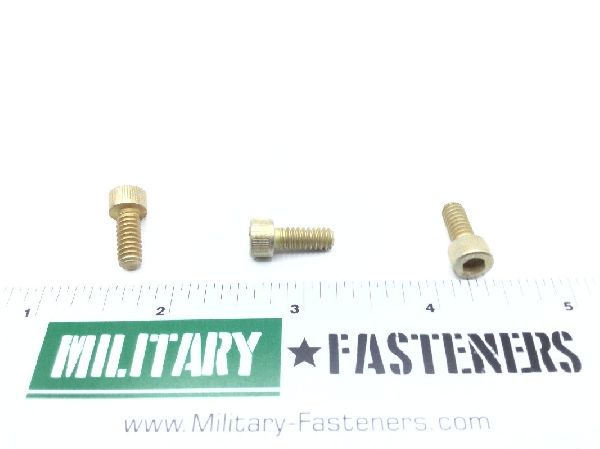

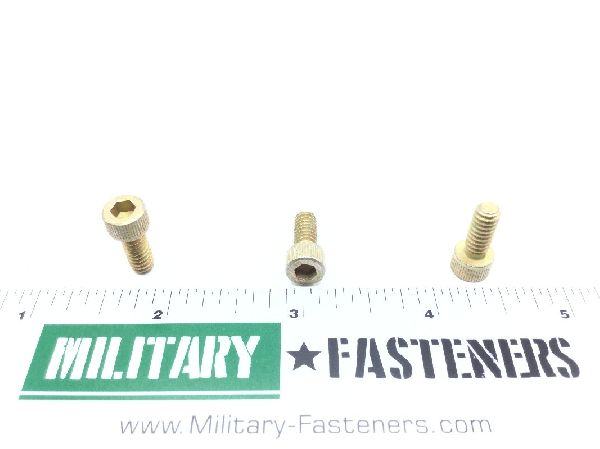

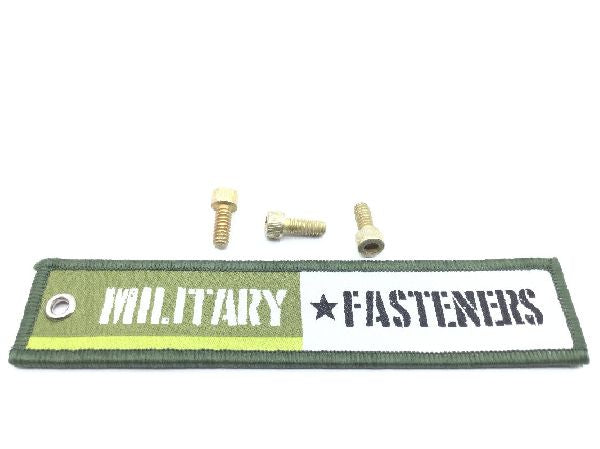

MS16997-44 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.83

Units per Pack 50

Price per Pack $41.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $41.50

Add item to quote

Head Style

Flat chamfer

Material

Steel

Surface Treatment

Class 3 federal specification all treatment responses type 2 qq-p-416

Thread Class

Fastener Length: Between 0.469 inches and 0.500 inches
Hardness Rating: 38.0 rockwell c and 45.0 rockwell c
Head Height: Between 0.185 inches and 0.190 inches
Internal Drive Style: Hexagon
Min. Tensile Strength (psi): 160000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.376 inches and 0.469 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unc (coarse thread)
Width Across Flats: Between 0.156 inches and 0.158 inches
Head Diameter: Between 0.303 inches and 0.312 inches
