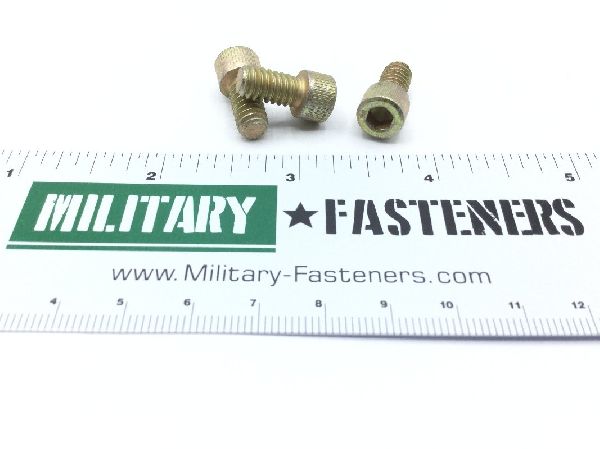

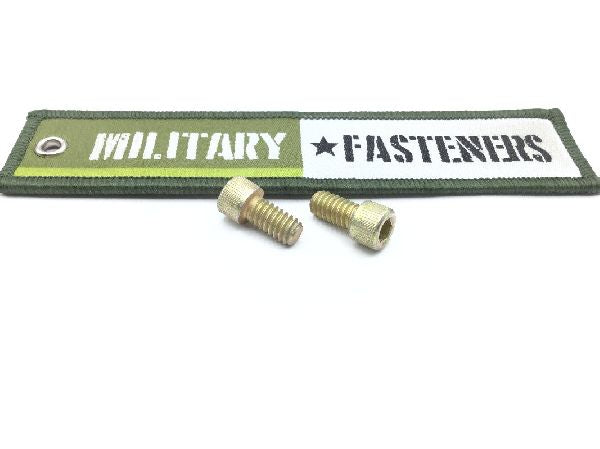

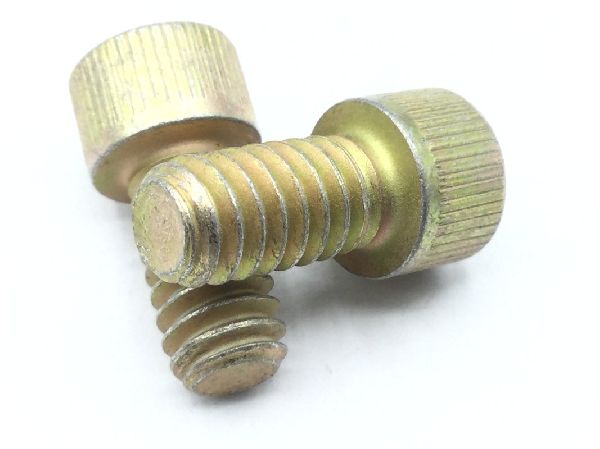

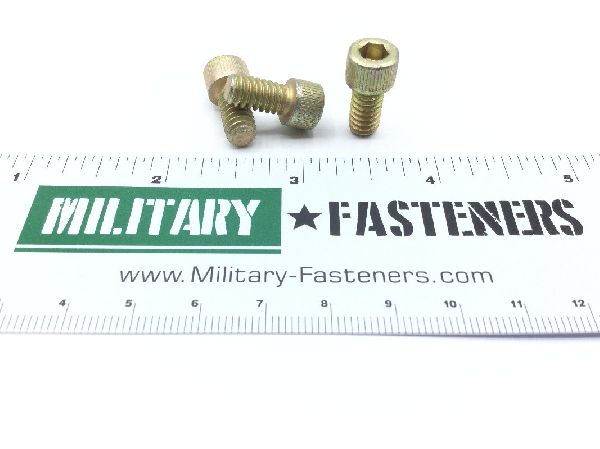

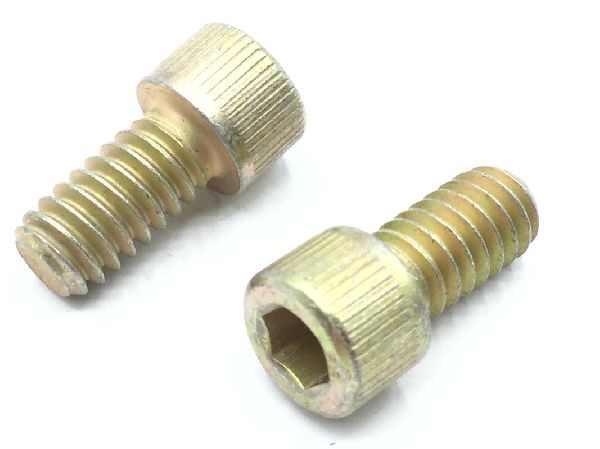

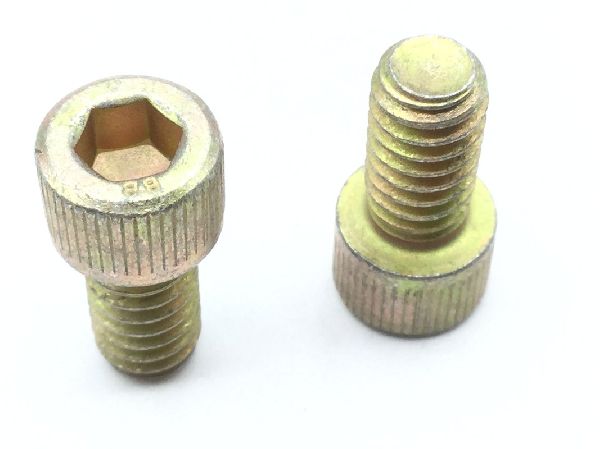

MS16997-58 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.73

Units per Pack 25

Price per Pack $43.25

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $43.25

Add item to quote

Head Style

Flat chamfer

Material

Steel

Surface Treatment

Class 3 federal specification all treatment responses type 2 qq-p-416

Thread Class

Fastener Length: Between 0.469 inches and 0.50 inches
Hardness Rating: 36.0 rockwell c and 45.0 rockwell c
Head Height: Between 0.244 inches and 0.25 inches
Internal Drive Style: Hexagon
Min. Tensile Strength (psi): 160000 pounds per square inch
Minimum Yield Strength: 130000 pounds per square inch
Nondefinitive Specification/std Data: 6 type
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.369 inches and 0.50 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unc (coarse thread)
Width Across Flats: Between 0.188 inches and 0.190 inches
Head Diameter: Between 0.365 inches and 0.375 inches
