MS16997-9 Socket Head Cap Screw

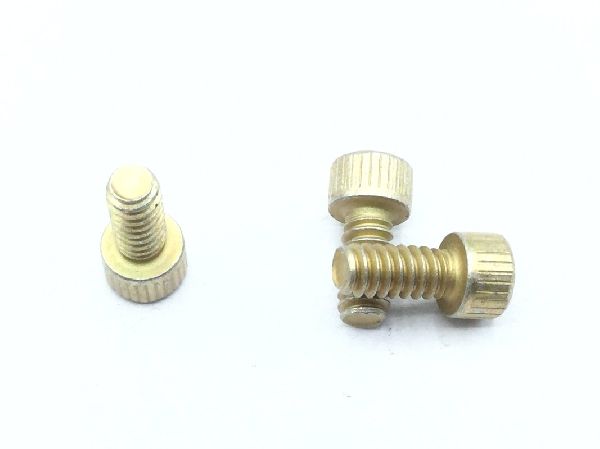

MS16997-9 Socket Head Cap Screw (2)

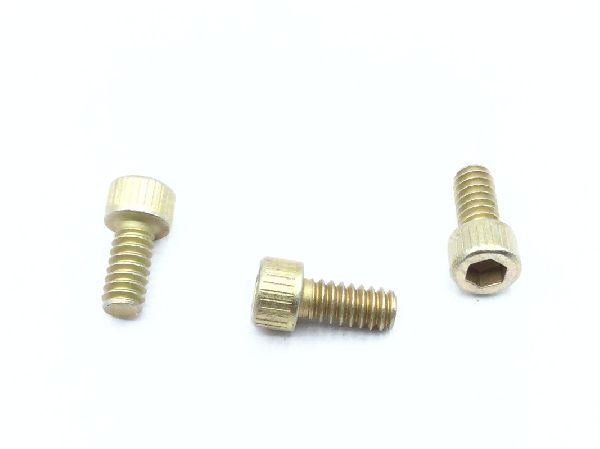

MS16997-9 Socket Head Cap Screw (3)

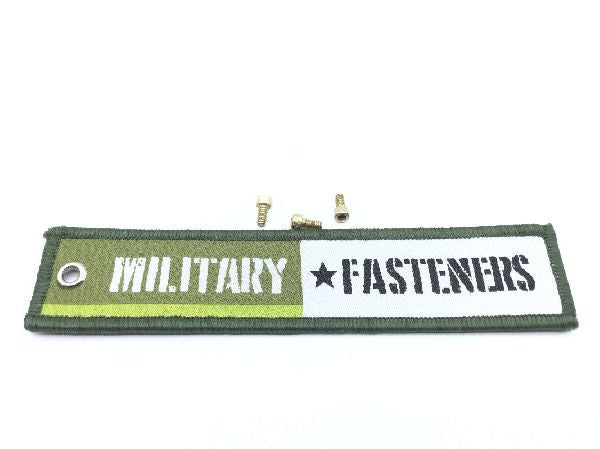

MS16997-9 Socket Head Cap Screw (4)

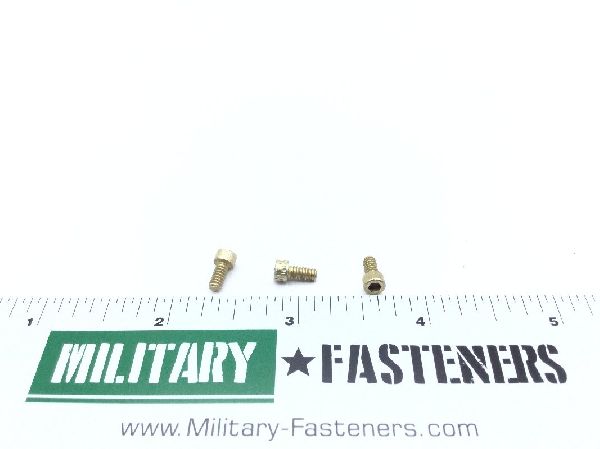

MS16997-9 Socket Head Cap Screw (5)

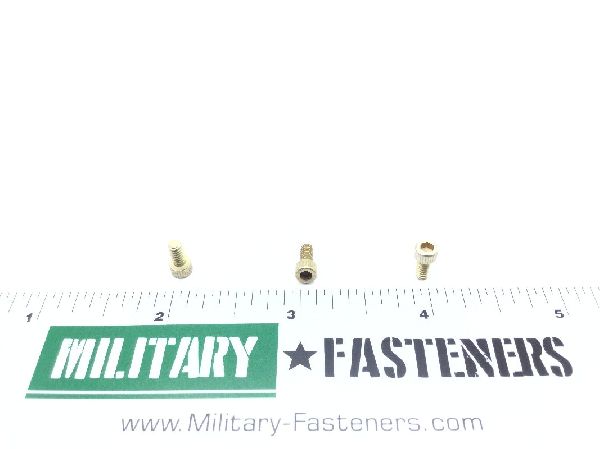

MS16997-9 Socket Head Cap Screw (6)
MS16997-9 Socket Head Cap Screw
MS16997-9 Socket Head Cap Screw (2)
MS16997-9 Socket Head Cap Screw (3)
MS16997-9 Socket Head Cap Screw (4)
MS16997-9 Socket Head Cap Screw (5)
MS16997-9 Socket Head Cap Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS16997-9 Socket Head Cap Screw

Product Series
MS
ECCN
EAR99
Schedule
7318.15.9000
Price per Unit $1.31
Units per Pack 25
Price per Pack $32.75
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:
Total Packs 1
Total Price $32.75
Add item to quote
Head Style
Flat chamfer
Material
Steel
Thread Class
3a
Fastener Length
0.250 inches
Hardness Rating
36.0 rockwell c and 45.0 rockwell c
Head Height
Between 0.108 inches and 0.112 inches
Internal Drive Style
Hexagon
Material Specification
66 federal standard single material response
Minimum Yield Strength
130000 pounds per square inch
Thread Diameter
0.112 inches
Thread Direction
Right-hand
Thread Length
0.250 inches
Thread Qty Per Inch (tpi)
40
Thread Series Designator
Unc (coarse thread)
Width Across Flats
0.098 inches
Head Diameter
Between 0.176 inches and 0.183 inches
