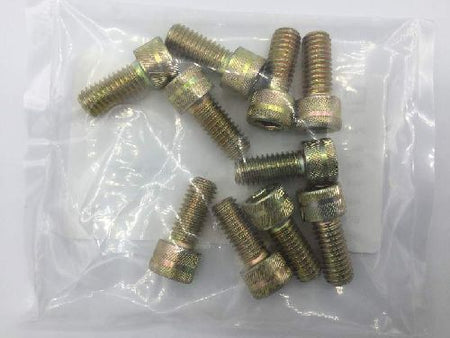

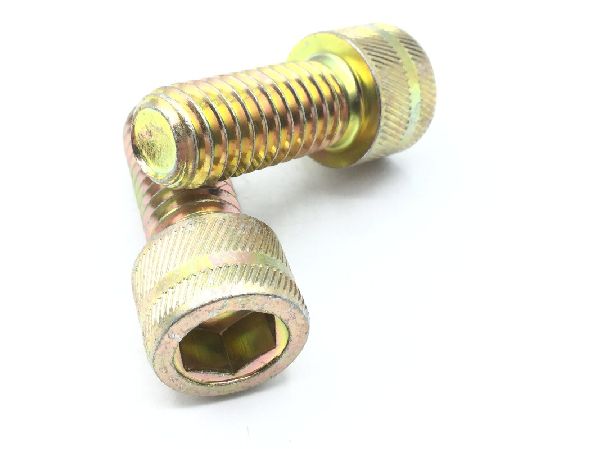

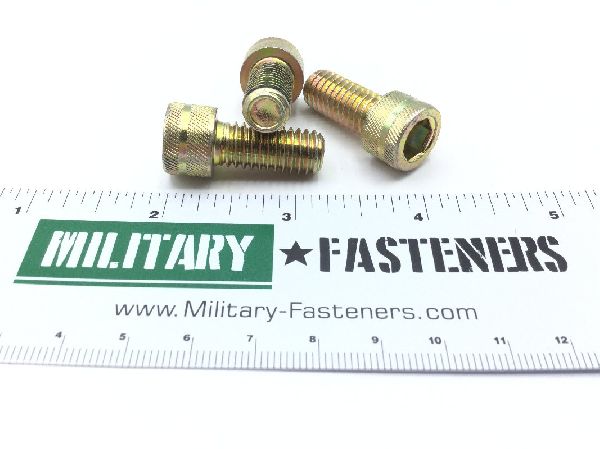

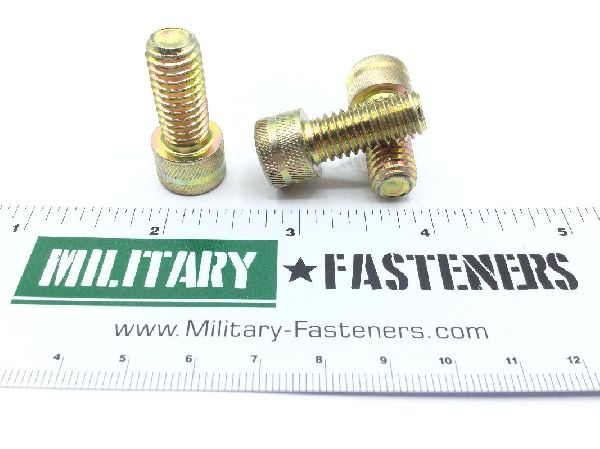

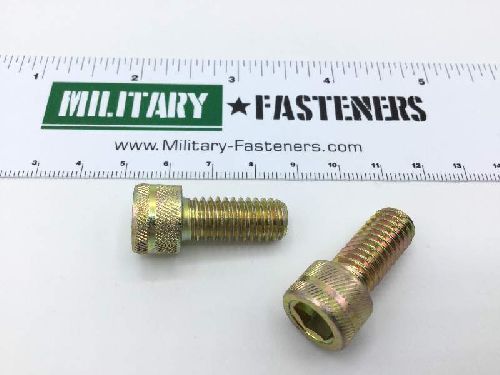

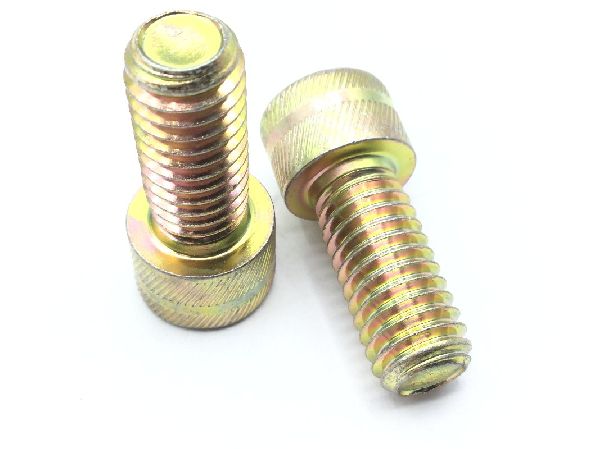

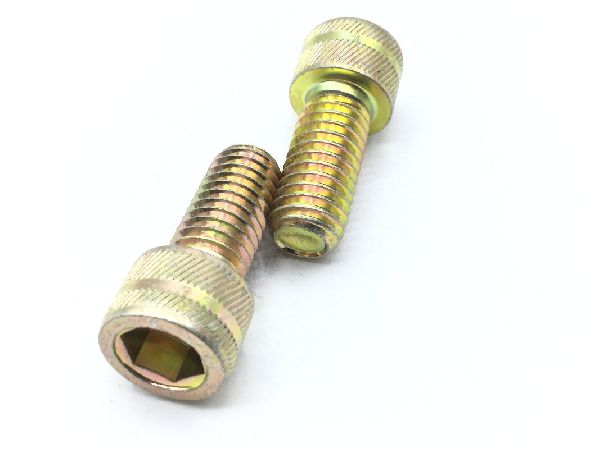

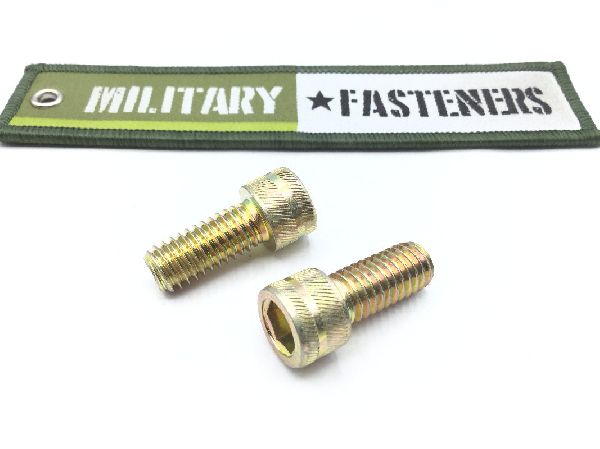

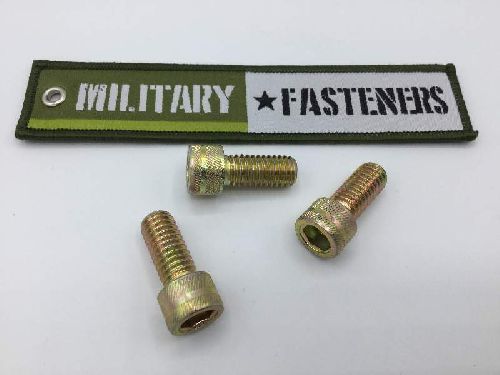

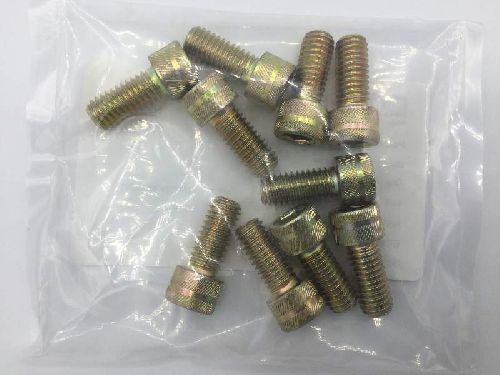

MS16997-98 Socket Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $5.89

Units per Pack 10

Price per Pack $58.90

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $58.90

Add item to quote

Head Style

Flat chamfer

Material

Steel

Surface Treatment

Cl 3 federal specification all treatment responses type 2 qq-p-416

Thread Class

Fastener Length: Between 0.844 inches and 0.875 inches
Hardness Rating: 36.0 rockwell c and 45.0 rockwell c
Head Height: Between 0.368 inches and 0.375 inches
Internal Drive Style: Hexagon
Min. Tensile Strength (psi): 160000 pounds per square inch
Minimum Yield Strength: 130000 pounds per square inch
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 0.719 inches and 0.750 inches
Thread Qty Per Inch (tpi): 16
Thread Series Designator: Unc (coarse thread)
Width Across Flats: Between 0.312 inches and 0.316 inches
Head Diameter: Between 0.550 inches and 0.562 inches
