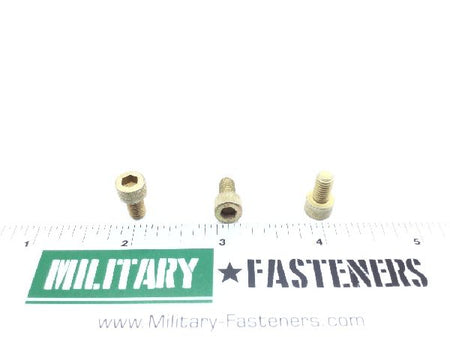

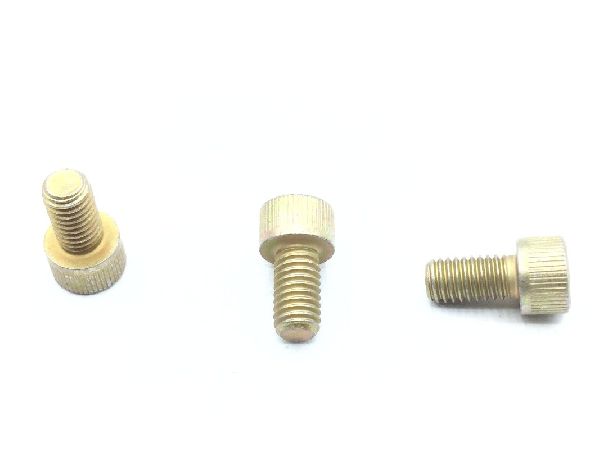

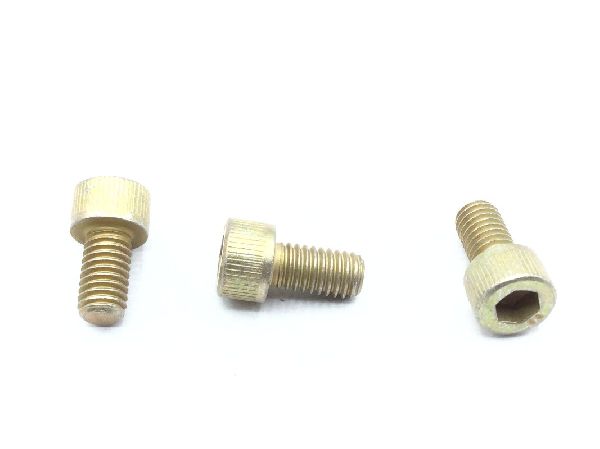

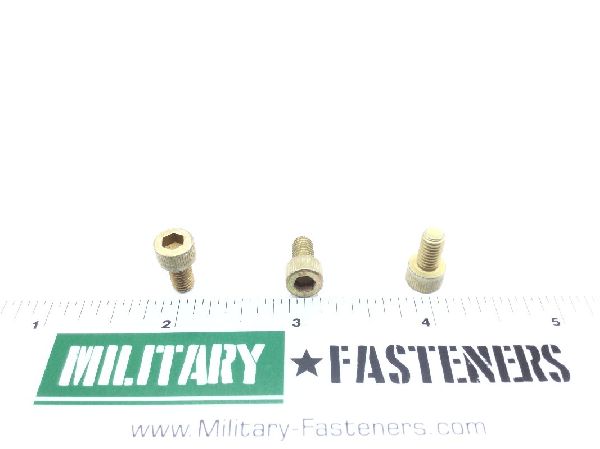

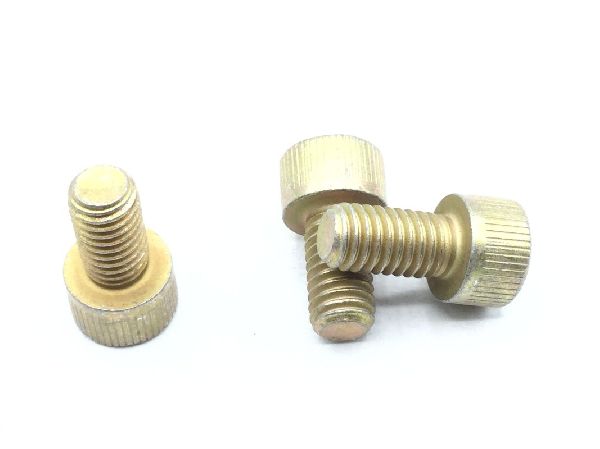

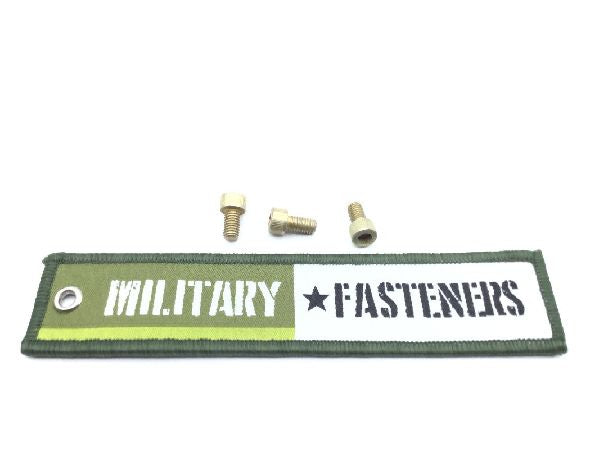

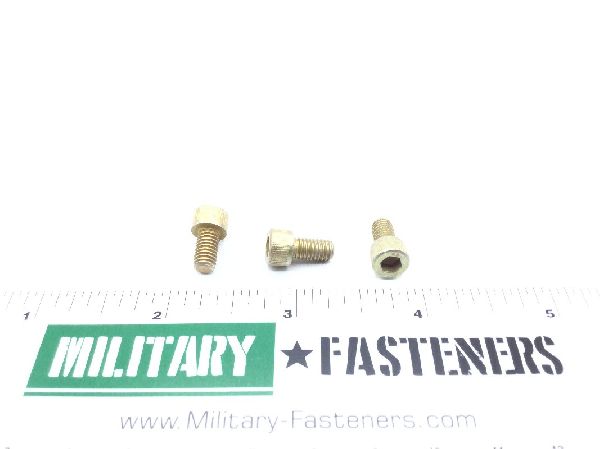

MS16998-26 Socket Head Cap Screw

Product Series
MS
ECCN
EAR99
Schedule
7318.15.2091
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Flat chamfer
Material
Steel
Surface Treatment
Qq-p-416 type 2 cl 3 federal specification single treatment response
Thread Class
3a
Fastener Length
Between 0.344 inches and 0.375 inches
Hardness Rating
36.0 rockwell and 45.0 rockwell
Head Height
Between 0.185 inches and 0.190 inches
Internal Drive Style
Hexagon
Min. Tensile Strength (psi)
160000 pounds per square inch
Minimum Yield Strength
130000 pounds per square inch
Nondefinitive Specification/std Data
6 type
Thread Diameter
0.190 inches
Thread Direction
Right-hand
Thread Length
Between 0.282 inches and 0.375 inches
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unf (fine thread)
Width Across Flats
Between 0.156 inches and 0.159 inches
Head Diameter
Between 0.303 inches and 0.313 inches
