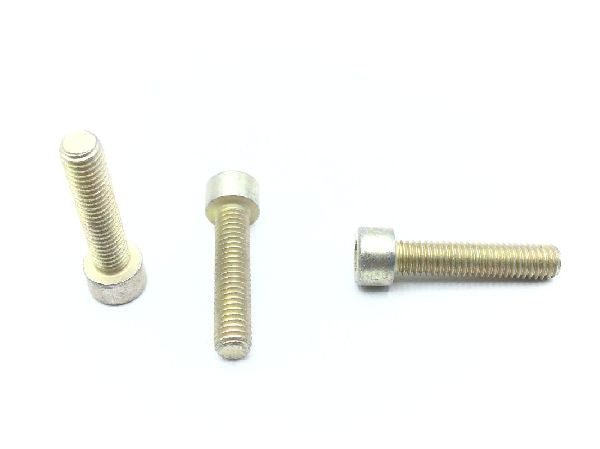

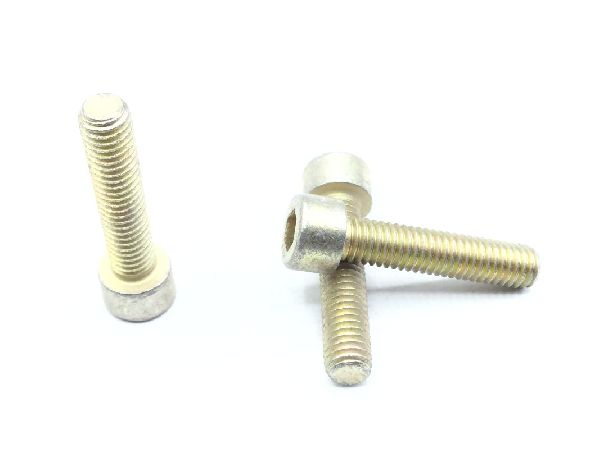

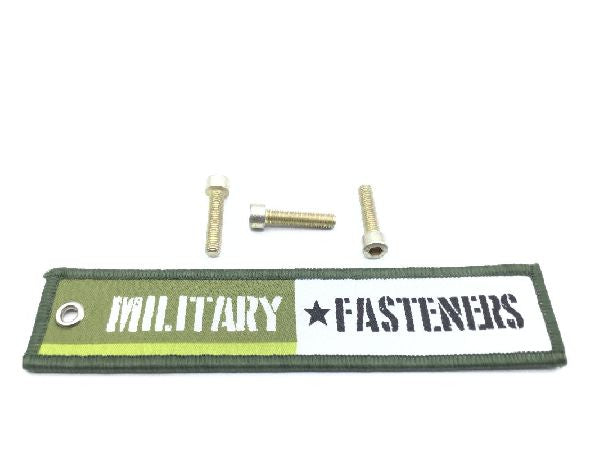

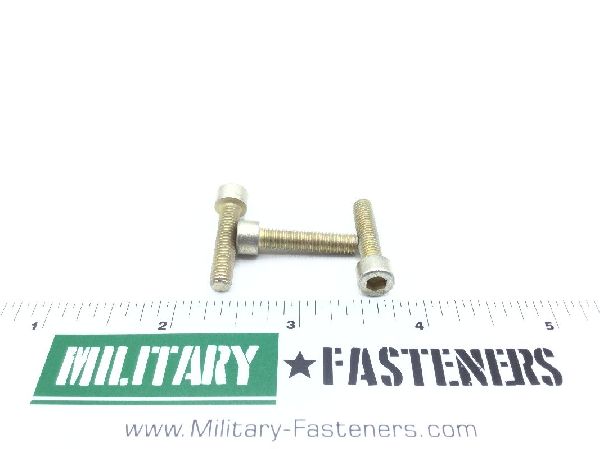

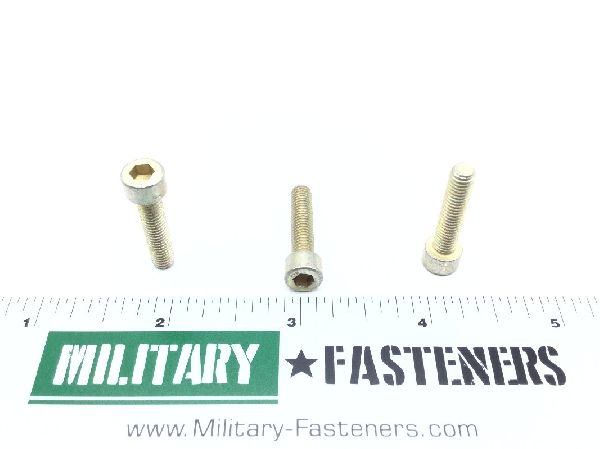

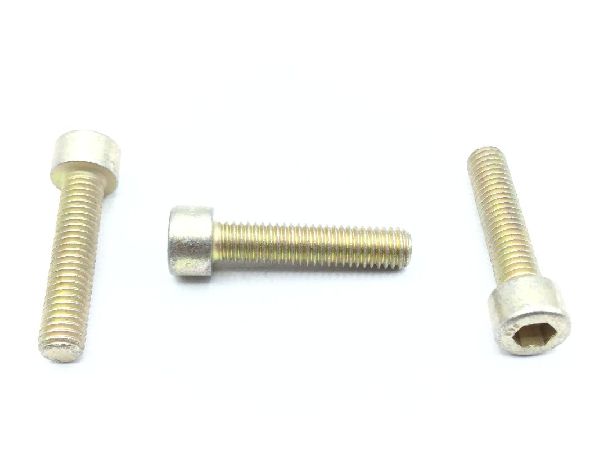

MS16998-30 Socket Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7415.33.0000

Price per Unit $1.46

Units per Pack 25

Price per Pack $36.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $36.50

Add item to quote

Head Style

Flat chamfer

Material

Steel

Thread Class

Fastener Length: Between 0.844 inches and 0.875 inches
Hardness Rating: 36.0 rockwell c and 45.0 rockwell c
Head Height: Between 0.303 inches and 0.312 inches
Internal Drive Style: Hexagon
Min. Tensile Strength (psi): 160000 pounds per square inch
Minimum Yield Strength: 130000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.844 inches and 0.875 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Across Flats: Between 0.156 inches and 0.158 inches
Head Diameter: Between 0.185 inches and 0.190 inches
