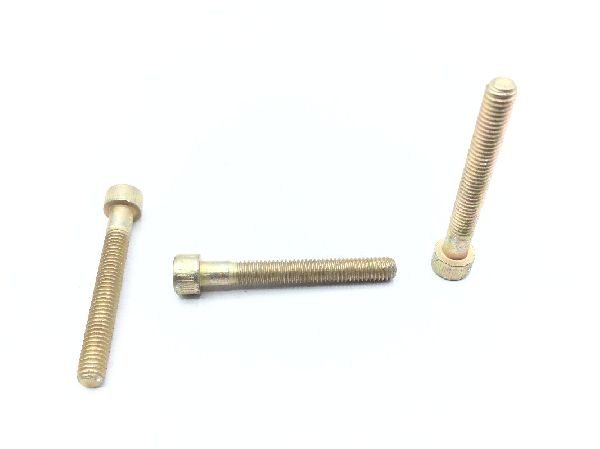

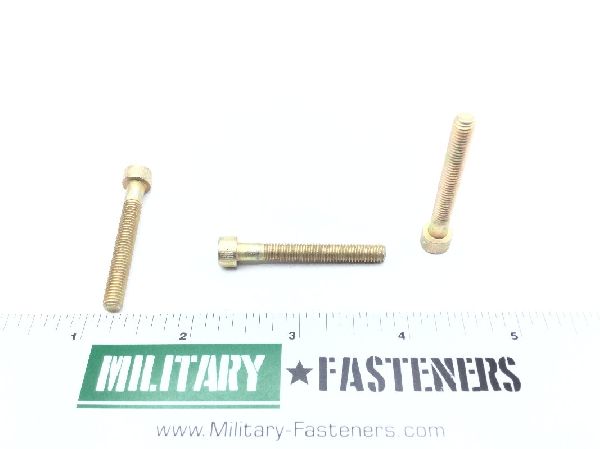

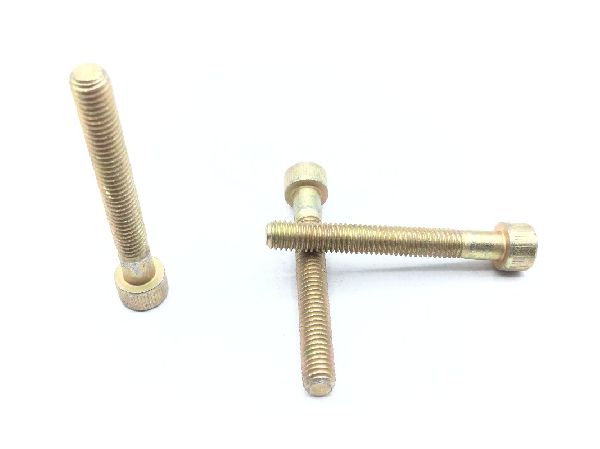

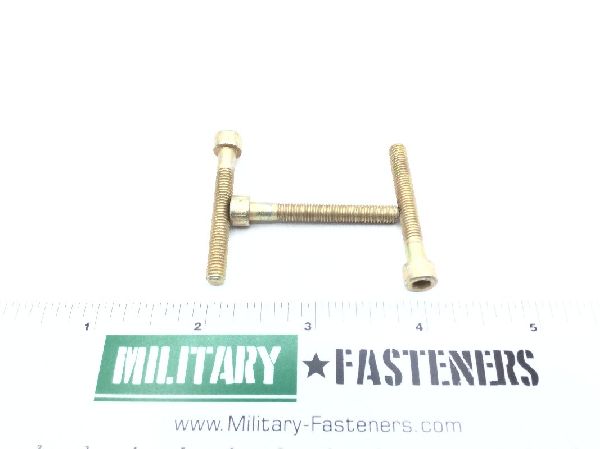

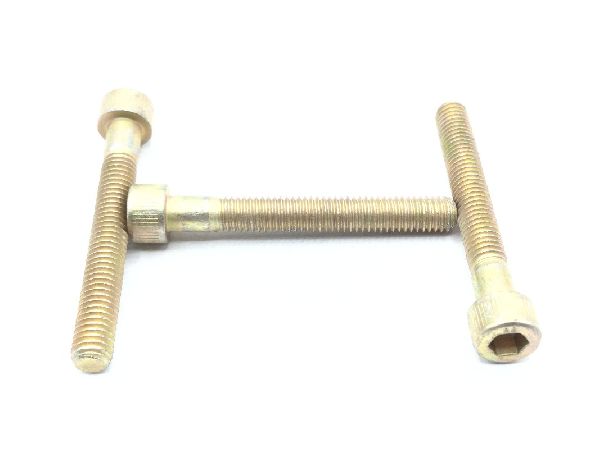

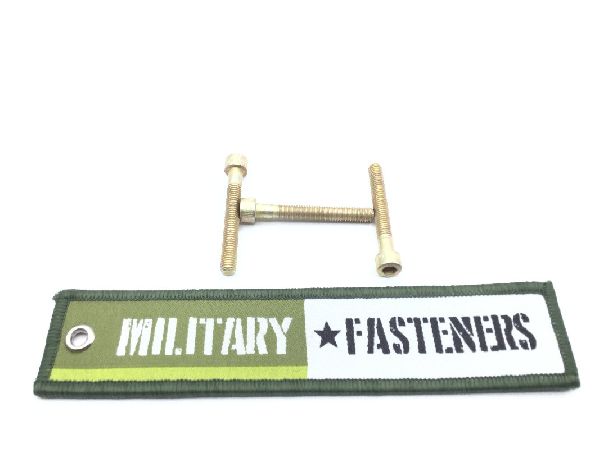

MS16998-33 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat chamfer

Material

Steel

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification single treatment response

Thread Class

Fastener Length: Between 1.460 inches and 1.500 inches
Hardness Rating: 36.0 rockwell c and 45.0 rockwell c
Head Height: Between 0.185 inches and 0.190 inches
Internal Drive Style: Hexagon
Min. Tensile Strength (psi): 160000 pounds per square inch
Minimum Yield Strength: 130000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 1.085 inches and 1.125 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Across Flats: Between 0.156 inches and 0.158 inches
Head Diameter: Between 0.303 inches and 0.312 inches
