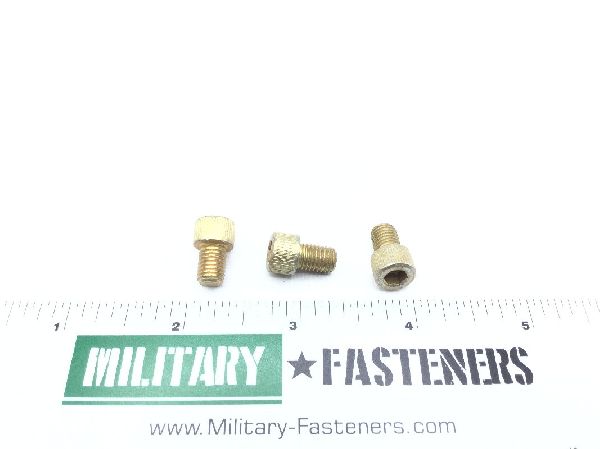

MS16998-40 Socket Head Cap Screw

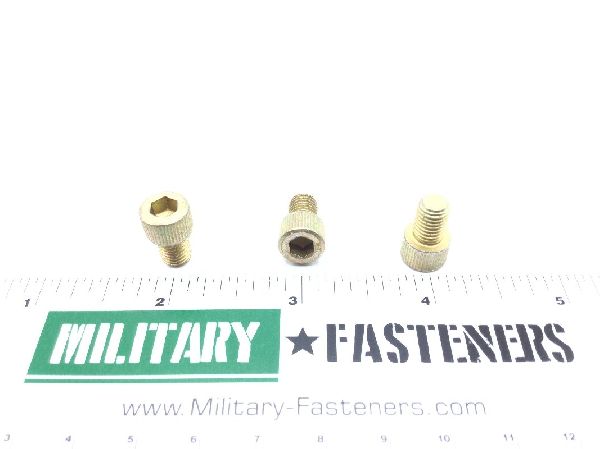

MS16998-40 Socket Head Cap Screw (2)

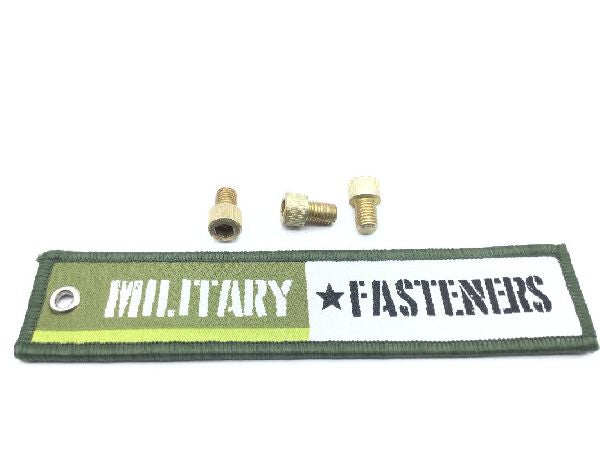

MS16998-40 Socket Head Cap Screw (3)

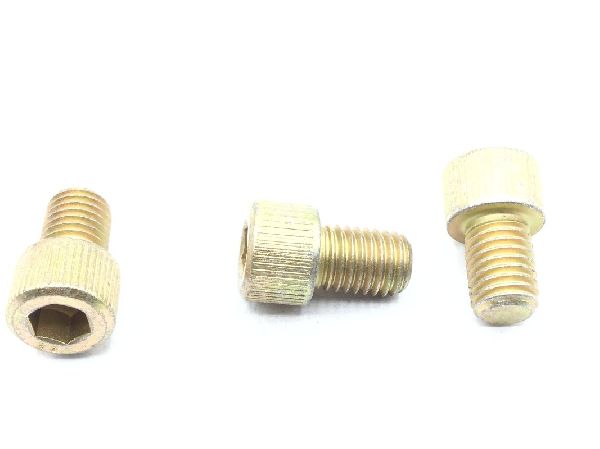

MS16998-40 Socket Head Cap Screw (4)

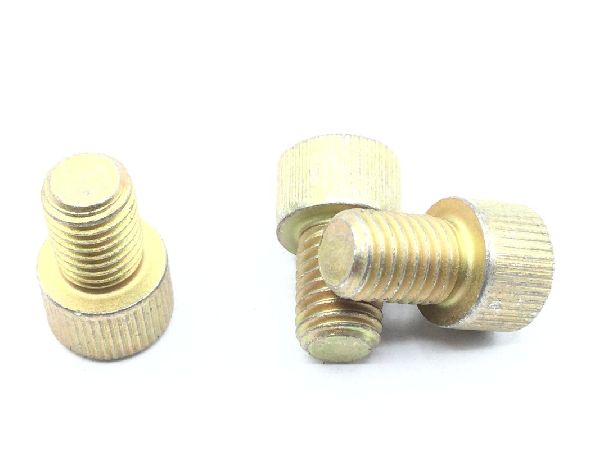

MS16998-40 Socket Head Cap Screw (5)

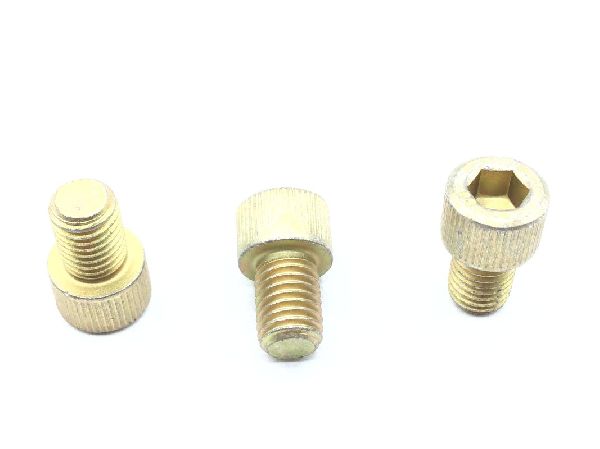

MS16998-40 Socket Head Cap Screw (6)

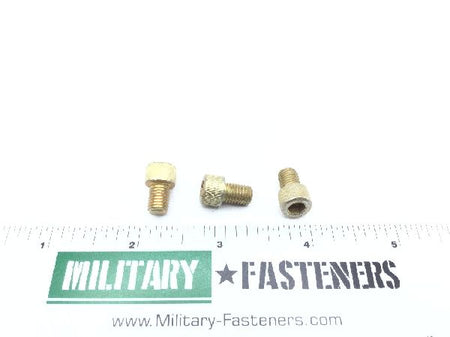

MS16998-40 Socket Head Cap Screw
MS16998-40 Socket Head Cap Screw (2)
MS16998-40 Socket Head Cap Screw (3)
MS16998-40 Socket Head Cap Screw (4)
MS16998-40 Socket Head Cap Screw (5)
MS16998-40 Socket Head Cap Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS16998-40 Socket Head Cap Screw

Product Series
MS
ECCN
EAR99
Schedule
7318.15.2091
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Flat chamfer
Material
Steel
Surface Treatment
Qq-p-416 type 2 cl 3 federal specification single treatment response
Thread Class
3a
Fastener Length
Between 0.344 inches and 0.375 inches
Hardness Rating
36.0 rockwell c and 45.0 rockwell c
Head Height
Between 0.244 inches and 0.250 inches
Internal Drive Style
Hexagon
Min. Tensile Strength (psi)
160000 pounds per square inch
Minimum Yield Strength
130000 pounds per square inch
Nondefinitive Specification/std Data
6 type
Thread Diameter
0.250 inches
Thread Direction
Right-hand
Thread Length
Between 0.273 inches and 0.375 inches
Thread Qty Per Inch (tpi)
28
Thread Series Designator
Unf (fine thread)
Width Across Flats
Between 0.187 inches and 0.190 inches
Head Diameter
Between 0.365 inches and 0.375 inches
