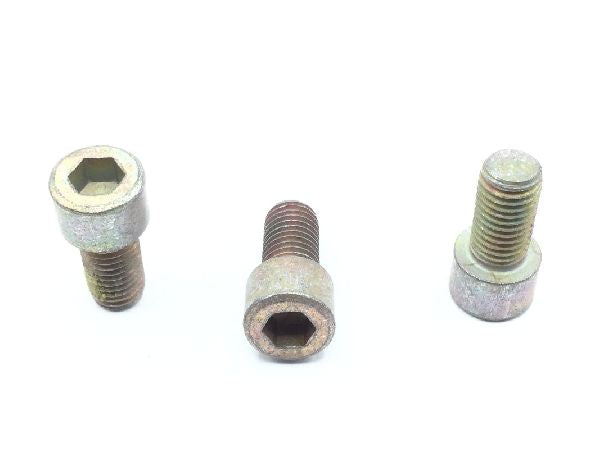

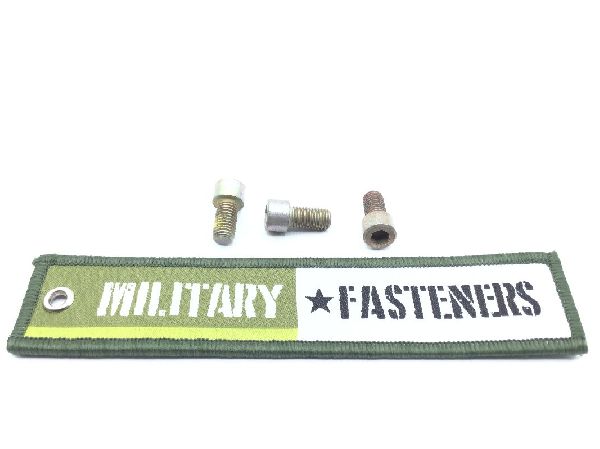

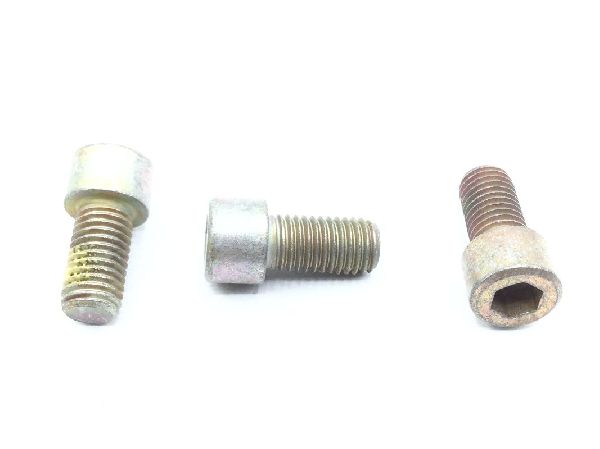

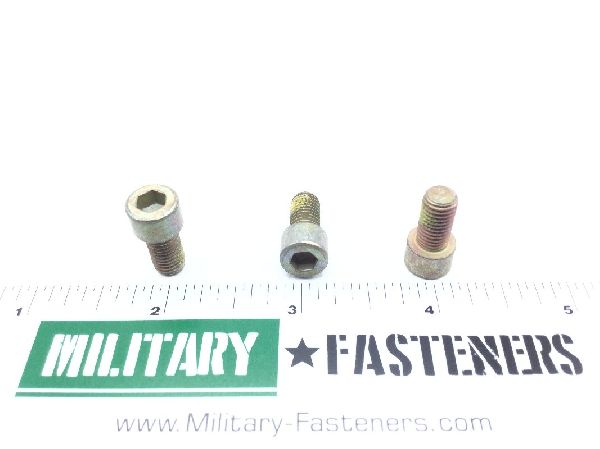

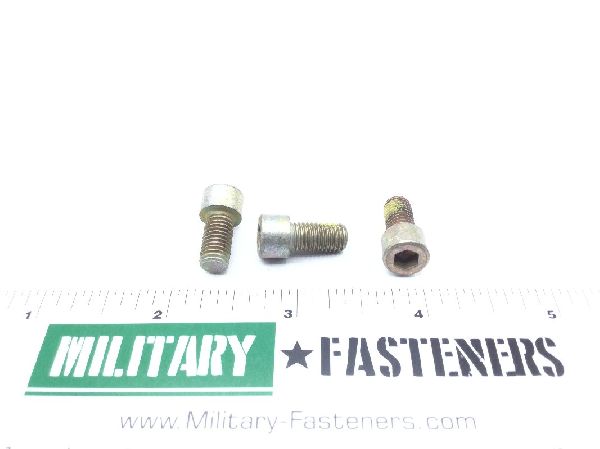

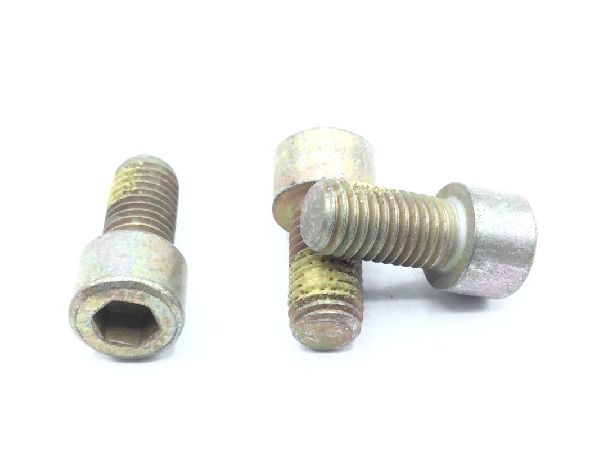

MS16998-41L Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.79

Units per Pack 50

Price per Pack $39.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $39.50

Add item to quote

Head Style

Flat chamfer

Material

Steel fastener

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification single treatment response

Thread Class

Fastener Length: Between 0.469 inches and 0.500 inches
Hardness Rating: 38.0 rockwell c and 45.0 rockwell c
Head Height: Between 0.244 inches and 0.250 inches
Internal Drive Style: Hexagon
Locking Feature: Patch threads or strip threads
Min. Tensile Strength (psi): 160000 pounds per square inch
Minimum Yield Strength: 150000 pounds per square inch
Nondefinitive Specification/std Data: 6 type
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.398 inches and 0.500 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Across Flats: Between 0.1875 inches and 0.1900 inches
Head Diameter: Between 0.365 inches and 0.375 inches
