Home » MS16998-46 Socket Head Cap Screw

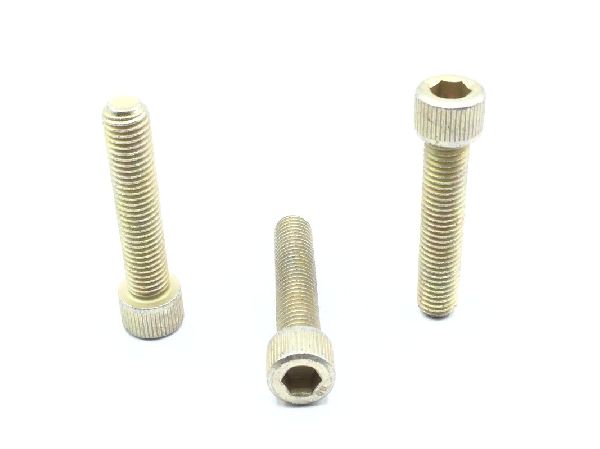

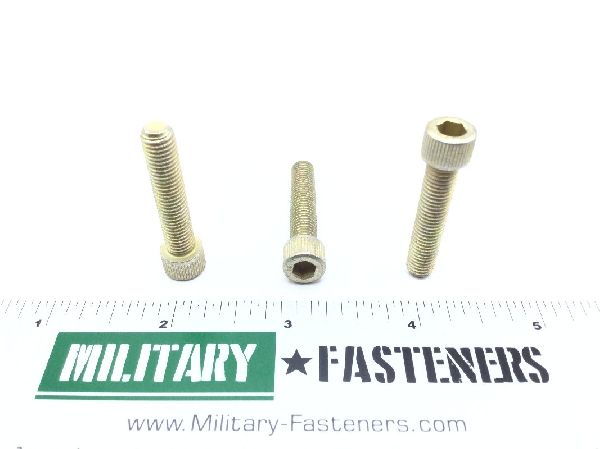

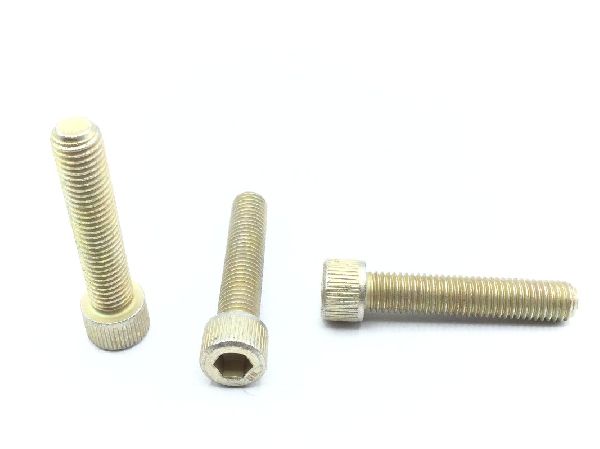

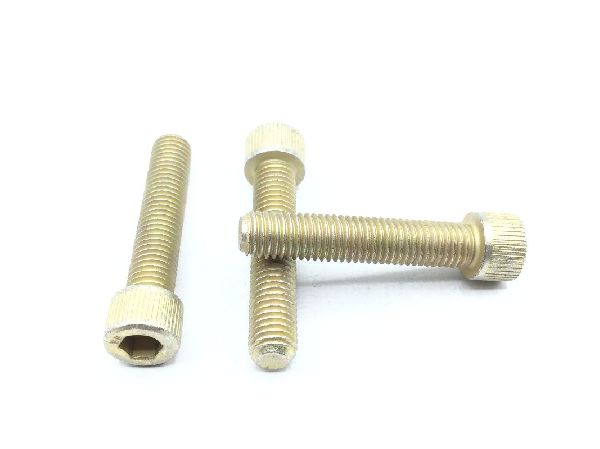

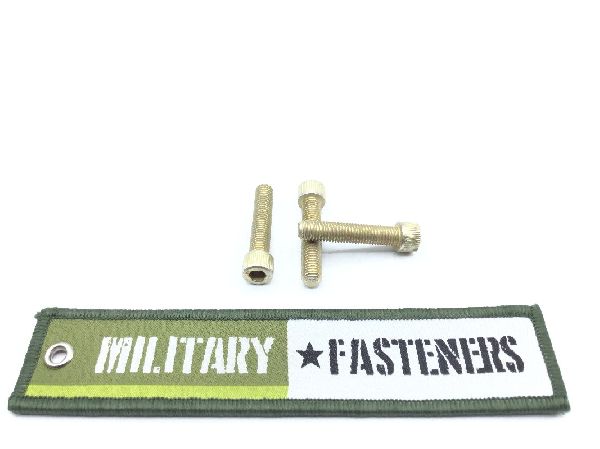

MS16998-46 Socket Head Cap Screw
MS16998-46 Socket Head Cap Screw (2)
MS16998-46 Socket Head Cap Screw (3)
MS16998-46 Socket Head Cap Screw (4)
MS16998-46 Socket Head Cap Screw (5)
MS16998-46 Socket Head Cap Screw
MS16998-46 Socket Head Cap Screw (2)
MS16998-46 Socket Head Cap Screw (3)
MS16998-46 Socket Head Cap Screw (4)
MS16998-46 Socket Head Cap Screw (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS16998-46 Socket Head Cap Screw

Product Series
MS
ECCN
EAR99
Schedule
7318.15.9000
Price per Unit $1.95
Units per Pack 25
Price per Pack $48.75
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:
Total Packs 1
Total Price $48.75
Add item to quote
Head Style
Flat chamfer
Material
Steel
Surface Treatment
Qq-p-416 type 2 cl 3 federal specification single treatment response
Thread Class
3a
Fastener Length
Between 1.210 inches and 1.250 inches
Hardness Rating
36.0 rockwell c and 45.0 rockwell c
Head Height
Between 0.244 inches and 0.250 inches
Internal Drive Style
Hexagon
Min. Tensile Strength (psi)
160000 pounds per square inch
Minimum Yield Strength
130000 pounds per square inch
Thread Diameter
0.250 inches
Thread Direction
Right-hand
Thread Length
Between 1.210 inches and 1.250 inches
Thread Qty Per Inch (tpi)
28
Thread Series Designator
Unf (fine thread)
Width Across Flats
Between 0.187 inches and 0.190 inches
Head Diameter
Between 0.365 inches and 0.375 inches
