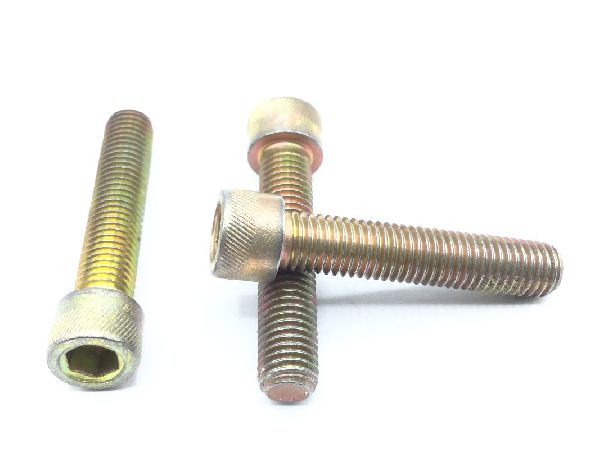

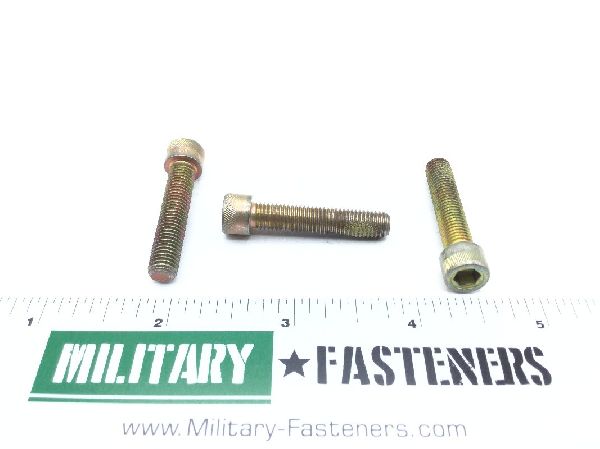

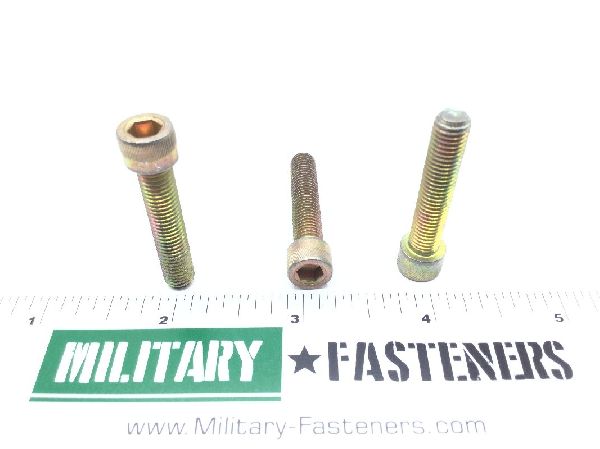

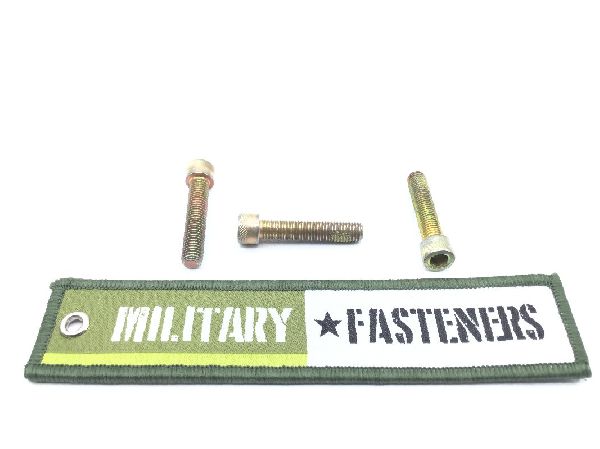

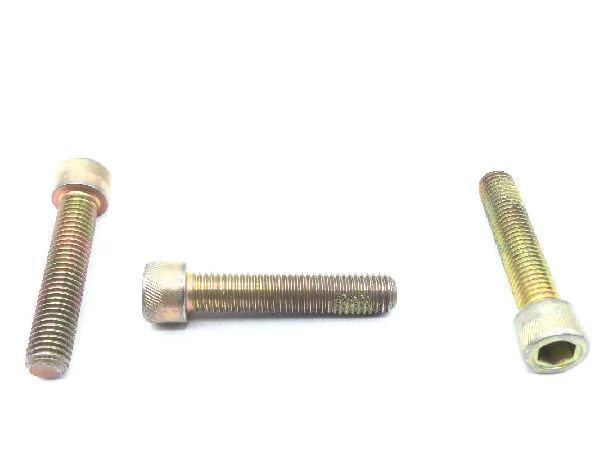

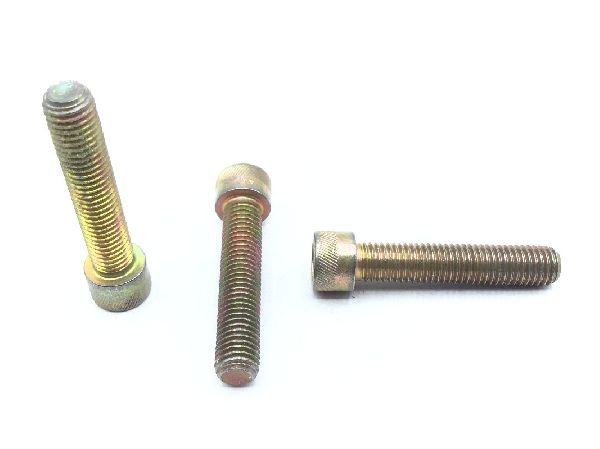

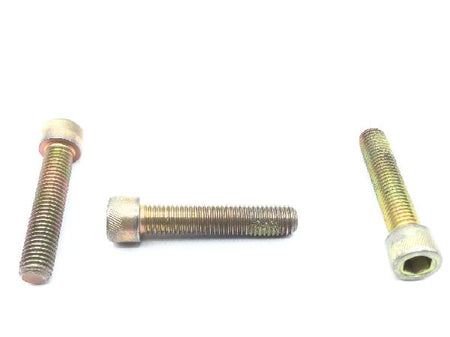

MS16998-46L Socket Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat chamfer

Material

Plastic polyamide locking feature

Surface Treatment

Type 2 class 2 federal specification single treatment response fastener qq-p-416

Thread Class

Fastener Length: Between 1.210 inches and 1.250 inches
Hardness Rating: 38.0 rockwell c and 45.0 rockwell c
Head Height: Between 0.244 inches and 0.250 inches
Internal Drive Style: Hexagon
Locking Feature: Patch threads or pellet threads or strip threads
Min. Tensile Strength (psi): 180000 pounds per square inch
Minimum Yield Strength: 155000 pounds per square inch
Specification Data: 80205-nas1351 professional/industrial association standard
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 1.139 inches and 1.250 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unrf
Width Across Flats: Between 0.187 inches and 0.190 inches
Head Diameter: Between 0.365 inches and 0.375 inches
