MS16998-73 Machine Screw

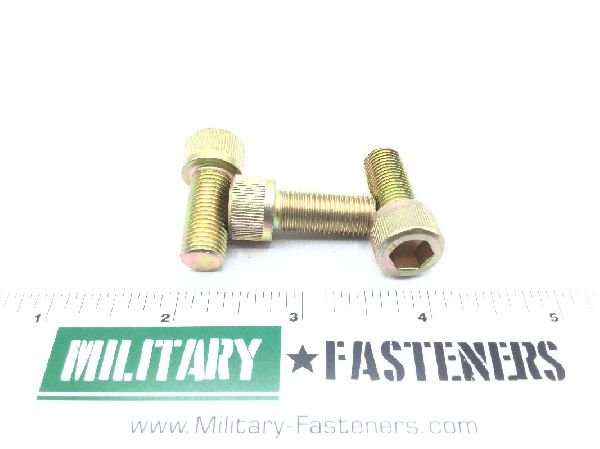

MS16998-73 Machine Screw (2)

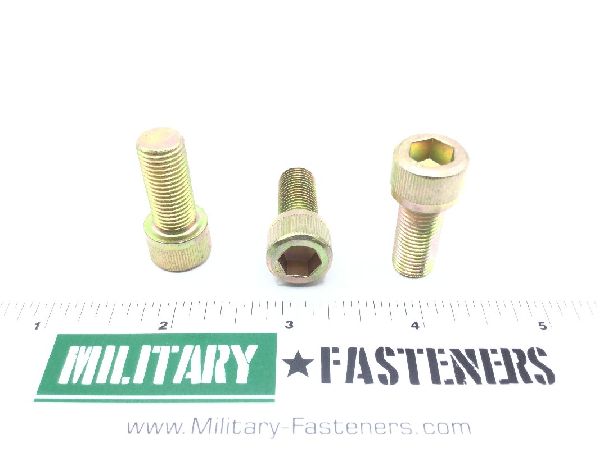

MS16998-73 Machine Screw (3)

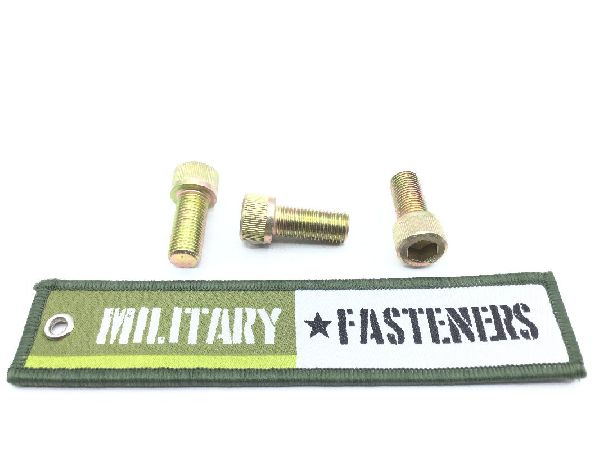

MS16998-73 Machine Screw (4)

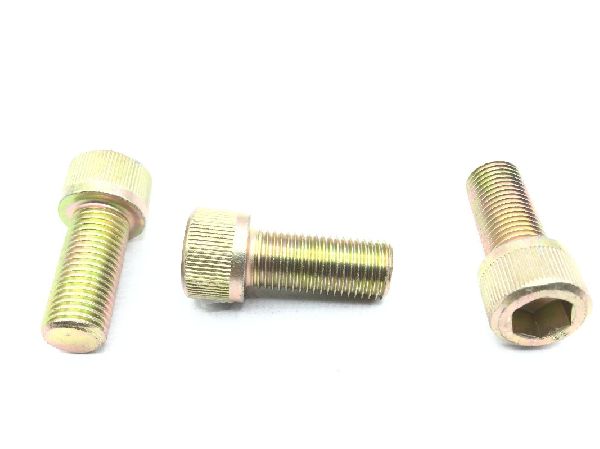

MS16998-73 Machine Screw (5)

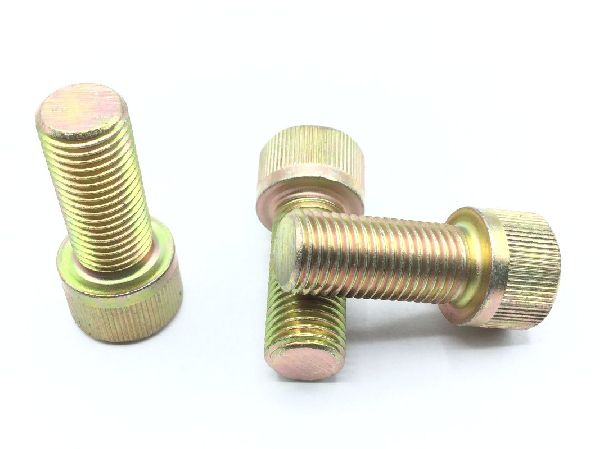

MS16998-73 Machine Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS16998-73 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $36.73

Units per Pack 1

Price per Pack $36.73

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $36.73

Add item to quote

Head Style

Flat chamfer

Material

Steel

Surface Treatment

Qq-p-416 type 2 cl 2 federal specification single treatment response

Thread Class

3a

Fastener Length: 0.875 inches
Head Height: Between 0.368 inches and 0.375 inches
Internal Drive Style: Hexagon
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 0.875 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Across Flats: 0.312 inches
Head Diameter: Between 0.550 inches and 0.562 inches
