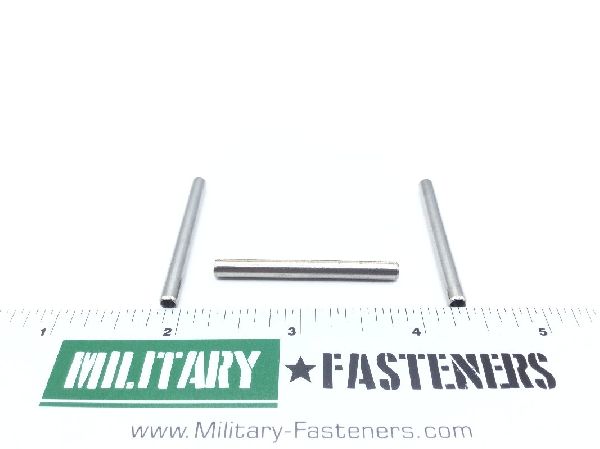

MS171569 Spring Pin

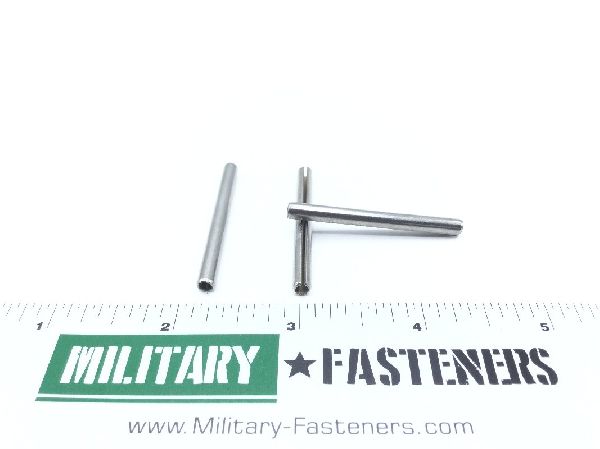

MS171569 Spring Pin (2)

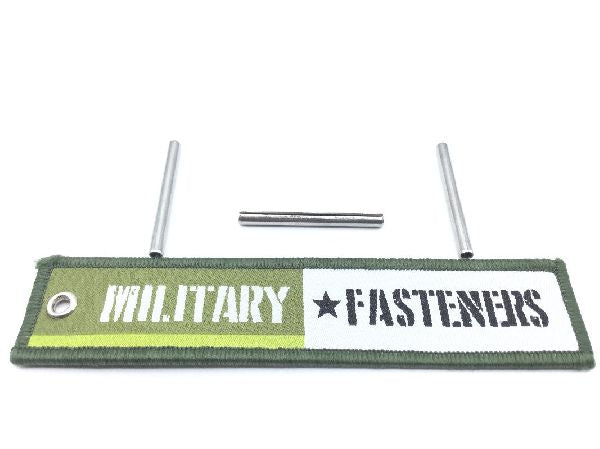

MS171569 Spring Pin (3)
MS171569 Spring Pin (4)
MS171569 Spring Pin (5)

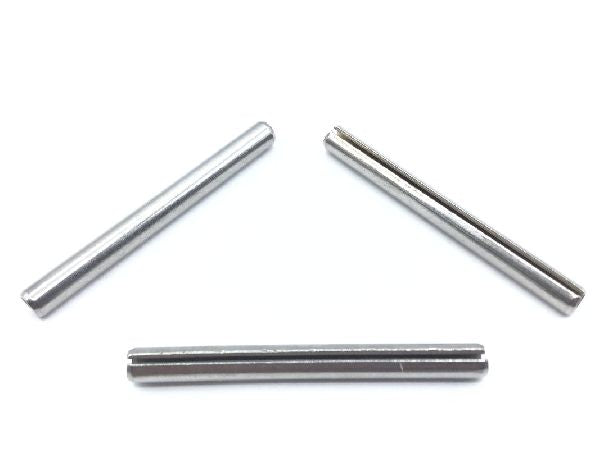

MS171569 Spring Pin (6)
MS171569 Spring Pin
MS171569 Spring Pin (2)
MS171569 Spring Pin (3)
MS171569 Spring Pin (4)
MS171569 Spring Pin (5)
MS171569 Spring Pin (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS171569 Spring Pin

Product Series
MS
ECCN
EAR99
Schedule
7415.29.0000
Price per Unit $1.04
Units per Pack 50
Price per Pack $52.00
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:
Total Packs 1
Total Price $52.00
Add item to quote
Material
Steel comp 410
Overall Length
Between 1.605 inches and 1.645 inches
Hardness Rating
83.0 rockwell superficial 15-n and 87.0 rockwell superficial 15-n
Material Specification
Ams 5506 assn standard single material response
Material Thickness
0.032 inches
Style Designator
Slotted
Diameter
0.156 inches
