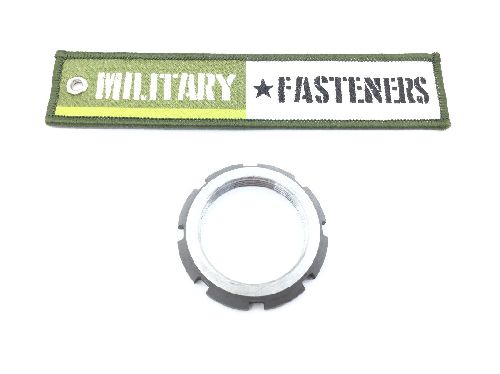

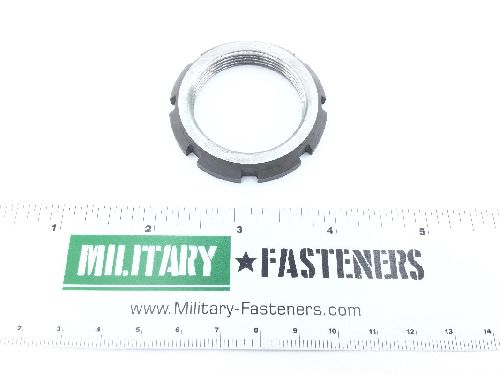

MS172243 Round Plain Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $27.37

Units per Pack 5

Price per Pack $136.85

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $136.85

Add item to quote

Material

Steel

Surface Treatment

Ams 2481 assn standard single treatment response

Thread Class

Thread Series

Unjs

Thread Size

1.376 inches

Countersink Angle: 90.0 degrees
Drive Point Depth: Between 0.086 inches and 0.096 inches
Drive Point Quantity: 8
Drive Point Width: 0.188 inches
Hardness Rating: Between 26.0 rockwell c and 32.0 rockwell c
Material Specification: Ams 6381 assn standard 1st material response or ams 6382 assn standard 2nd material response
Nut Diameter: Between 1.891 inches and 1.911 inches
Nut Style: Round
Nut Thickness: Between 0.271 inches and 0.291 inches
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 18
