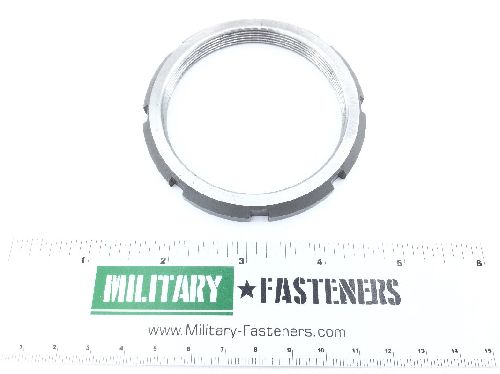

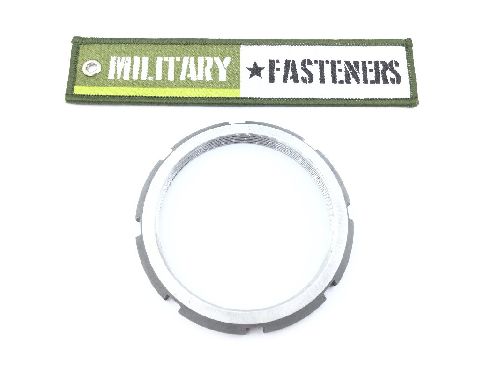

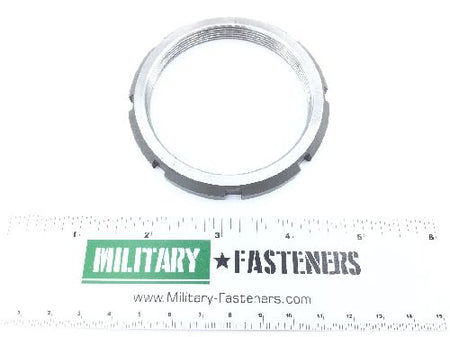

MS172249 Plain Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Surface Treatment

Ams 2481 assn standard single treatment response

Thread Series

Uns

Thread Size

2.548 inches

Countersink Angle: 88.0 degrees second end and 92.0 degrees second end
Drive Point Depth: Between 0.086 inches and 0.096 inches
Drive Point Quantity: 8
Drive Point Width: 0.250 inches
Hardness Rating: Between 26.0 rockwell c and 32.0 rockwell c
Material Specification: Ams 6381 assn standard single material response or ams 6382 assn standard single material response
Nut Diameter: Between 3.110 inches and 3.130 inches
Nut Style: Round
Nut Thickness: 0.344 inches
Thread Direction: Right-hand
Thread Pitch Diameters: +2.5119/+2.5170 inches
Thread Qty Per Inch (tpi): 18
