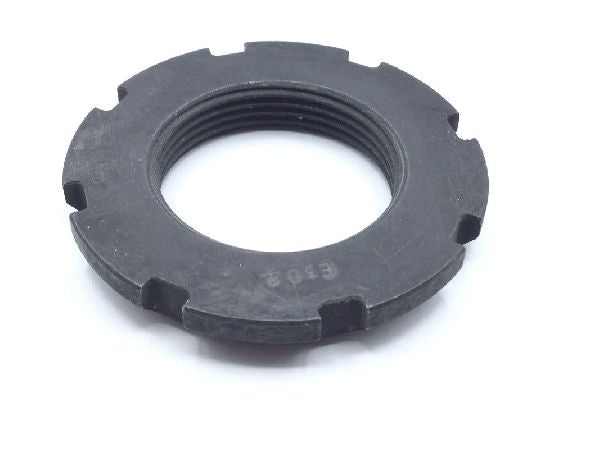

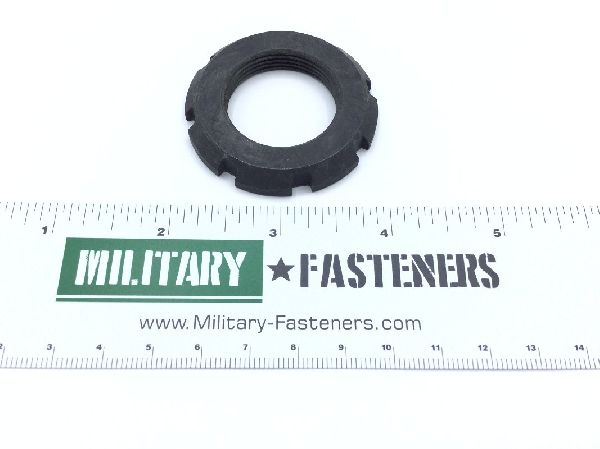

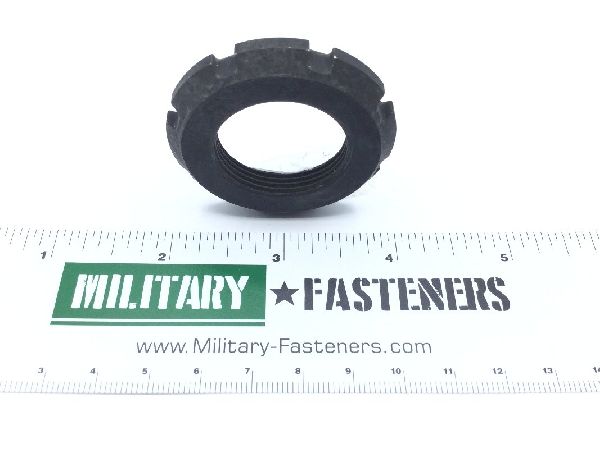

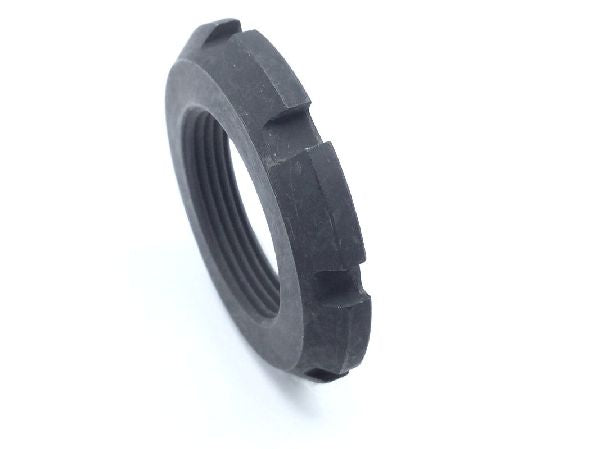

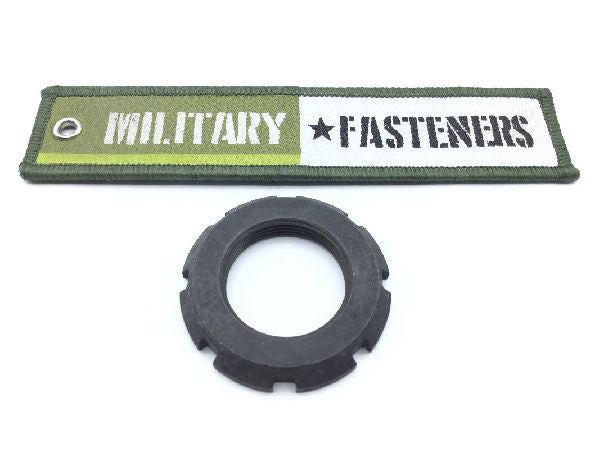

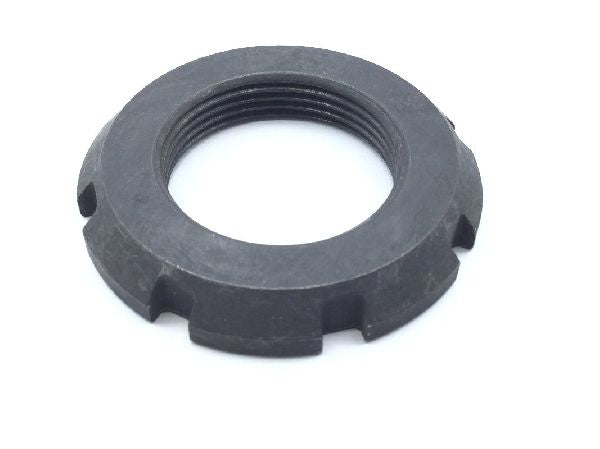

MS172331 Round Plain Nut

MS172331 Round Plain Nut (2)

MS172331 Round Plain Nut (3)

MS172331 Round Plain Nut (4)

MS172331 Round Plain Nut (5)

MS172331 Round Plain Nut (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS172331 Round Plain Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $32.93

Units per Pack 2

Price per Pack $65.86

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $65.86

Add item to quote

Material

Steel comp 4140

Surface Treatment

Ams 2481 assn standard single treatment response

Thread Class

3b

Thread Series

Unef (extra fine thread)

Thread Size

1.125 inches

Drive Point Depth: 0.094 inches
Drive Point Quantity: 8
Drive Point Width: Between 0.178 inches and 0.198 inches
Hardness Rating: Between 26.0 rockwell c and 32.0 rockwell c
Material Specification: Ams 6381 assn standard single material response or ams 6382 assn standard single material response
Nut Diameter: Between 1.860 inches and 1.880 inches
Nut Style: Round
Nut Thickness: Between 0.271 inches and 0.291 inches
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 18
