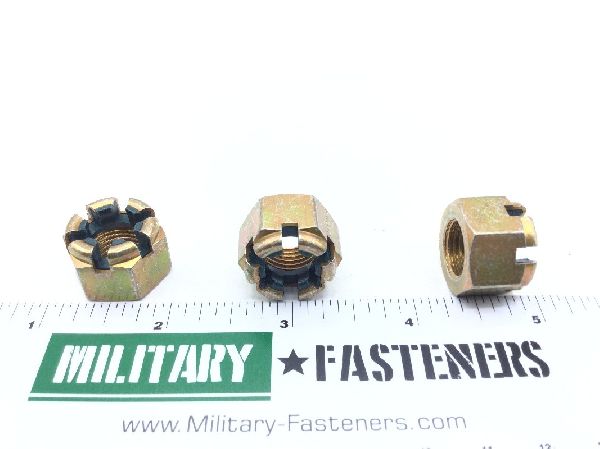

MS17825-8 Self-Locking Slotted Hexagon Nut

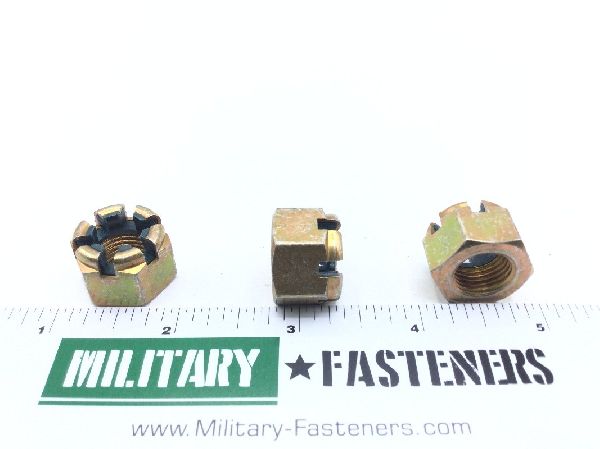

MS17825-8 Self-Locking Slotted Hexagon Nut (2)

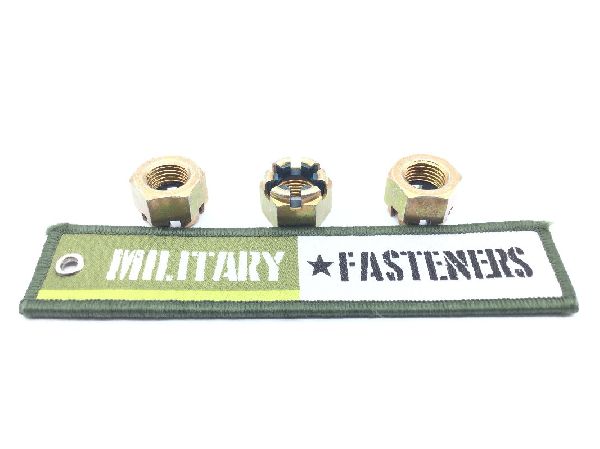

MS17825-8 Self-Locking Slotted Hexagon Nut (3)

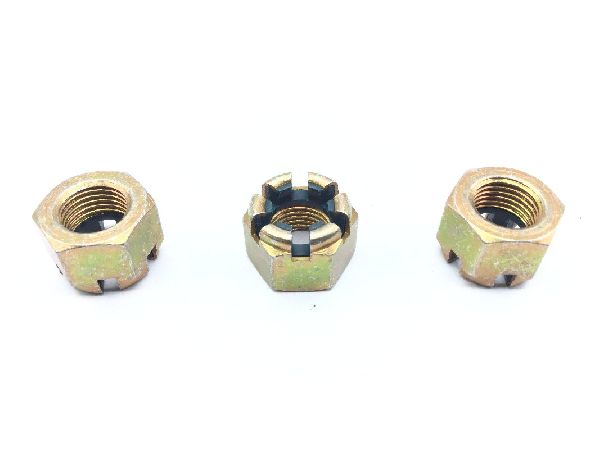

MS17825-8 Self-Locking Slotted Hexagon Nut (4)

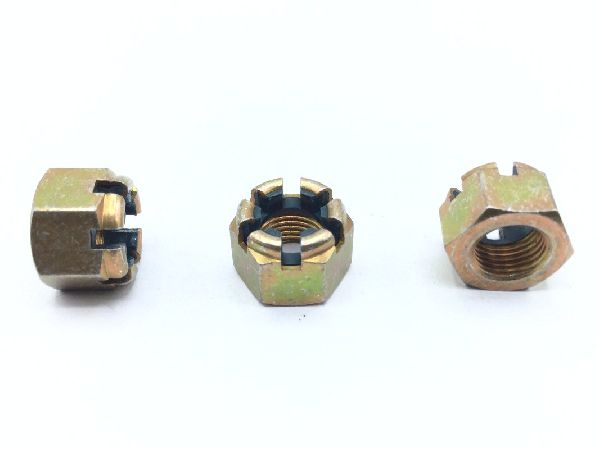

MS17825-8 Self-Locking Slotted Hexagon Nut (5)

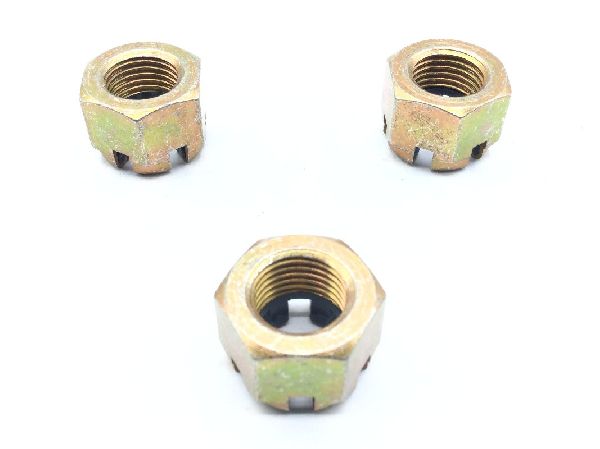

MS17825-8 Self-Locking Slotted Hexagon Nut (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS17825-8 Self-Locking Slotted Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Plastic polyamide locking insert

Surface Treatment

Class 2 federal specification single treatment response except insert type 2 qq-p-416

Thread Class

3b

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.500 inches

Bearing Surface Type: Washer faced
Locking Feature: Prevailing torque with nonmetallic insert
Nut Height: Between 0.548 inches and 0.578 inches
Nut Style: hexagon slotted
Tempurature Rating: 250.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
Width Across Flats: Between 0.741 inches and 0.752 inches
