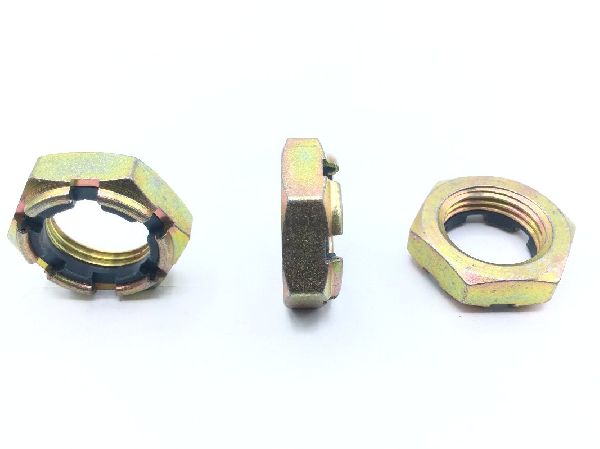

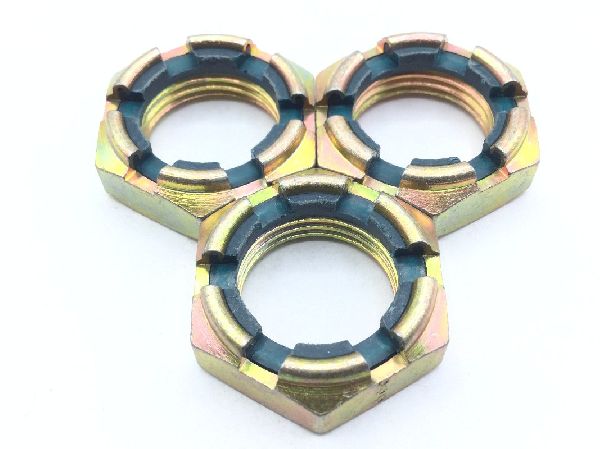

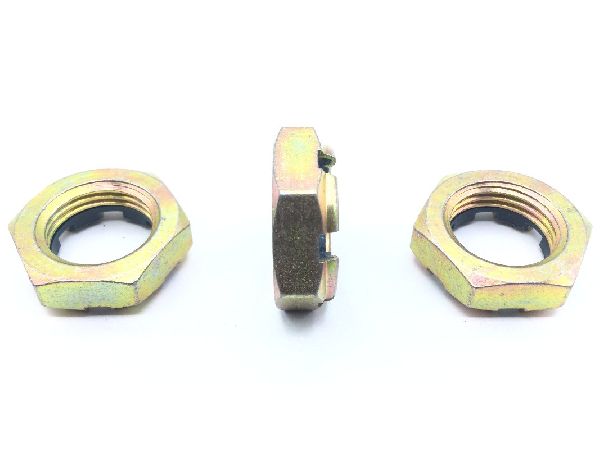

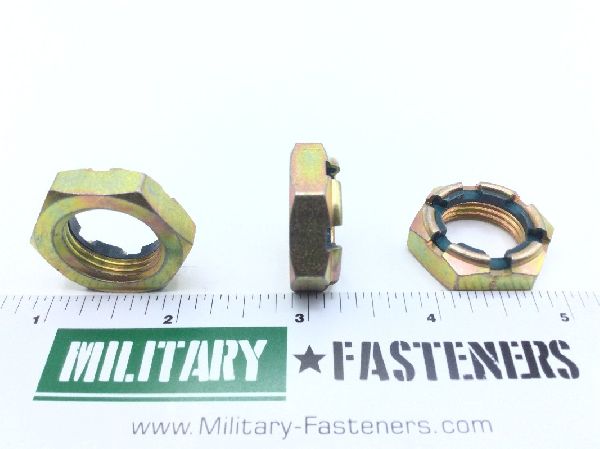

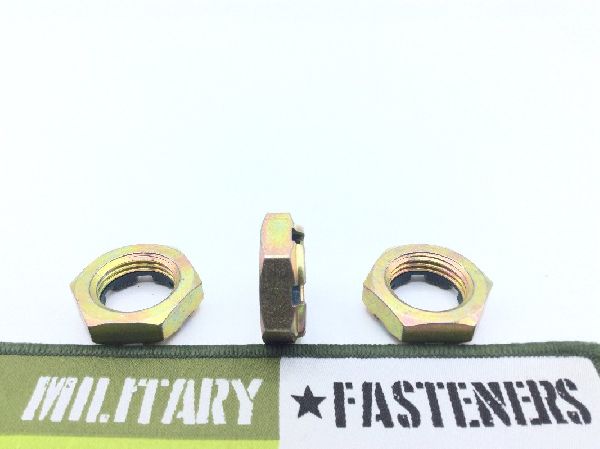

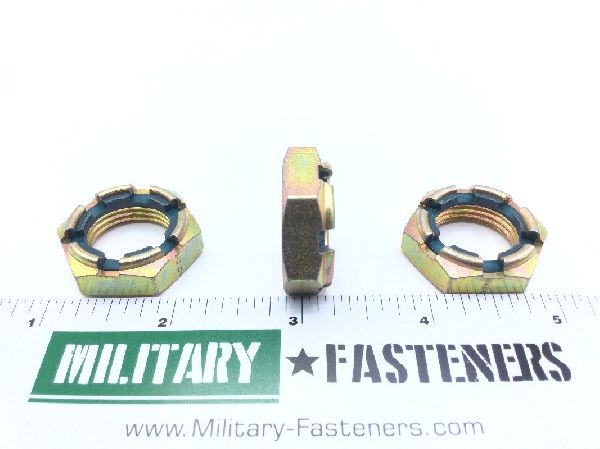

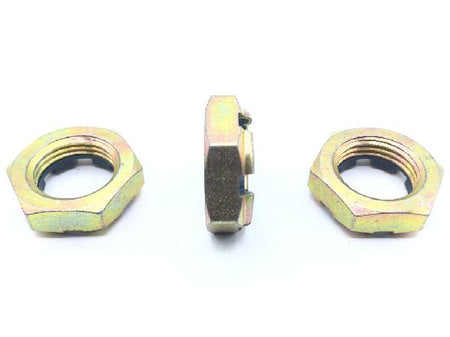

MS17826-12 Self-Locking Slotted Hexagon Nut

MS17826-12 Self-Locking Slotted Hexagon Nut (2)

MS17826-12 Self-Locking Slotted Hexagon Nut (3)

MS17826-12 Self-Locking Slotted Hexagon Nut (4)

MS17826-12 Self-Locking Slotted Hexagon Nut (5)

MS17826-12 Self-Locking Slotted Hexagon Nut (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS17826-12 Self-Locking Slotted Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $15.00

Units per Pack 5

Price per Pack $75.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $75.00

Add item to quote

Material

Steel nut

Surface Treatment

Cl 2 federal specification single treatment response except insert type 2 qq-p-416

Thread Class

3b

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.750 inches

Bearing Surface Type: Washer faced
Locking Feature: Prevailing torque with nonmetallic insert
Nut Height: Between 0.360 inches and 0.390 inches
Nut Style: hexagon slotted
Tempurature Rating: 250.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 16
Width Across Flats: Between 1.052 inches and 1.064 inches
