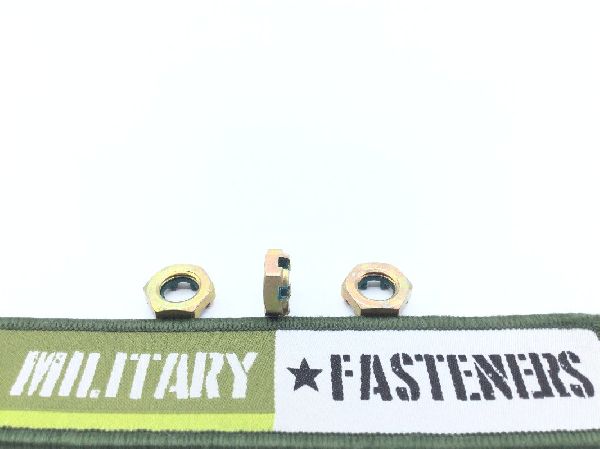

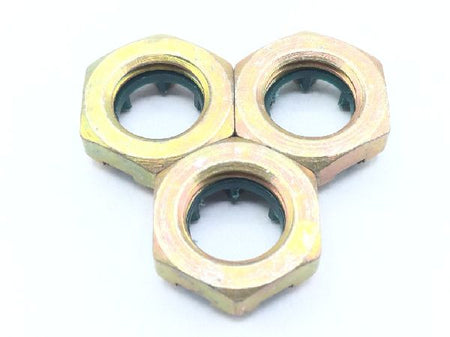

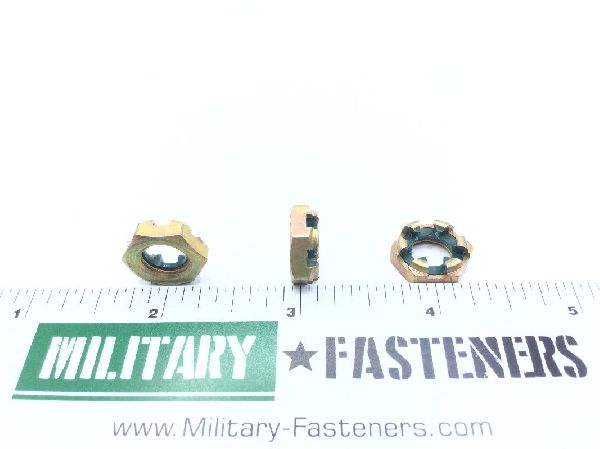

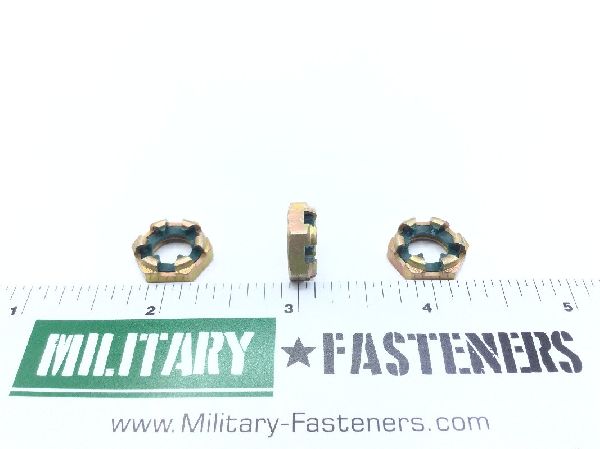

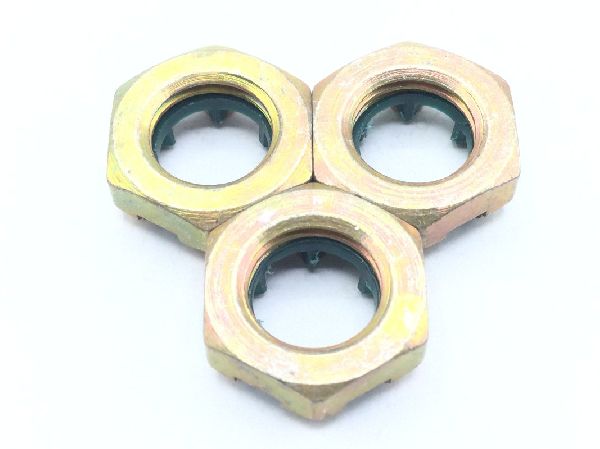

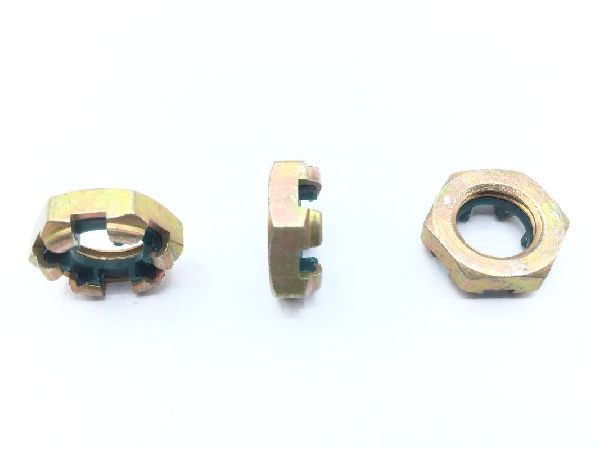

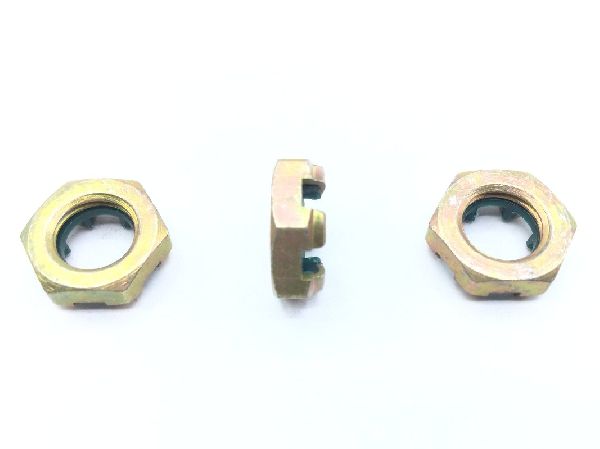

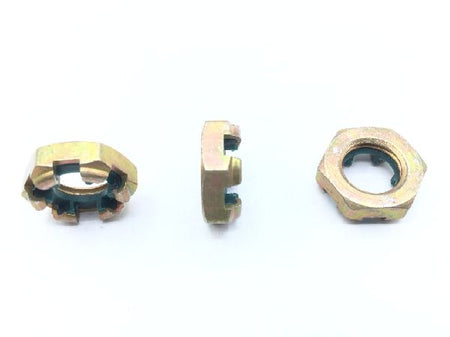

MS17826-6 Self-Locking Slotted Hexagon Nut

MS17826-6 Self-Locking Slotted Hexagon Nut (2)

MS17826-6 Self-Locking Slotted Hexagon Nut (3)

MS17826-6 Self-Locking Slotted Hexagon Nut (4)

MS17826-6 Self-Locking Slotted Hexagon Nut (5)

MS17826-6 Self-Locking Slotted Hexagon Nut (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS17826-6 Self-Locking Slotted Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $5.80

Units per Pack 10

Price per Pack $58.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $58.00

Add item to quote

Material

Steel nut

Surface Treatment

Class 2 federal specification single treatment response except insert type 2 qq-p-416

Thread Class

3b

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.375 inches

Bearing Surface Type: Washer faced
Locking Feature: Prevailing torque with nonmetallic insert
Nut Height: Between 0.204 inches and 0.234 inches
Nut Style: hexagon slotted
Tempurature Rating: 250.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Width Across Flats: Between 0.553 inches and 0.564 inches
