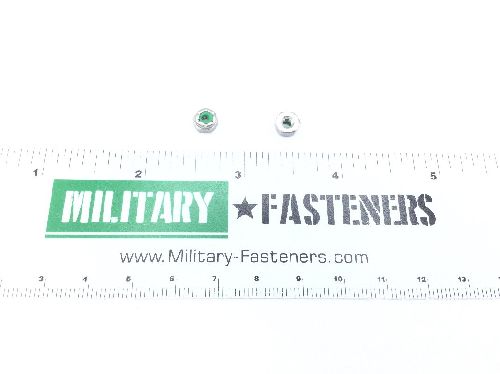

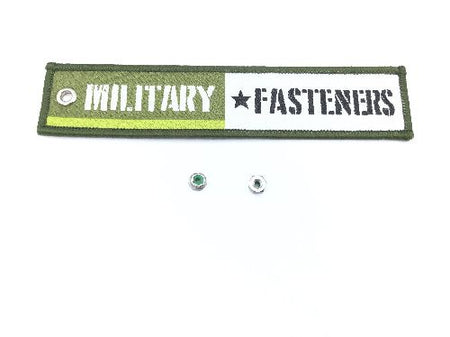

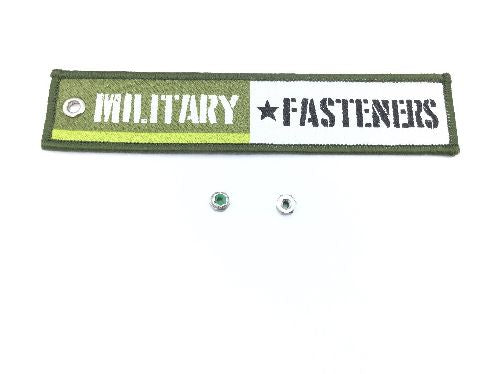

MS17830-04C Self-Locking Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Surface Treatment

Qq-p-35 federal specification single treatment response nut

Thread Class

Thread Series

Unc (coarse thread)

Thread Size

0.112 inches

Bearing Surface Type: Chamfered
Countersink Angle: 88.0 degrees nut
End Application: S-3 aircraft
Locking Feature: Prevailing torque with nonmetallic insert
Material Specification: Astm d4066 assn standard single material response locking insert
Nut Height: Between 0.133 inches and 0.157 inches
Nut Style: Hexagon
Tempurature Rating: 250.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 40
Width Across Flats: Between 0.243 inches and 0.251 inches
