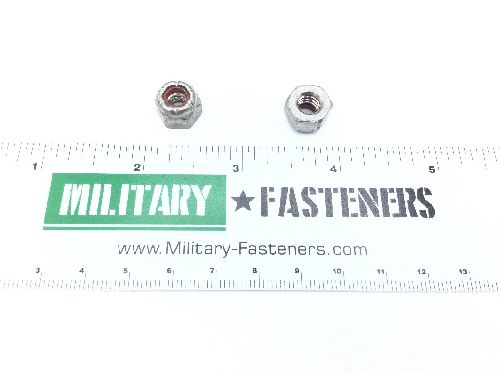

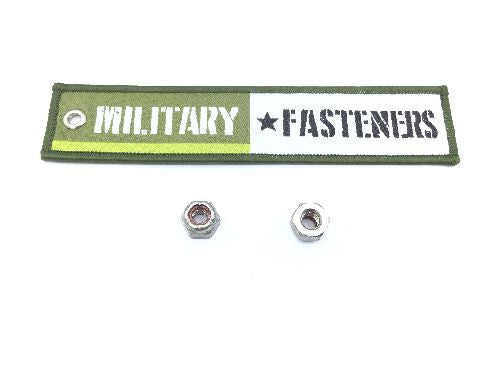

MS17830-4C Self-locking Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Plastic polyhexamethylene amide locking insert

Surface Treatment

Qq-p-35 federal specification single treatment response nut

Thread Class

Thread Series

Unc (coarse thread)

Thread Size

0.25 inches

Bearing Surface Finish: 125 microinches
Bearing Surface Type: Chamfered
Countersink Angle: 88 degrees nut
Locking Feature: Prevailing torque with nonmetallic insert
Material Specification: 66 federal standard all material responses nut
Nut Height: Between 0.24 inches and 0.36 inches
Nut Style: Hexagon
Tempurature Rating: 250 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
Width Across Flats: Between 0.428 inches and 0.439 inches
