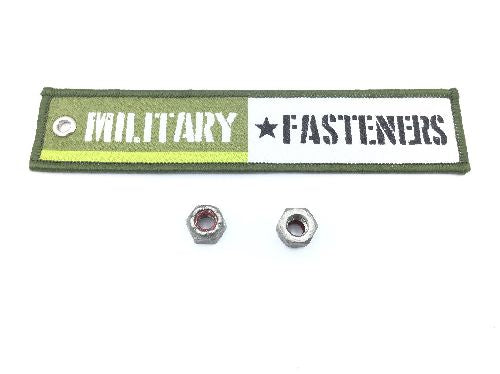

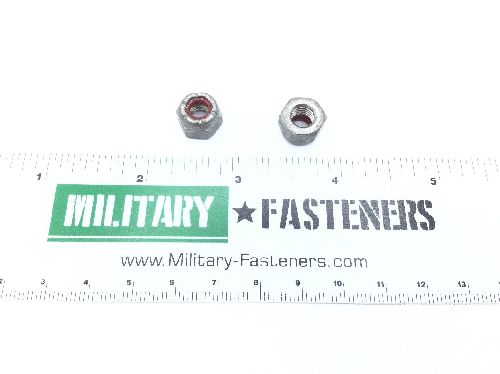

MS17830-4F Self-Locking Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $3.36

Units per Pack 10

Price per Pack $33.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $33.60

Add item to quote

Material

Steel comp 303 nut or steel comp 304 nut

Surface Treatment

Astm a967 assn standard single treatment response nut

Thread Class

3b

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.250 inches

End Application: Mrap - unique nsn - mrap no permanent wsdc identified
Nut Height: Between 0.240 inches and 0.360 inches
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Width Across Flats: Between 0.428 inches and 0.439 inches
