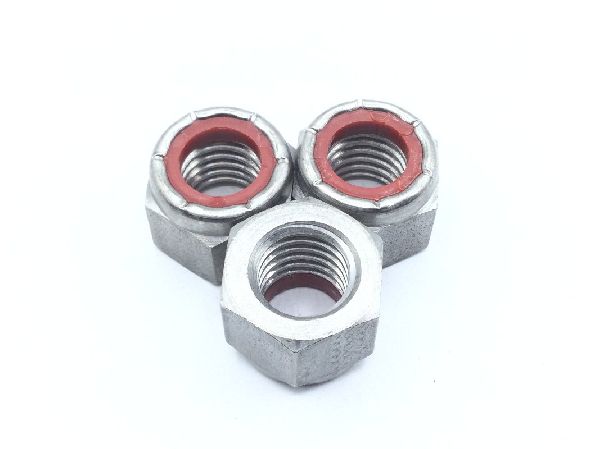

MS17830-8C Self-Locking Hexagon Nut

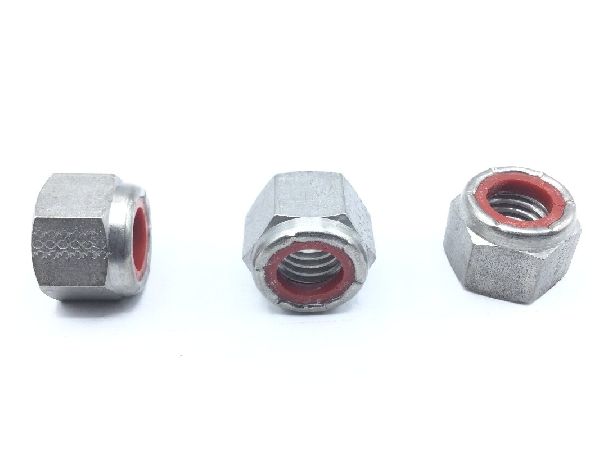

MS17830-8C Self-Locking Hexagon Nut (2)

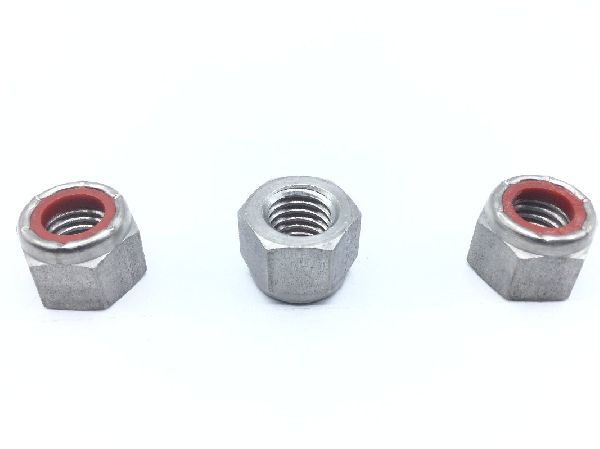

MS17830-8C Self-Locking Hexagon Nut (3)

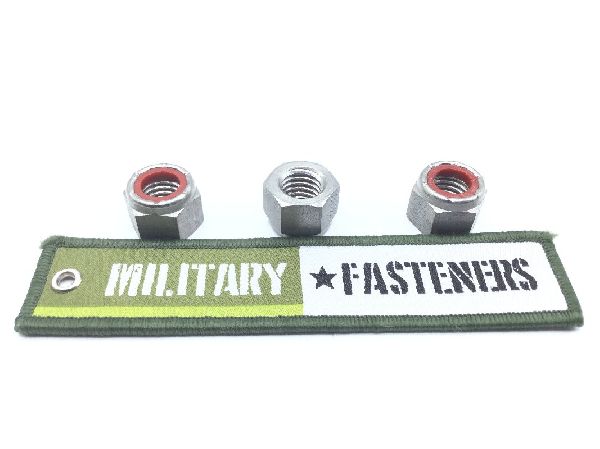

MS17830-8C Self-Locking Hexagon Nut (4)

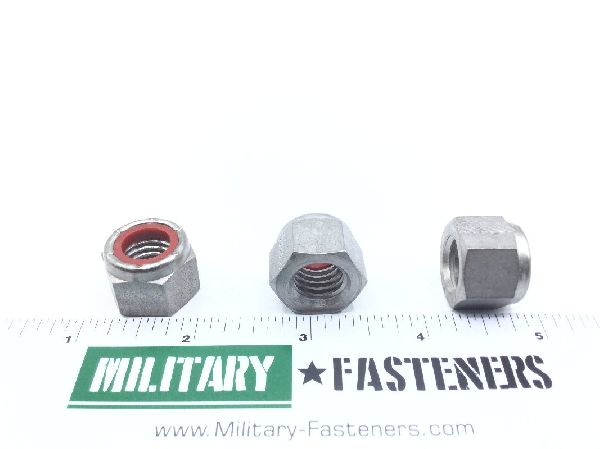

MS17830-8C Self-Locking Hexagon Nut (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS17830-8C Self-Locking Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $16.75

Units per Pack 5

Price per Pack $83.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $83.75

Add item to quote

Material

Plastic polyhexamethylene amide locking insert

Surface Treatment

Qq-p-35 federal specification single treatment response nut

Thread Class

3b

Thread Series

Unc (coarse thread)

Thread Size

0.500 inches

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Chamfered
Countersink Angle: 88.0 degrees nut
Locking Feature: Prevailing torque with nonmetallic insert
Material Specification: 66 federal standard all material responses nut
Nut Height: Between 0.575 inches and 0.610 inches
Nut Style: Hexagon
Tempurature Rating: 250.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 13
Width Across Flats: Between 0.741 inches and 0.752 inches
