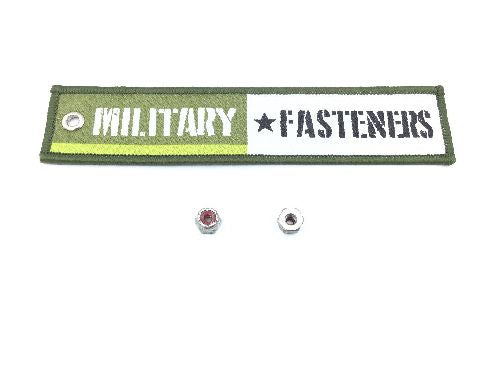

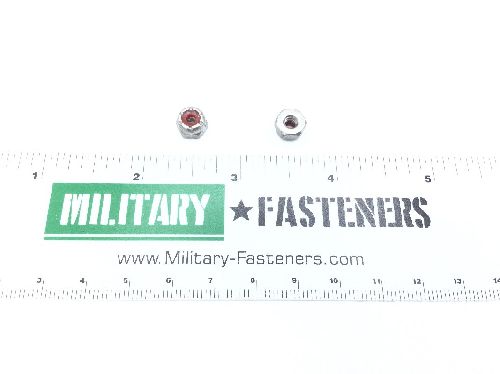

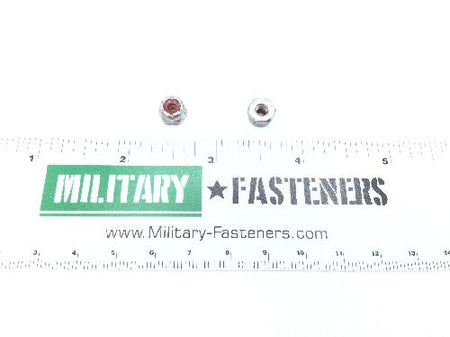

MS1783006C Self-Locking Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Surface Treatment

Qq-p-35 federal specification single treatment response nut

Thread Class

Thread Series

Unc (coarse thread)

Thread Size

0.138 inches

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Chamfered
Countersink Angle: 88.0 degrees nut
Height: Between 0.160 inches and 0.188 inches
Locking Feature: Prevailing torque with nonmetallic insert
Material Specification: Type 1 military specification single material response locking insert comp a mil-a-20693
Style: Hexagon
Tempurature Rating: 250.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Width Across Flats: Between 0.305 inches and 0.313 inches
