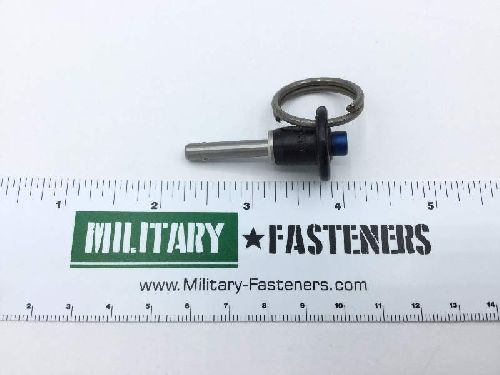

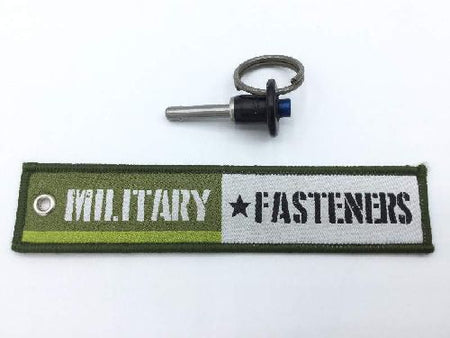

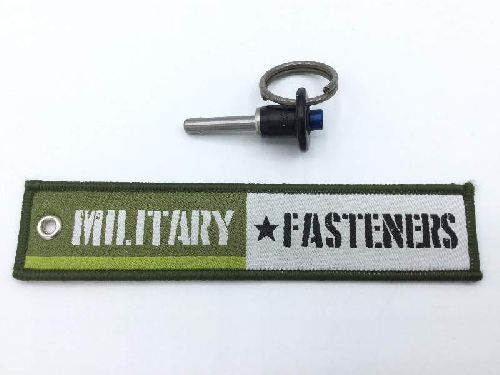

MS17984C307 Quick Release Pin

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Actuation Method: Push button
Actuation Type: Push
Button Handle Diameter: Between 0.72 inches and 0.8 inches
Detent Quantity: 2
Detent To Tapered End Distance: Between 0.230 inches and 0.260 inches
Grip Length: Between 0.700 inches and 0.720 inches
Hardness Rating: 40.0 rockwell c shank
Material Specification: Ams 5643 assn standard 1st material response spindle or ams 5657 assn standard 2nd material response spindle
Pin Attachment Type: Hook or ring
Shank Diameter: Between 0.1870 inches and 0.1885 inches
Shoulder To Head End Distance: 0.830 inches
Style Designator: Button
