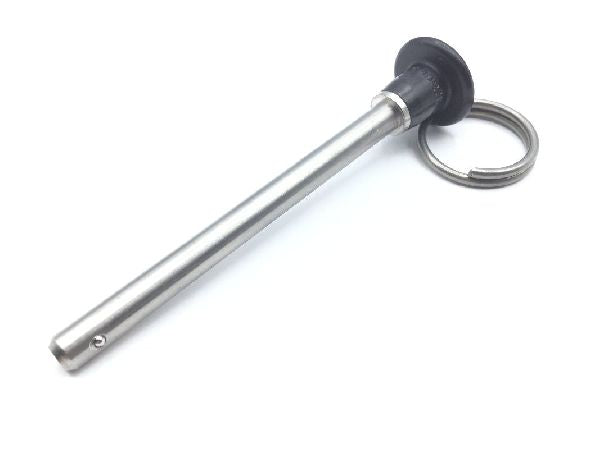

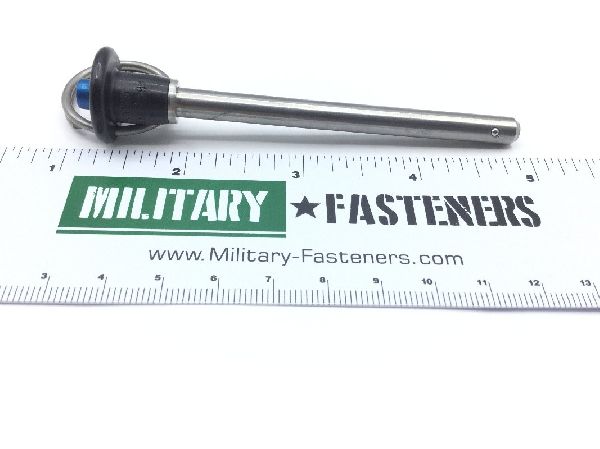

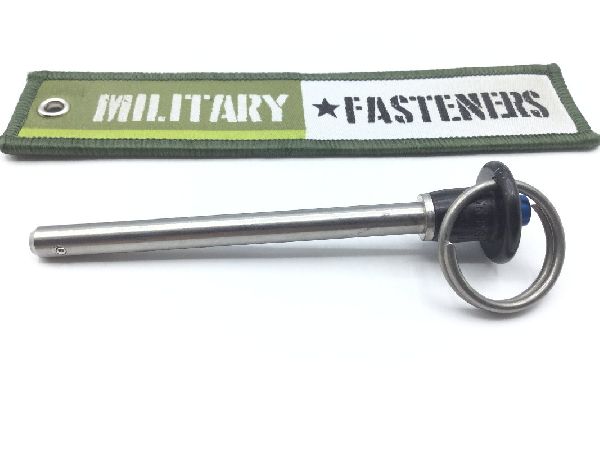

MS17984C427 Quick Release Pin

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Actuation Method: Push button
Actuation Type: Push
Button Handle Diameter: Between 0.720 inches and 0.800 inches
Detent Quantity: 2
Detent To Tapered End Distance: Between 0.260 inches and 0.290 inches
End Application: Stratofortress b-52 hornet f/a-18; ticonderoga class cg (47); aircraft mk26 (gmls); aircraft w/s:guided missile launc (coarse thread)hing system
Grip Length: Between 2.700 inches and 2.720 inches
Hardness Rating: 40.0 rockwell c shank
Material Specification: Ams 5643 assn standard 1st material response shank or ams 5657 assn standard 2nd material response shank
Pin Attachment Type: Hook or ring
Shank Diameter: Between 0.2470 inches and 0.2485 inches
Shoulder To Head End Distance: 0.890 inches
Style Designator: Button
